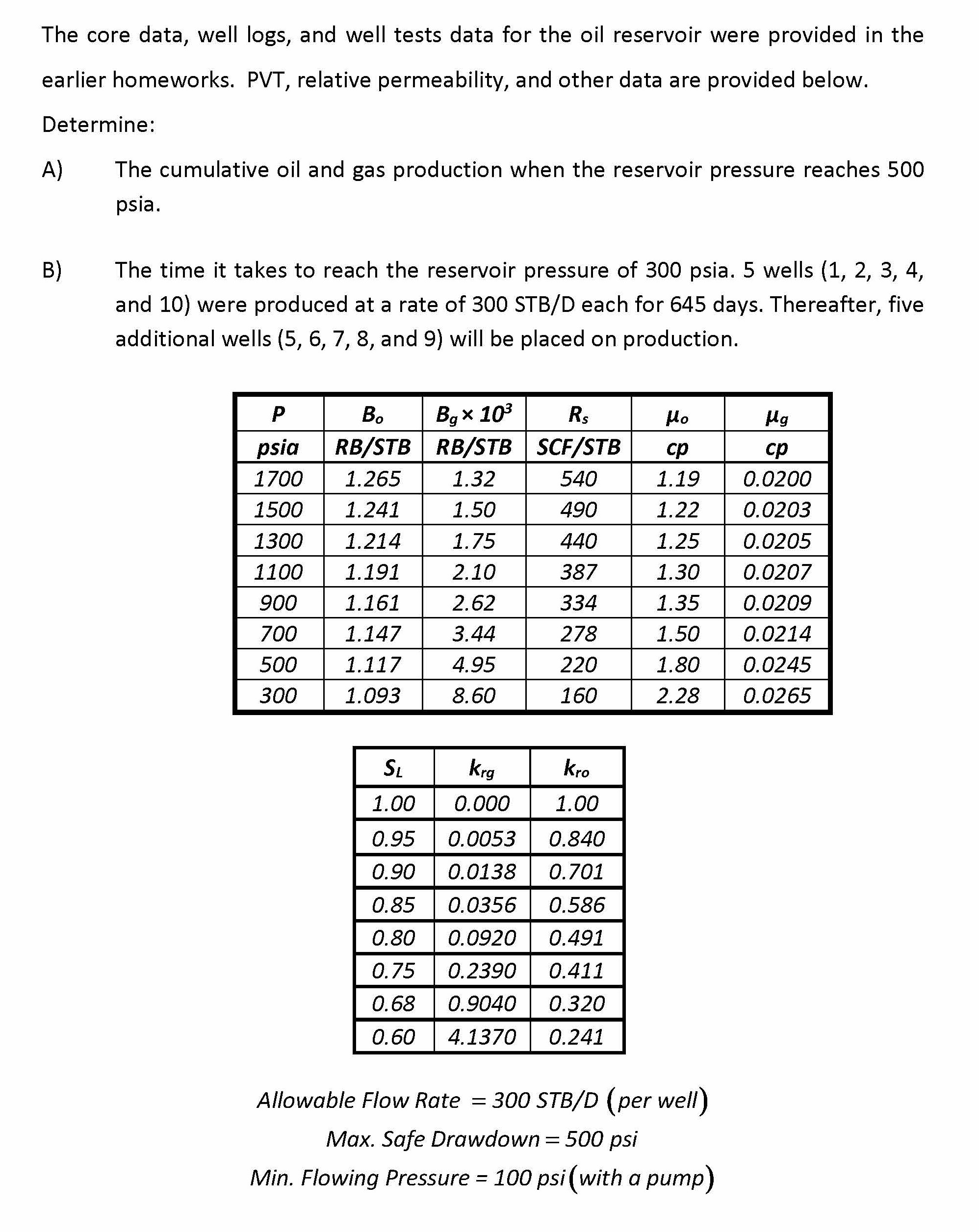

The core data, well logs, and well tests data for the oil reservoir were provided in the earlier homeworks. PVT, relative permeability, and other data are provided below. Determine: A) The cumulative oil and gas production when the reservoir pressure reaches 500 psia. B) The time it takes to reach the reservoir pressure of 300 psia. 5 wells (1, 2, 3, 4, and 10) were produced at a rate of 300 STB/D each for 645 days. Thereafter, five additional wells (5, 6, 7, 8, and 9) will be placed on production. P Bo Bax10³ Rs Ha psia RB/STB RB/STB SCF/STB cp cp 1700 1.265 1.32 540 1.19 0.0200 1500 1.241 1.50 490 1.22 0.0203 1300 1.214 1.75 440 1.25 0.0205 1100 1.191 2.10 387 1.30 0.0207 900 1.161 2.62 334 1.35 0.0209 700 1.147 3.44 278 1.50 0.0214 500 1.117 4.95 220 1.80 0.0245 300 1.093 8.60 160 2.28 0.0265 S1 krg kro 1.00 0.000 1.00 0.95 0.0053 0.840 0.90 0.0138 0.701 0.85 0.0356 0.586 0.80 0.0920 0.491 0.75 0.2390 0.411 0.68 0.9040 0.320 0.60 4.1370 0.241 Allowable Flow Rate - 300 STB/D (per well) Max. Safe Drawdown = 500 psi Min. Flowing Pressure = 100 psi(with a pump)

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:

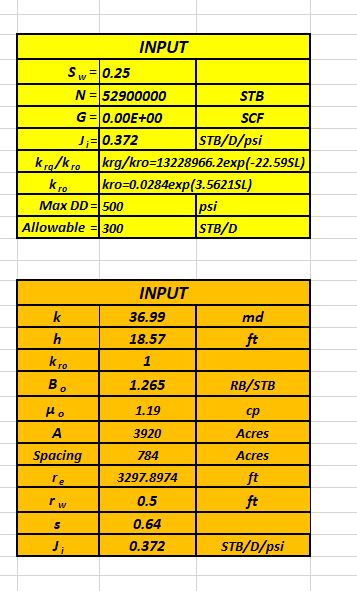

    Solution.xlsx.
