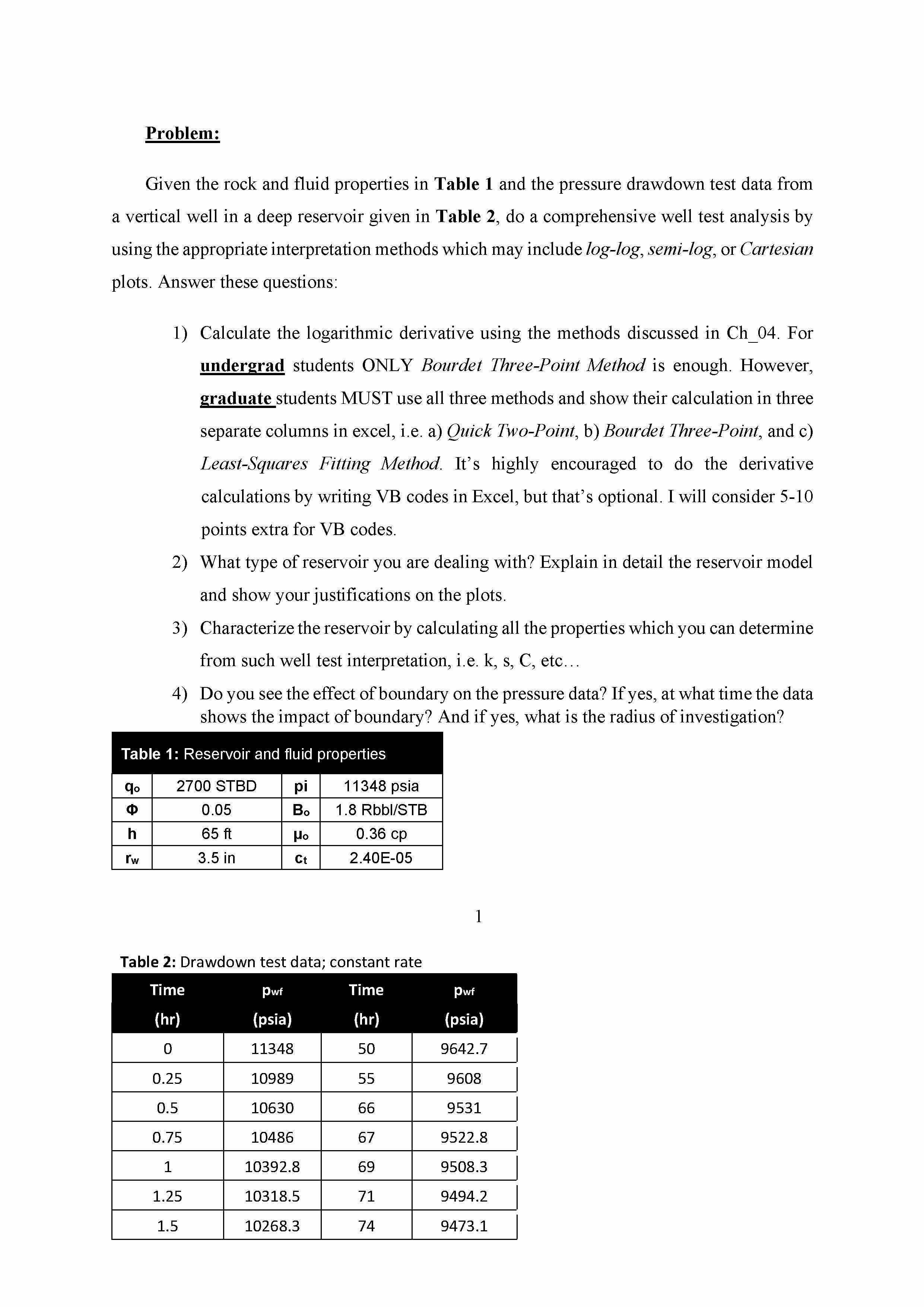

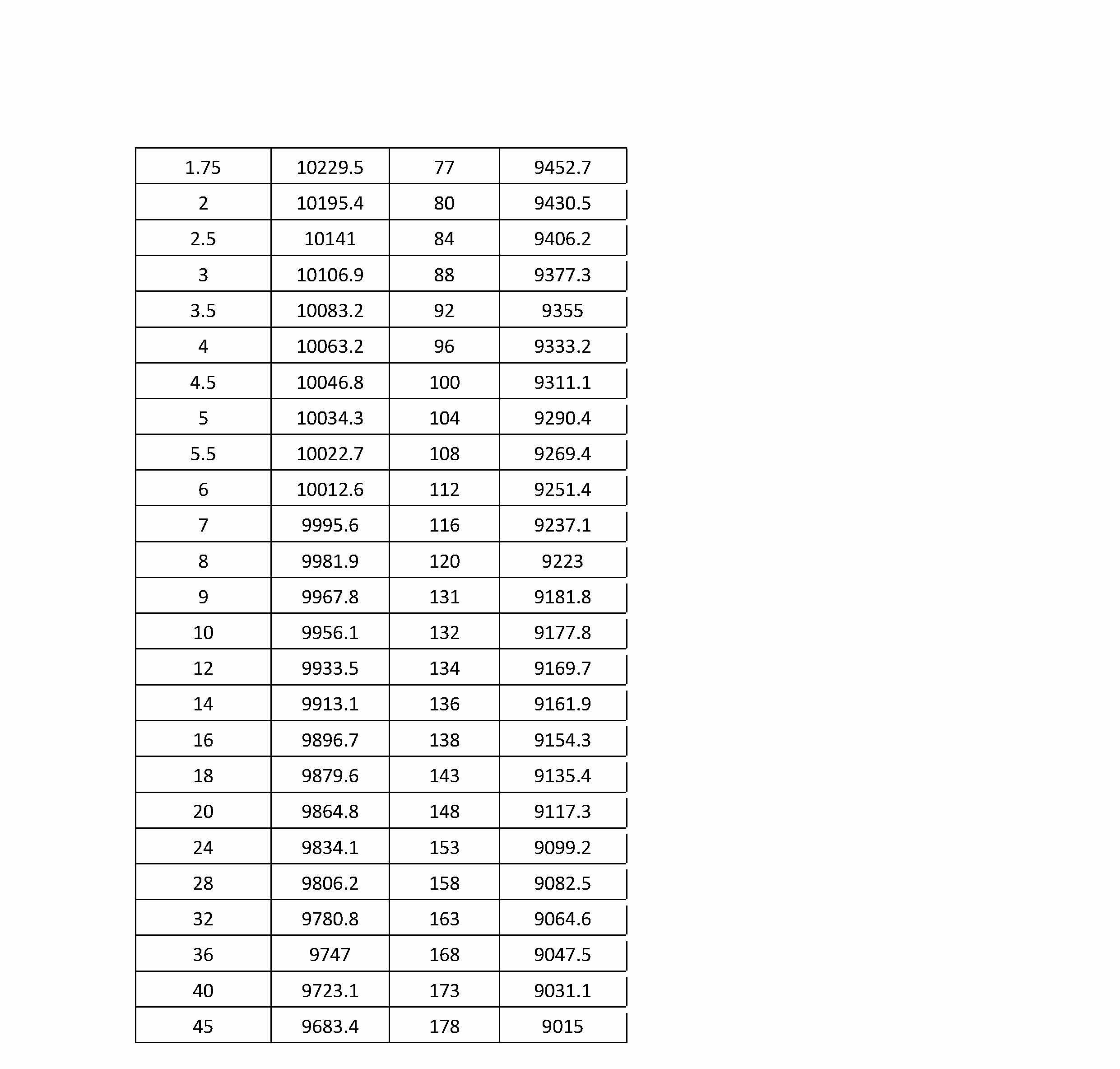

Problem: Given the rock and fluid properties in Table 1 and the pressure drawdown test data from a vertical well in a deep reservoir given in Table 2, do a comprehensive well test analysis by using the appropriate interpretation methods which may include log-log, semi-log, or Cartesian plots. Answer these questions: 1) Calculate the logarithmic derivative using the methods discussed in th_04. For undergrad students ONLY Bourdet Three-Point Method is enough. However, graduate students MUST use all three methods and show their calculation in three separate columns in excel, i.e. a) Quick Two-Point, b) Bourdet Three-Point, and c) Least-Squares Fitting Method. It's highly encouraged to do the derivative calculations by writing VB codes in Excel, but that's optional. will consider 5-10 points extra for VB codes. 2) What type of reservoir you are dealing with? Explain in detail the reservoir model and show your justifications on the plots. 3) Characterizethe reservoir by calculating all the properties which you can determine from such well test interpretation, i.e. k, S, C. etc. 4) Do you see the effect of boundary on the pressure data? If yes, at what time the data shows the impact of boundary? And if yes, what is the radius of investigation? Table 1: Reservoir and fluid properties qo 2700 STBD pi 11348 psia o 0.05 B. 1.8 Rbbl/STB h 65 ft 0.36 cp T= 3.5 i in C 2.40E-05 1 Table 2: Drawdown test data; constant rate Time Pat Time puf (hr) (psia) (hr) (psia) 11348 50 9642.7 0.25 10989 55 9608 0.5 10630 66 9531 0.75 10486 67 9522.8 1 10392.8 69 9508.3 1.25 10318.5 71 9494.2 1.5 10268.3 74 9473.1 1.75 10229.5 77 9452.7 2 10195.4 80 9430.5 2.5 10141 84 9406.2 3 10106.9 88 9377.3 3.5 10083.2 92 9355 4 10063.2 96 9333.2 4.5 10046.8 100 9311.1 5 10034.3 104 9290.4 5.5 10022.7 108 9269.4 6 10012.6 112 9251.4 7 9995.6 116 9237.1 8 9981.9 120 9223 9 9967.8 131 9181.8 10 9956.1 132 9177.8 12 9933.5 134 9169.7 14 9913.1 136 9161.9 16 9896.7 138 9154.3 18 9879.6 143 9135.4 20 9864.8 148 9117.3 24 9834.1 153 9099.2 28 9806.2 158 9082.5 32 9780.8 163 9064.6 36 9747 168 9047.5 40 9723.1 173 9031.1 45 9683.4 178 9015 2

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.xlsx.

    $38.00
    for this solution

    or FREE if you
    register a new account!

    PayPal, G Pay, ApplePay, Amazon Pay, and all major credit cards accepted.
