 # Motion Planning for A Simple Car In this project, you will develop...

## Question

Show transcribed text

## Transcribed Text

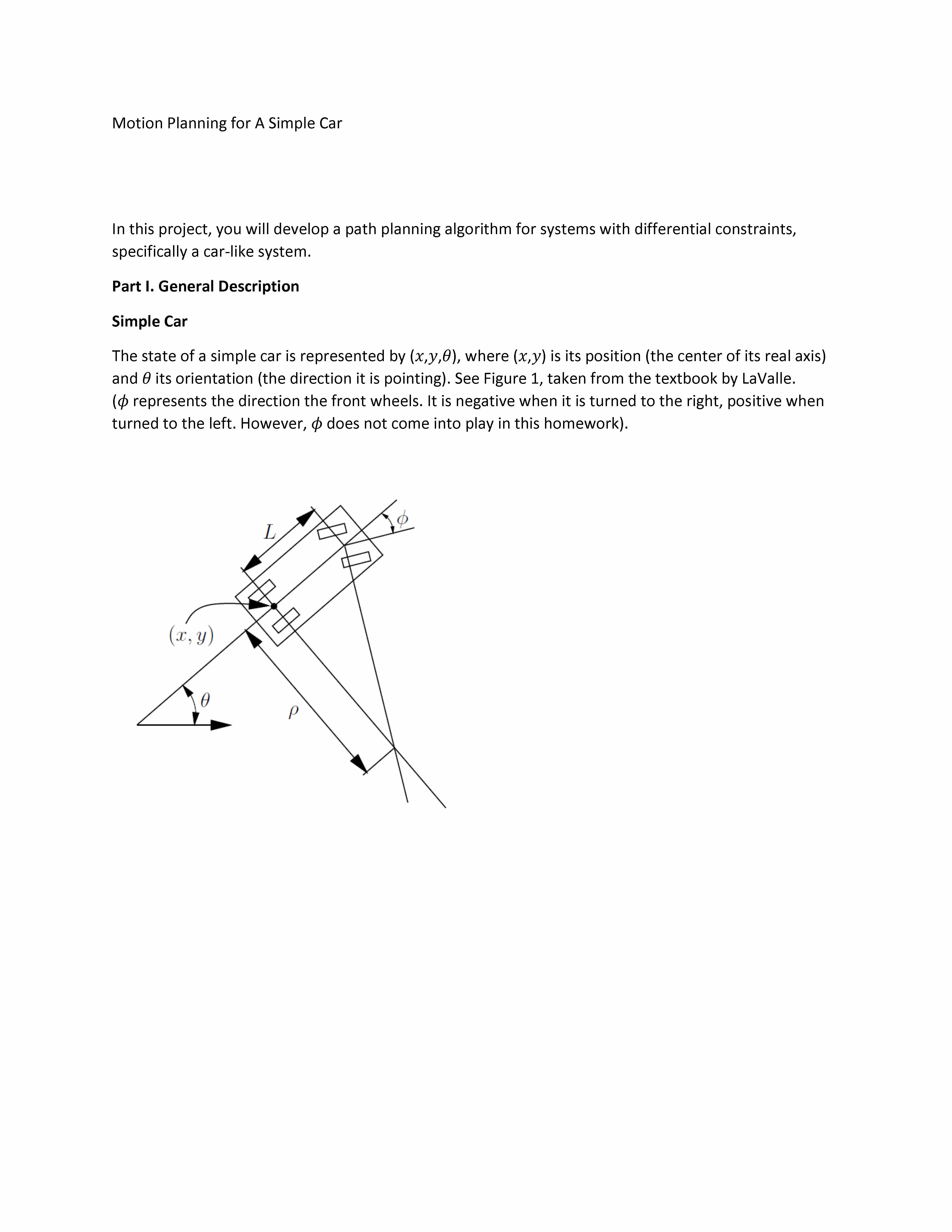

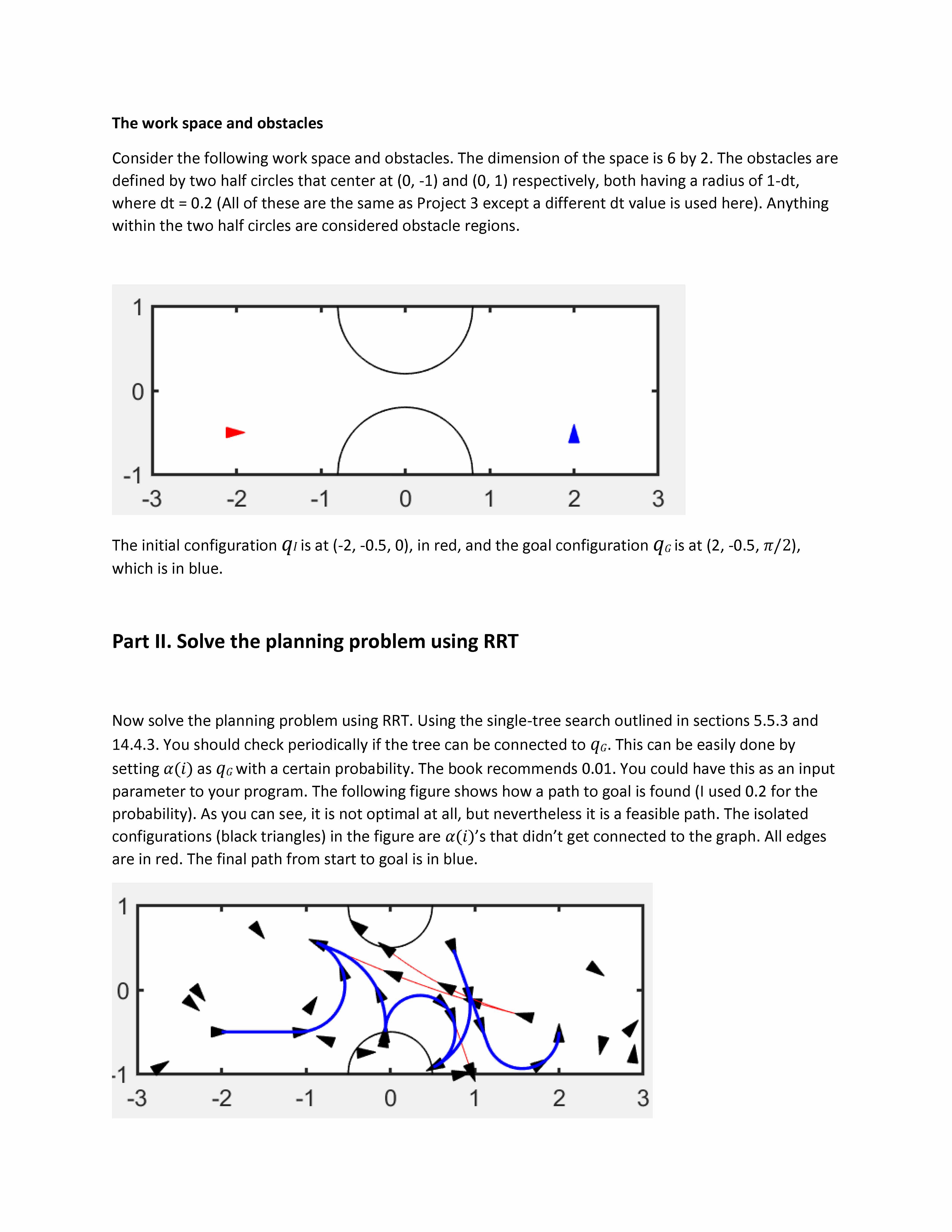

Motion Planning for A Simple Car In this project, you will develop a path planning algorithm for systems with differential constraints, specifically a car-like system. Part I. General Description Simple Car The state of a simple car is represented by (𝑥,𝑦,𝜃), where (𝑥,𝑦) is its position (the center of its real axis) and 𝜃 its orientation (the direction it is pointing). See Figure 1, taken from the textbook by LaValle. (𝜙 represents the direction the front wheels. It is negative when it is turned to the right, positive when turned to the left. However, 𝜙 does not come into play in this homework). The work space and obstacles Consider the following work space and obstacles. The dimension of the space is 6 by 2. The obstacles are defined by two half circles that center at (0, -1) and (0, 1) respectively, both having a radius of 1-dt, where dt = 0.2 (All of these are the same as Project 3 except a different dt value is used here). Anything within the two half circles are considered obstacle regions. The initial configuration 𝑞𝐼 is at (-2, -0.5, 0), in red, and the goal configuration 𝑞𝐺 is at (2, -0.5, 𝜋/2), which is in blue. Part II. Solve the planning problem using RRT Now solve the planning problem using RRT. Using the single-tree search outlined in sections 5.5.3 and 14.4.3. You should check periodically if the tree can be connected to 𝑞𝐺. This can be easily done by setting 𝛼(𝑖) as 𝑞𝐺 with a certain probability. The book recommends 0.01. You could have this as an input parameter to your program. The following figure shows how a path to goal is found (I used 0.2 for the probability). As you can see, it is not optimal at all, but nevertheless it is a feasible path. The isolated configurations (black triangles) in the figure are 𝛼(𝑖)’s that didn’t get connected to the graph. All edges are in red. The final path from start to goal is in blue. Here is another solution: In applying RRT, you would need the following (see section 14.3): In applying RRT, you would need the following (see section 14.3): 1- a way to sample the state space. You should sample 𝜃 in the range of [0, 2𝜋). 2- a distance metric that can determine the nearest neighbor. This can be determined by which configuration has the shortest driving distance to 𝛼(𝑖), ignoring obstacles. 3- a collision detection that checks if there is any collision. Currently, our car robot is just a point with a direction (like pointed triangles shown in the figure above). So, collision checking is easy. 4- a local planner method (LPM) that returns a path that connects two vertices, or an empty path if the two vertices cannot be connected. The last component is a BVP problem and is often challenging. The figure below shows one way we can connect two configurations (𝑥1, 𝑦1, 𝜃1) and (𝑥2, 𝑦2, 𝜃2). We first extend lines along the directions they are pointing. This will give us an intersection point (𝑥𝑚, 𝑦𝑚). Assuming without loss of generality that the distance between (𝑥𝑚, 𝑦𝑚) and (𝑥2, 𝑦2) is greater. Find another point (𝑥2′, 𝑦2′) that is equidistant to (𝑥𝑚, 𝑦𝑚) as (𝑥1,𝑦1) (see Figure below). Draw two dashed lines perpendicular to the two-line segments as shown. The intersection of the two dashed lines are the turning center. 𝑟 is the turning radius. Finally, the path connecting configurations (𝑥1,𝑦1,𝜃1) to (𝑥2,𝑦2,𝜃2) is the arc path from (𝑥1,𝑦1) to (𝑥2′,𝑦2′) , followed the line segment from (𝑥2′,𝑦2′) to (𝑥2,𝑦2). And it is a reverse motion. There are two conditions which may invalidate this path. One is when the car is pointing at opposite directions at configurations (𝑥1,𝑦1,𝜃1) to (𝑥2,𝑦2,𝜃2) .The other is that 𝑟 < 𝑟_min, the minimum turning radius. For your convenience, I have included my MATLAB implementation of such a local planner (called LPM.m). It takes four parameters, the first two of which are the two configurations to be connected. The third and fourth parameters are minimum turning radius rMin and stepSize (the step size taken in discretizing a path) respectively. For this project, use rMin=0.4, stepSize = 0.02. The LPM.m script returns a sequence of configurations, a path, if it exists. Part III. Use PRM (section 5.6) to solve the planning problem. Please use the PRM algorithm described in Figure 5.25 in the textbook to solve the same planning problem given above. As for the number of nodes N, try a different value until you can solve the problem. When connecting to the nodes in the neighborhood, use Nearest K and set K = 15.

## Solution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

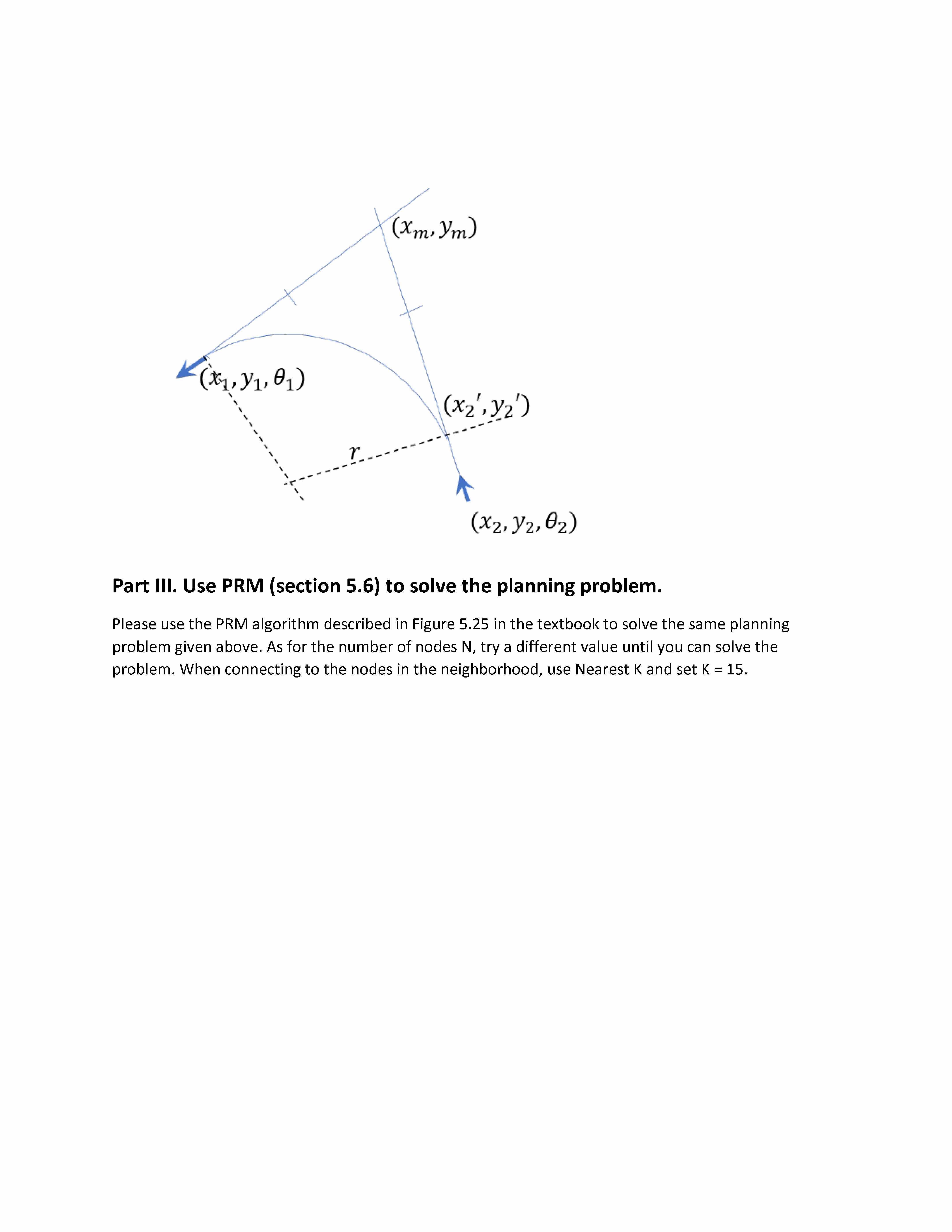

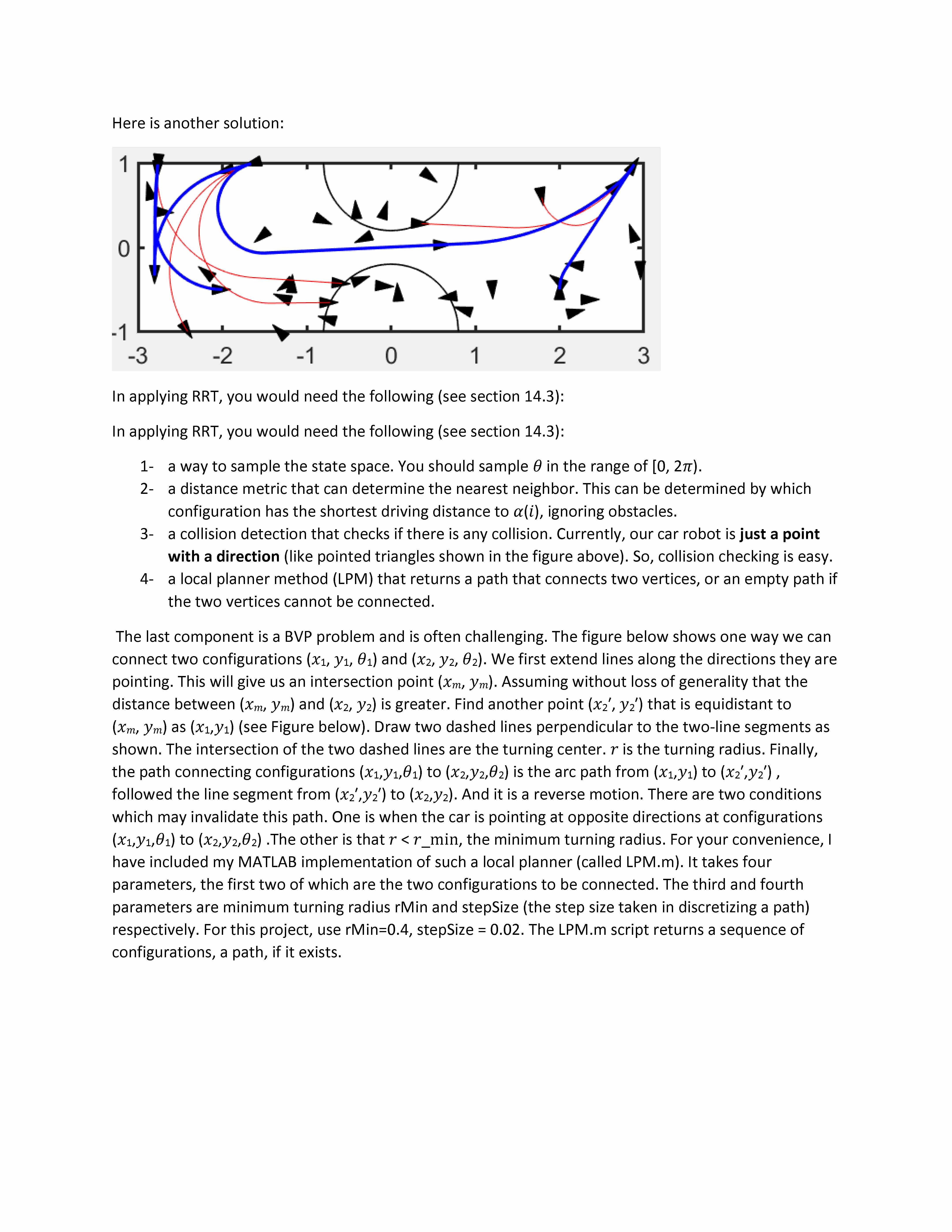

function [path] = arcPath(q1, mid, q2, rMin, resolution)
% compute an arc that is tangent to line segment (q1, mid) at q1 and line segment (mid, q2) at q2.
% assuming q1 and q2 have the same distance to mid.
% rMin: minimum turning radius
% resolution: path resolution
% path: a discretized arc path segment between q1 and q2. It is empty if the radius of the arc is less than rMin.
r1 = q1(1:2) - mid;
r2 = q2(1:2) - mid;
pc = (q1(1:2)+q2(1:2))/2;
rc = pc - mid;
%theta = asin(norm(rc)/norm(r1));
dist2center = norm(r1)^2/norm(rc);
center = mid + rc/norm(rc)*dist2center;
if radius < rMin
path = [];
return;
end
dp = [q1(1:2) - center; q2(1:2) - center];
theta = atan2(dp(:,2), dp(:,1));
dt = mod(theta(2) - theta(1), 2*pi);
if dt >= pi
dt = dt-2*pi;
end
steps = ceil...
