QuestionQuestion

Transcribed TextTranscribed Text

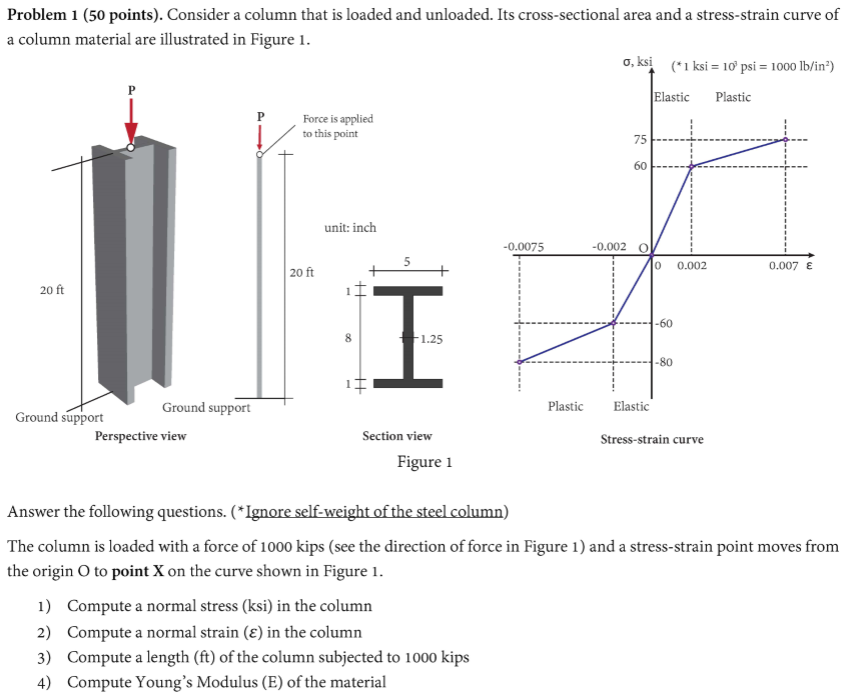

Problem 1 (50 points). Consider a column that is loaded and unloaded. Its cross-sectional area and a stress-strain curve of a column material are illustrated in Figure 1. o, ksi (* 1 ksi = 10³ psi = 1000 lb/in2) P Elastic Plastic P Force is applied to this point 75 60 unit: inch -0.0075 -0.002 o 5 + 20 ft 0.002 0.007 € 20 ft 1 -60 8 t 1.25 -80 1 Ground support Plastic Elastic Ground support Perspective view Section view Stress-strain curve Figure 1 Answer the following questions. (*Ignore self-weight of the steel column) The column is loaded with a force of 1000 kips (see the direction of force in Figure 1) and a stress-strain point moves from the origin o to point x on the curve shown in Figure 1. 1) Compute a normal stress (ksi) in the column 2) Compute a normal strain (£) in the column 3) Compute a length (ft) of the column subjected to 1000 kips 4) Compute Young's Modulus (E) of the material Unloading occurs from point X on the diagram. When the load has been entirely removed (o=0 ksi) 5) Compute a length (ft) of the column Reloading then begins at stress = zero and continues to a compressive stress of 70 ksi (let's call it point A). 6) Compute a force applied to the column resulting in a compressive stress of 70 ksi 7) Compute a length (ft) of the column 1 Unloading then begins at point A on the diagram. When the load has been entirely removed (0=0 ksi) 8) Compute an elastic recovery 9) Compute a residual strain 10) Compute a length (ft) of the column Problem 2 (40 points). A column having two different cross-sectional areas is shown in Figure 2. The column is subjected to two concentrated forces. A stress and strain curve of a material used for the column is illustrated in Figure 2. o, ks 1 ksi - 10 psi - 1000 lb/in²) 1400 kips unit: inch Elastic Plastic 1400 kips Force is applied 5 + to each point if 75 60 8 1.25 A A 5 ft I 5 ft 00 kips 3280 Kips Section A -0.0075 -0.002 O 7.5 + 0.002 0.007 E 2 B B 5 ft 60 5 ft 10 -3 -80 Ground support 2 Ground support Section B Plastic Elastic Perspective view Simplified loading conditions Section view Stress-strain curve Figure 2 Answer the following questions. (* Ignore self-weight of the steel column) 1) Compute a length (ft) of the column 2) When the two loads are completely removed, then what is the permanent length (ft) of the column?

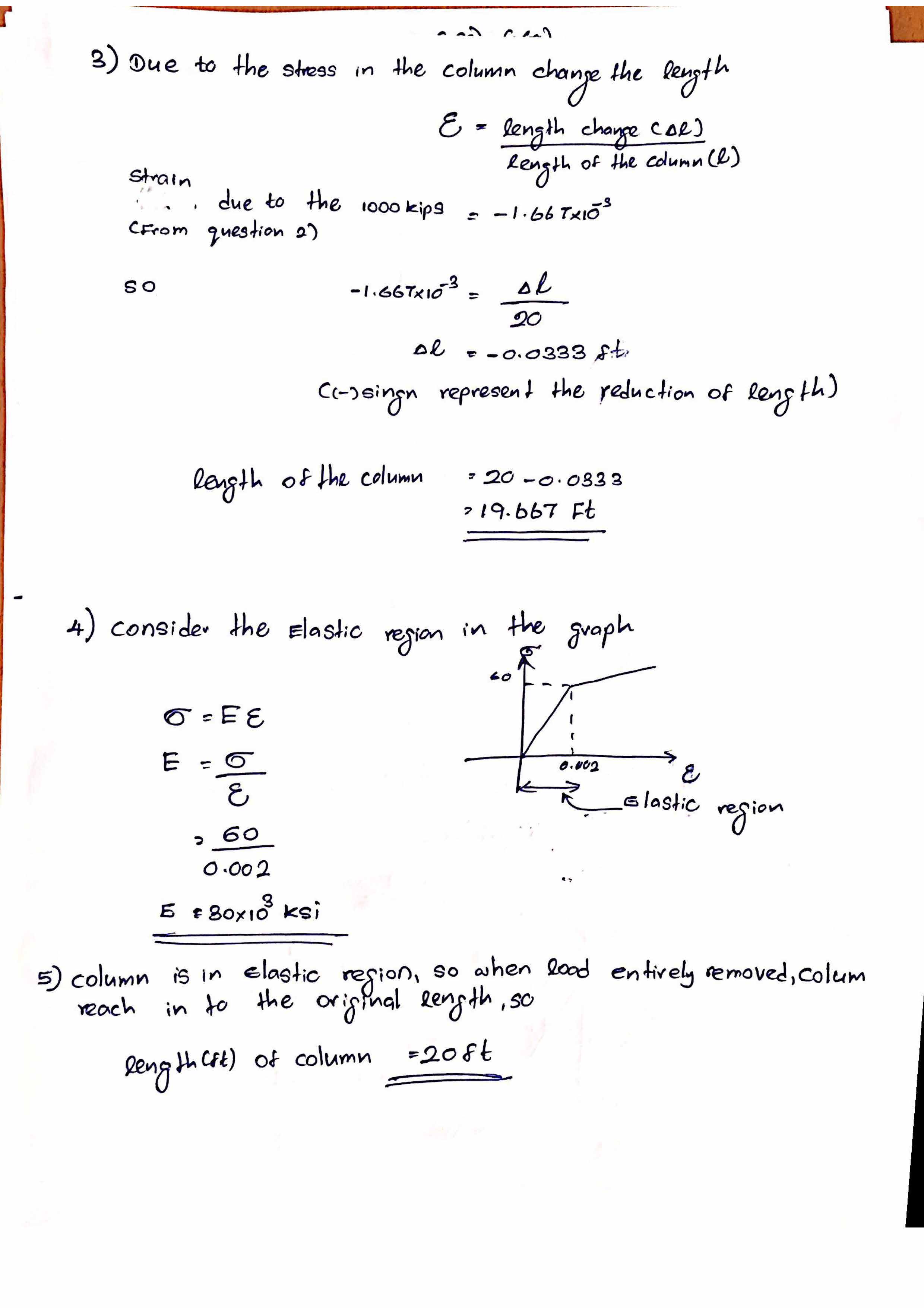

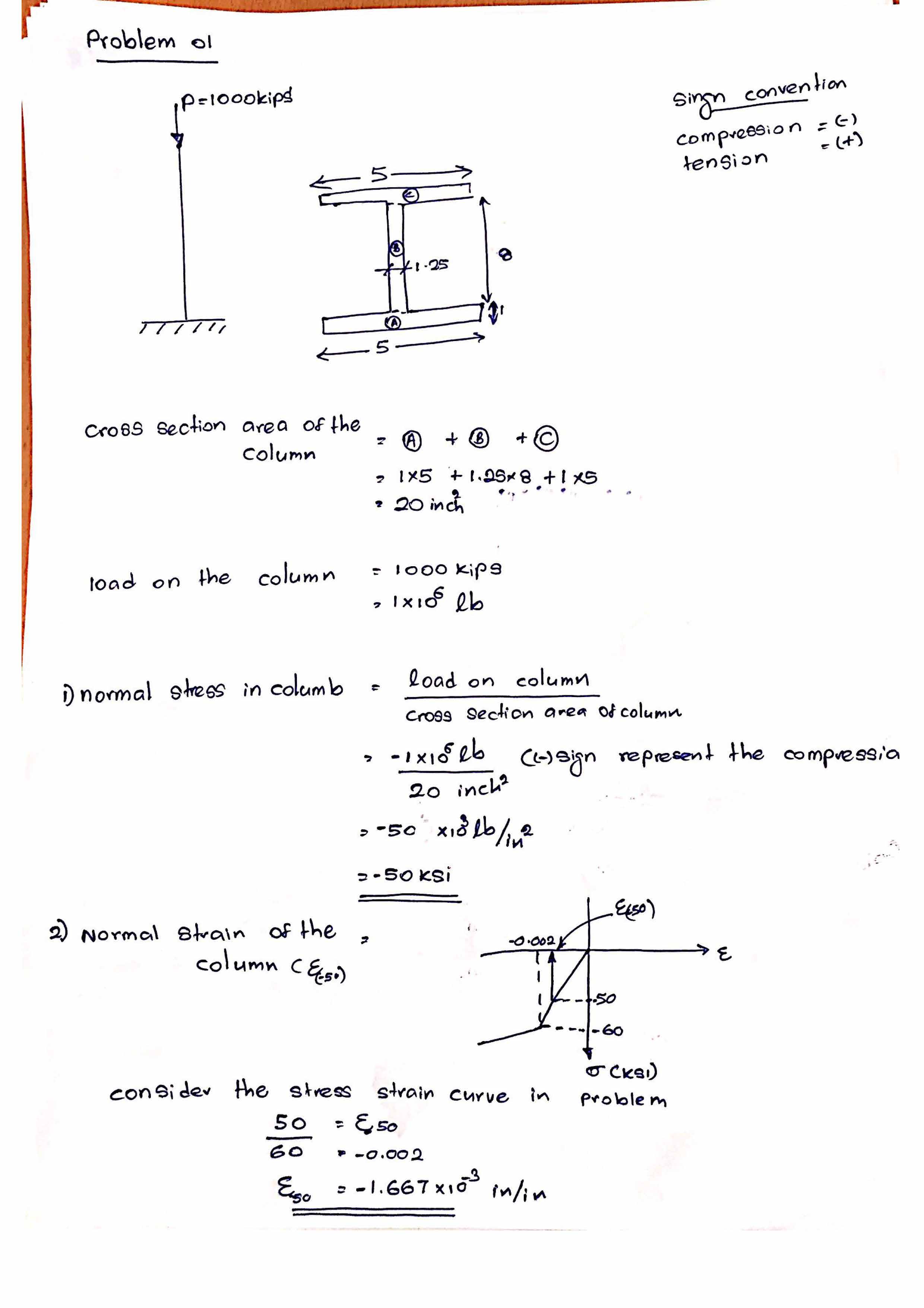

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.

    $38.00
    for this solution

    PayPal, G Pay, ApplePay, Amazon Pay, and all major credit cards accepted.
