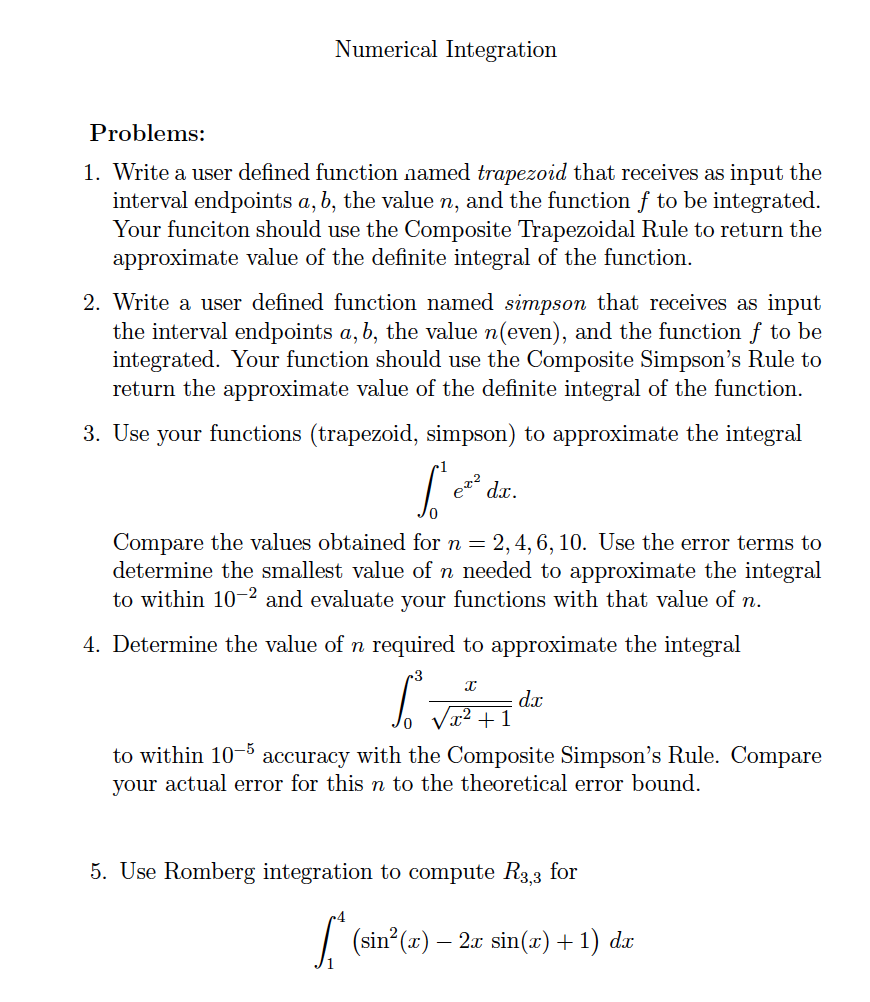

Numerical Integration Problems: 1. Write a user defined function named trapezoid that receives as input the interval endpoints a, b, the value n, and the function f to be integrated. Your funciton should use the Composite Trapezoidal Rule to return the approximate value of the definite integral of the function. 2. Write a user defined function named simpson that receives as input the interval endpoints a, b, the value n(even), and the function f to be integrated. Your function should use the Composite Simpson’s Rule to return the approximate value of the definite integral of the function. 3. Use your functions (trapezoid, simpson) to approximate the integral ∫ 1 0 e x 2 dx. Compare the values obtained for n = 2, 4, 6, 10. Use the error terms to determine the smallest value of n needed to approximate the integral to within 10 −2 and evaluate your functions with that value of n. 4. Determine the value of n required to approximate the integral ∫ 3 0 x √ x 2 + 1 dx to within 10 −5 accuracy with the Composite Simpson’s Rule. Compare your actual error for this n to the theoretical error bound. 1 5. Use Romberg integration to compute R3,3 for ∫ 4 1 ( sin 2 (x) − 2x sin(x) + 1 ) dx 2 Powered by TCPDF (www.tcpdf.org) Powered by TCPDF (www.tcpdf.org) Powered by TCPDF (www.tcpdf.org) Powered by TCPDF (www.tcpdf.org)

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

function Solution()
clear all
clc
close all
disp('----------Question 3-------------')
%syms x
%Iexact=double(int(exp(x^2),x,0,1));

n=[2 4 6 10];
f=@(t)exp(t.^2);
for i=1:3
    ErrorSimpson(i)=Simpson(f,0,1,n(i+1))-Simpson(f,0,1,n(i));
    ErrorTrapezoid(i)=Trapezoid(f,0,1,n(i+1))-Trapezoid(f,0,1,n(i));
end
ErrorSimpson=ErrorSimpson
ErrorTrapezoid=ErrorTrapezoid

%determine the smallest i such that abs(ErrorTrapezoid(i))>10^(-2)
it=3; err=1;%initialize
while abs(err)>10^(-2)
    err=Trapezoid(f,0,1,it)-Trapezoid(f,0,1,it-1);
    it=it+1;
end...
