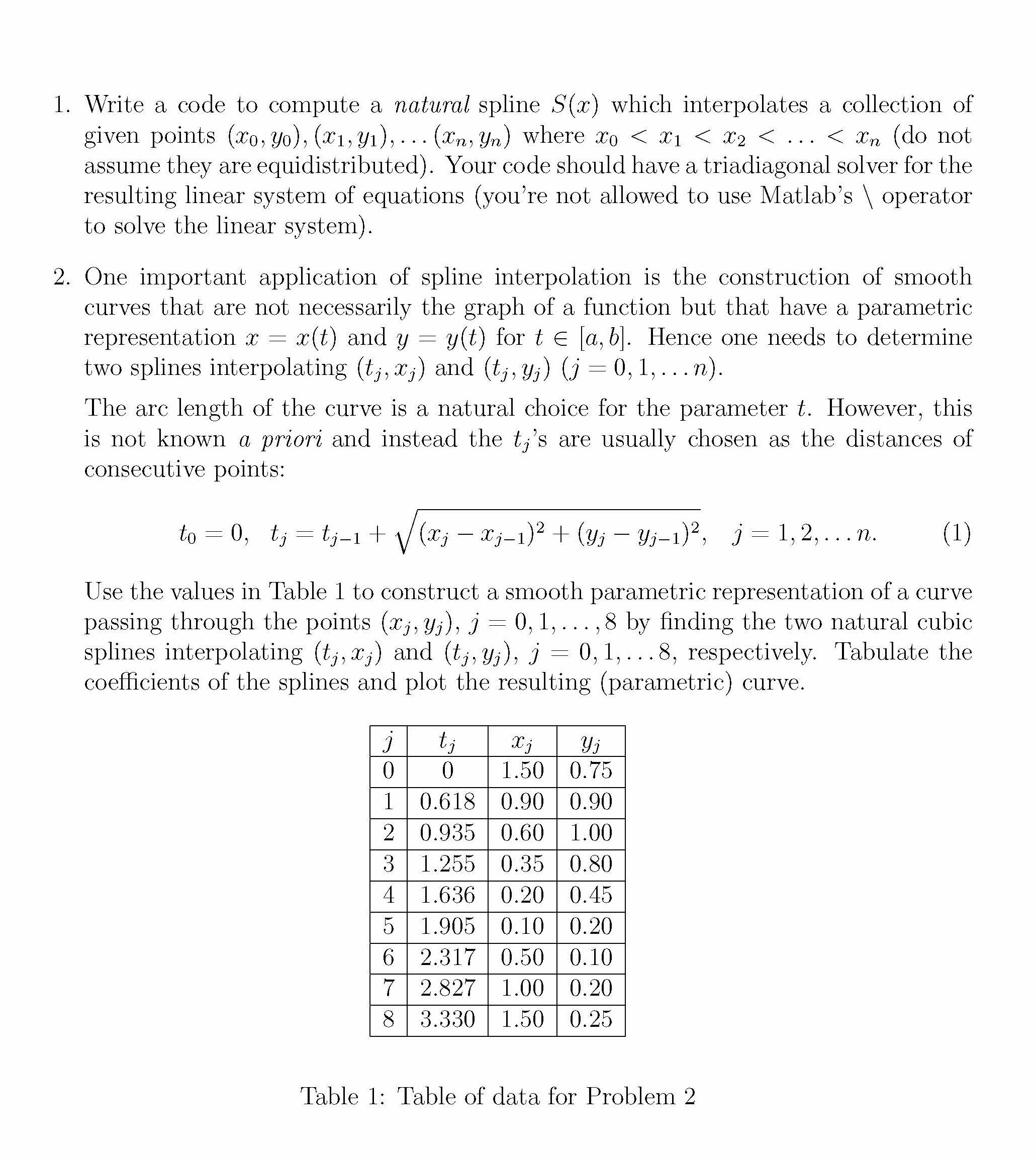

1. Write a code to compute a natural spline S(x) which interpolates a collection of given points (o,yo), (=1,yr) (xn,yn) where To < 21 < X2 < < In (do not assume they are equidistributed). Your code should have a triadiagonal solver for the resulting linear system of equations (you're not allowed to use Matlab's \ operator to solve the linear system). 2. One important application of spline interpolation is the construction of smooth curves that are not necessarily the graph of a function but that have a parametric representation I = =(() and y = y(t) for t E [a,b]. Hence one needs to determine two splines interpolating (tz,I;) and (t;,Y;) G = 0,1 n). The are length of the curve is a natural choice for the parameter t. However, this is not known a priori and instead the if's are usually chosen as the distances of consecutive points: to = = (1) Use the values in Table 1 to construct a smooth parametric representation of a curve passing through the points (xj,yj), j = 0, 1, 8 by finding the two natural cubic splines interpolating (t;,If) and 11,45). , = 0, 8, respectively. Tabulate the coefficients of the splines and plot the resulting (parametric) curve. i t; Ij Yj 1.50 0.75 1 0.618 0.90 0.90 2 0.935 0.60 1.00 3 1.255 0.35 0.80 4 1.636 0.20 0.45 5 1.905 0.10 0.20 6 2.317 0.50 0.10 7 2.827 1.00 0.20 8 3.330 1.50 0.25 Table 1: Table of data for Problem 2

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

function [ynew,a,b,c,d] = NatSpline(x,y,xnew)
% ynew = NatSpline(x,y)
% Natural spline interpolation.
% x,y are column n-vectors.
% Assume that n >= 4 and x(1) < ... x(n).
% xnew -- is a set of points in the interval x(1) to x(n) for which
% the natural spline needs to be evaluated.
% On the i-th interval [x(i),x(i+1)] the spline has the form:
% S(z) = a(i) + b(i)(z-x(i)) + c(i)(z-x(i))^2 + d(i)(z-x(i))^2(z-x(i+1).
%
% Outputs:
% ynew -- the values of the natural spline evaluated at the points xnew.
% a,b,c,d,-- the vector of coefficients of the splines
% Usage:
%   [ynew,a,b,c,d] = NatSpline(x,y,xnew)


% First, set up all but the first and last equations that
% define the vector of interior slopes s(2:n-1).

n = length(x);
Dx = diff(x);
yp = diff(y) ./ Dx;
T = zeros(n-2,n-2);
r = zeros(n-2,1);
for i=2:n-3
   T(i,i)   = 2*(Dx(i) + Dx(i+1));
   T(i,i-1) = Dx(i+1);
   T(i,i+1) = Dx(i);
   r(i)    = 3*(Dx(i+1)*yp(i) + Dx(i)*yp(i+1));
end

T(1,1) = 2*Dx(1) + 1.5*Dx(2);
T(1,2) = Dx(1);
r(1) = 1.5*Dx(2)*yp(1) + 3*Dx(1)*yp(2);
T(n-2,n-2) = 1.5*Dx(n-2)+2*Dx(n-1);
T(n-2,n-3) = Dx(n-1);
r(n-2) = 3*Dx(n-1)*yp(n-2) + 1.5*Dx(n-2)*yp(n-1);
%we now need to solve
%stilde = T\r;
A=diag(T);
B=zeros(size(A));
for i=2:n-2
    B(i)=T(i,i-1);
end
C=zeros(size(A));
for i=1:n-3
    C(i)=T(i,i+1);
end

%call the tri diagonal solver: (below)
stilde=tridiag( A, B, C, r );

s1 = (3*yp(1) - stilde(1));
sn = (3*yp(n-1) - stilde(n-2));
s = [s1;stilde;sn];


% Compute the a,b,c,d vector of coefficients for the splines.

a = y(1:n-1);
b = s(1:n-1);
c = (yp - s(1:n-1)) ./ Dx;
d = (s(2:n) + s(1:n-1) - 2*yp) ./ (Dx.* Dx);

%next evaluate at the points xnew to obtain the values ynew


for j=1:length(xnew)
    x_val=xnew(j);...
