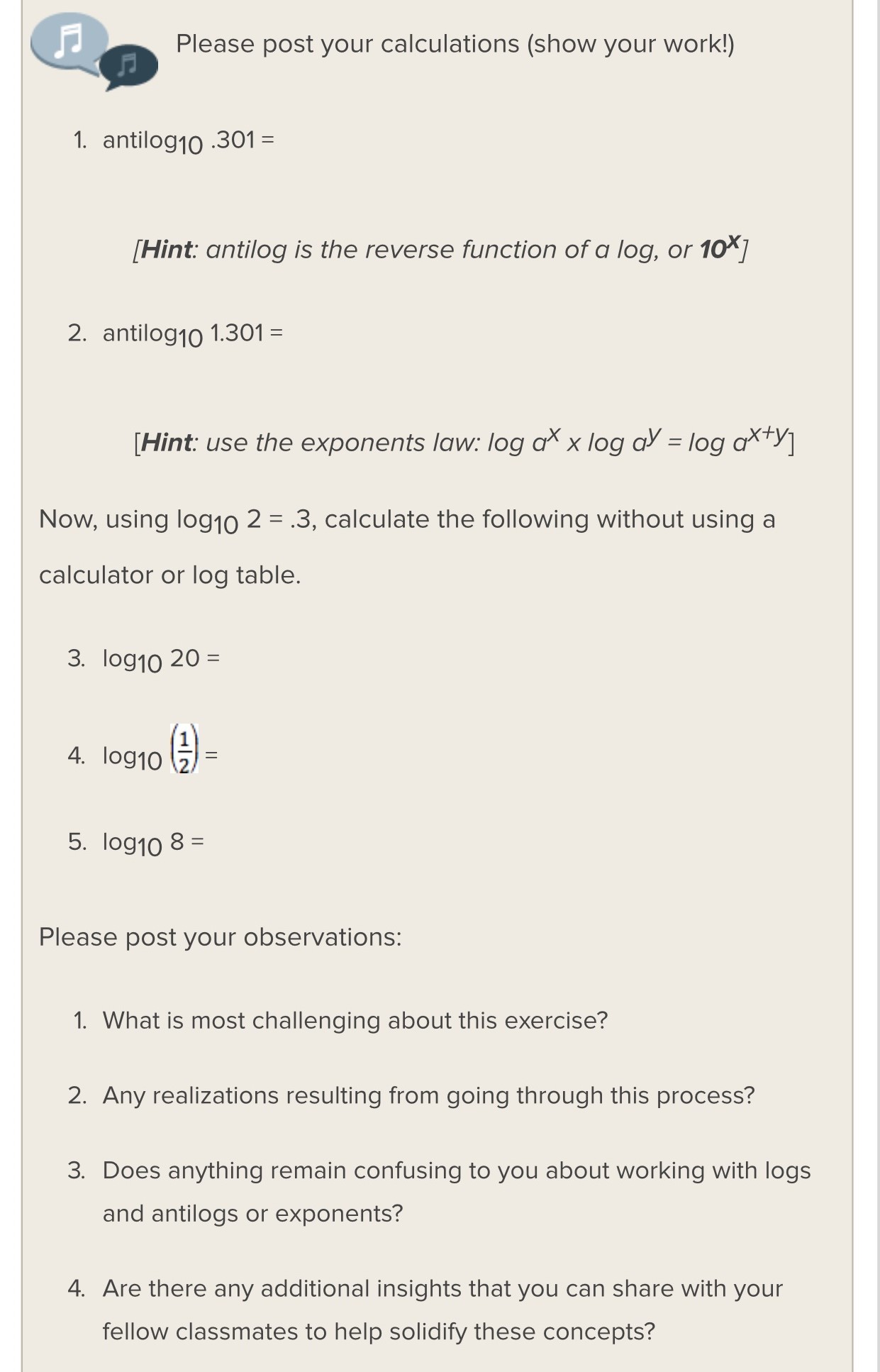

Please post your calculations (show your work!) 1. antilog10 301 = [Hint: antilog is the reverse function of a log, or 10*] 2. antilog10 1.301 - [Hint: use the exponents law: log ax X log as = log ax+y Now, using log10 2 .3, calculate the following without using a calculator or log table. 3. log10 20 = 4. log10 (2) = 5. log10 8 = Please post your observations: 1. What is most challenging about this exercise? 2. Any realizations resulting from going through this process? 3. Does anything remain confusing to you about working with logs and antilogs or exponents? 4. Are there any additional insights that you can share with your fellow classmates to help solidify these concepts? For your final assignment this week, you will work out the following problems. Please show all your work. No credit will be given for incomplete answers. Using log10 2 3, solve the following without using a calculator or log table. Please show your work! 1. log10 40 = 2. log1o (4) 3. log1o 16 = The signal-to-noise ratio of a digital audio system can be derived from the following formula: SNRdB 20 log 2n [n number of bits per sample] 4. Simplify this expression to show that the signal to noise ratio can be expressed as 6n. Electrical power can be expressed in decibels using the following formula: PdB 10 log1o (i) [P, Pret power (watts)] 5. If Prof .001 watts, what is the power in dB when P = watt? The output of an audio amplifier can be compared to its input using the following formula: (Vout AVdE 20 log1o Vin / (Vour Vin = voltage (volts), AV change in voltage] 6. Show that AV is always equal to 6 dB if the output is twice the voltage of the input. Using our decibel equations and a scientific calculator when necessary, solve the following. Please show your work! 7. The input to an audio amplifier is known to be 2.5 watts, and the output is 25 watts. What is the gain of the amplifier in dB? 8. The output of an amplifier is half the power of the input. Express the output in dB, relative to the input. 9. How much voltage would appear at the output of a compressor indicating 7 dB gain reduction, if the input was 1.22 volts? 10. An audio signal passes through two devices, each doubling its input voltage. What is the gain of the entire system, in dB? EXTRA CREDIT Two audio devices are placed in series such that: Vlout GF 20 log Vlin [G1 gain of device one] V2out G2= 20 log V2in [G2= gain of device two] Show that G3= G++ G2, [G3= gain of device one and device two in series]. Hint: use the rule for expressing the log of a product as the sum of two logs.)

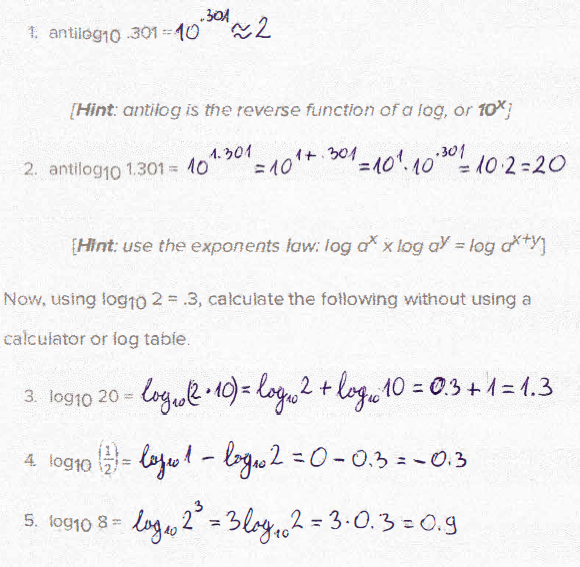

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

Sound Level, Power And Voltage Problems
    $10.00 for this solution
