## Transcribed Text

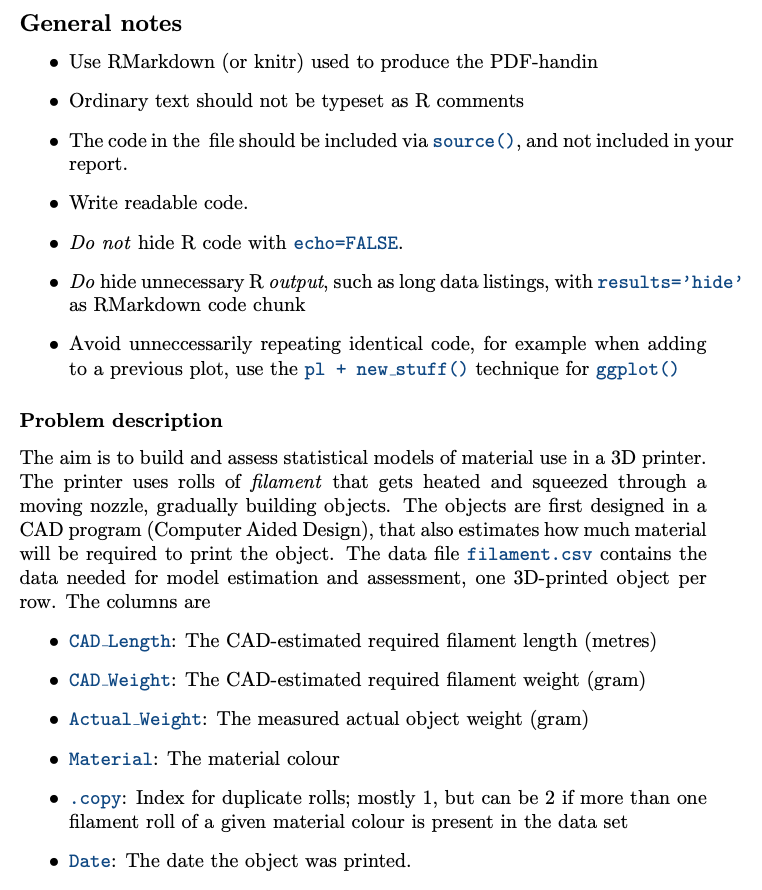

General notes
• Use RMarkdown (or knitr) used to produce the PDF-handin
• Ordinary text should not be typeset as R comments
• The code in the file should be included via source(), and not included in your
report.
• Write readable code.
• Do not hide R code with echo=FALSE.
• Do hide unnecessary R output, such as long data listings, with results=’hide’
as RMarkdown code chunk
• Avoid unneccessarily repeating identical code, for example when adding
to a previous plot, use the pl + new stuff() technique for ggplot()
Problem description
The aim is to build and assess statistical models of material use in a 3D printer.
The printer uses rolls of filament that gets heated and squeezed through a
moving nozzle, gradually building objects. The objects are first designed in a
CAD program (Computer Aided Design), that also estimates how much material
will be required to print the object. The data file filament.csv contains the
data needed for model estimation and assessment, one 3D-printed object per
row. The columns are
• CAD Length: The CAD-estimated required filament length (metres)
• CAD Weight: The CAD-estimated required filament weight (gram)
• Actual Weight: The measured actual object weight (gram)
• Material: The material colour
• .copy: Index for duplicate rolls; mostly 1, but can be 2 if more than one
filament roll of a given material colour is present in the data set
• Date: The date the object was printed.
1

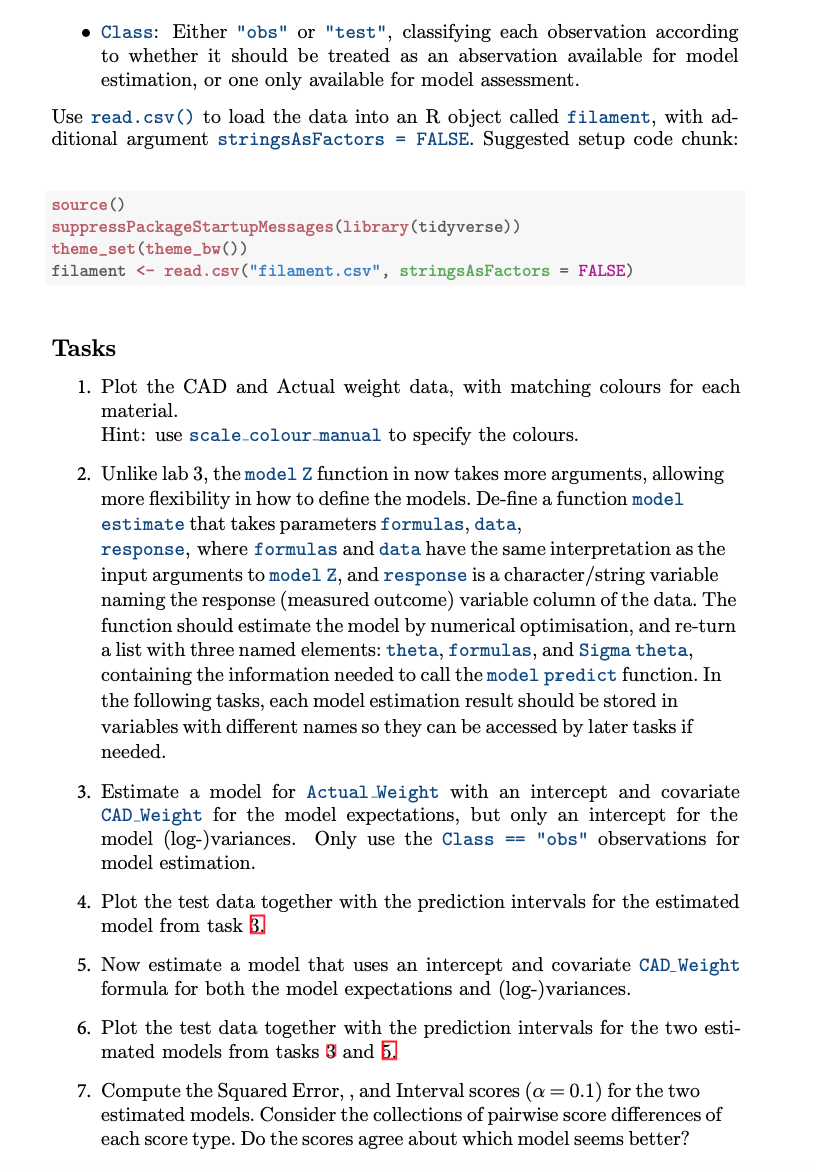

• Class: Either "obs" or "test", classifying each observation according
to whether it should be treated as an abservation available for model
estimation, or one only available for model assessment.
Use read.csv() to load the data into an R object called filament, with additional argument stringsAsFactors = FALSE. Suggested setup code chunk:
source()
suppressPackageStartupMessages(library(tidyverse))
theme_set(theme_bw())
filament <- read.csv("filament.csv", stringsAsFactors = FALSE)
Tasks

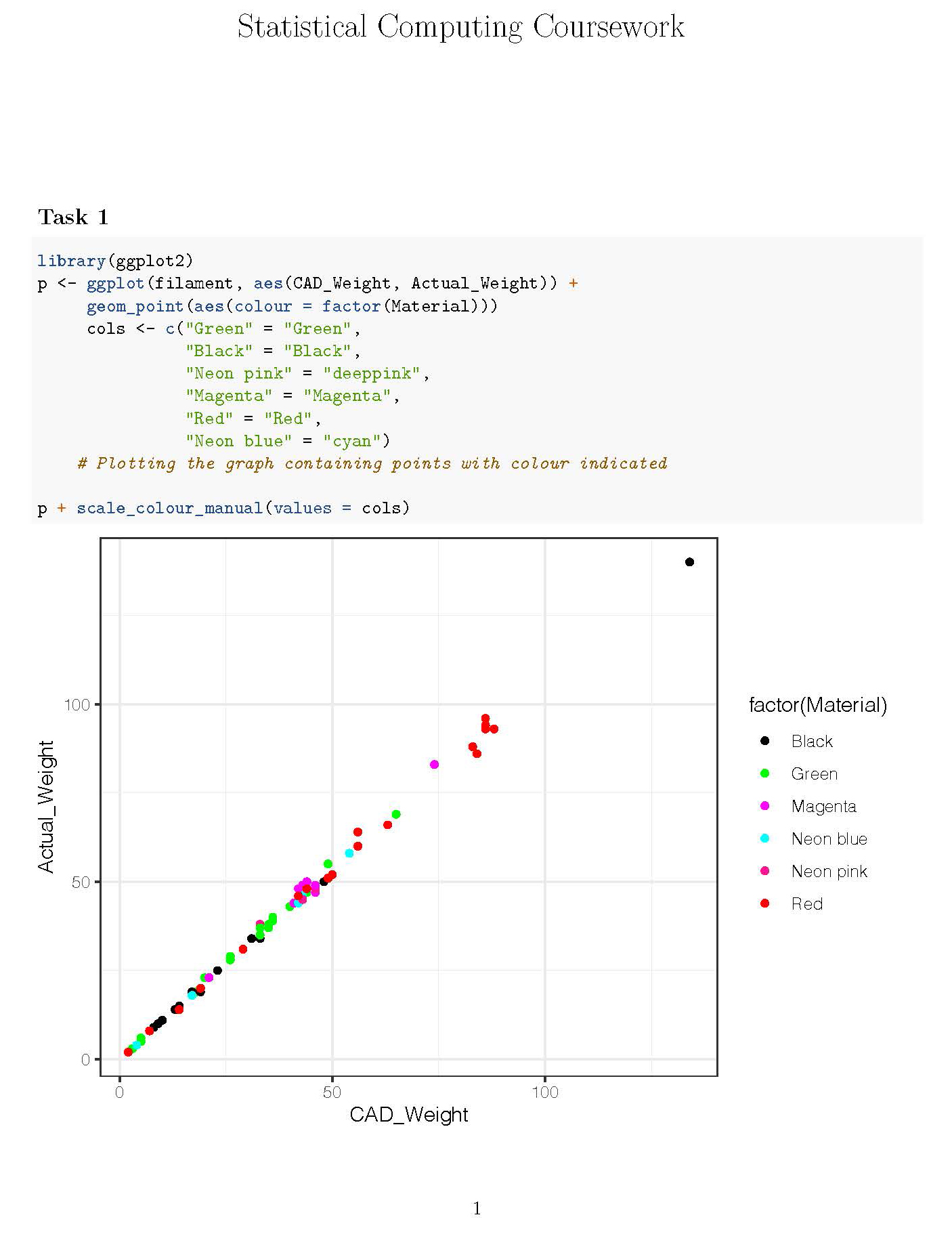

1. Plot the CAD and Actual weight data, with matching colours for each
material.
Hint: use scale colour manual to specify the colours.
2. Unlike lab 3, the model Z function in now takes more arguments, allowing
more flexibility in how to define the models. De-fine a function model
estimate that takes parameters formulas, data,
response, where formulas and data have the same interpretation as the
input arguments to model Z, and response is a character/string variable
naming the response (measured outcome) variable column of the data. The
function should estimate the model by numerical optimisation, and re-turn
a list with three named elements: theta, formulas, and Sigma theta,
containing the information needed to call the model predict function. In
the following tasks, each model estimation result should be stored in
variables with di↵erent names so they can be accessed by later tasks if
needed.
3. Estimate a model for Actual Weight with an intercept and covariate
CAD Weight for the model expectations, but only an intercept for the
model (log-)variances. Only use the Class == "obs" observations for
model estimation.
4. Plot the test data together with the prediction intervals for the estimated
model from task 3.
5. Now estimate a model that uses an intercept and covariate CAD Weight
formula for both the model expectations and (log-)variances.
6. Plot the test data together with the prediction intervals for the two estimated models from tasks 3 and 5.
7. Compute the Squared Error, , and Interval scores (↵ = 0.1) for the two
estimated models. Consider the collections of pairwise score di↵erences of
each score type. Do the scores agree about which model seems better?
2

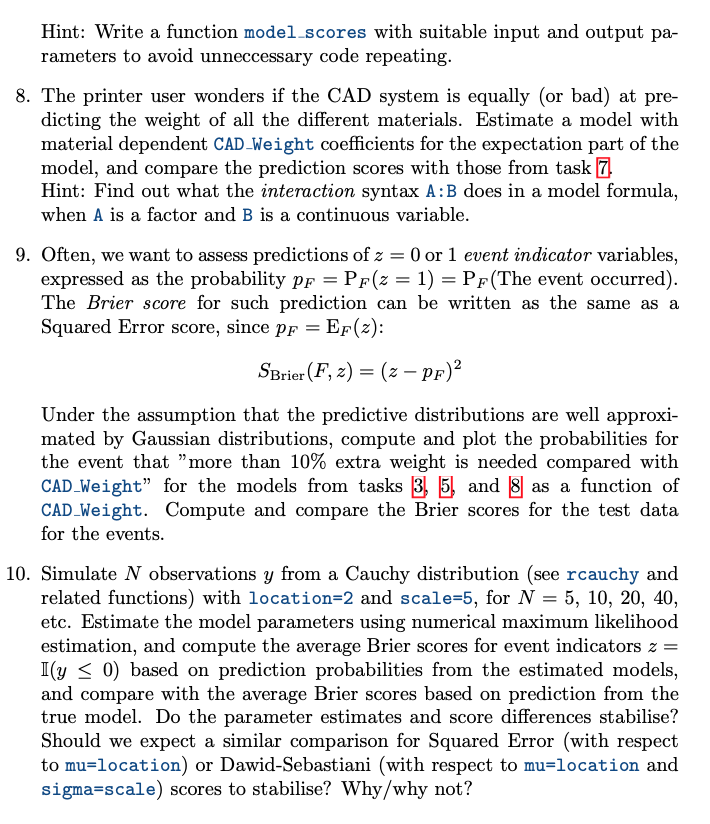

Hint: Write a function model scores with suitable input and output parameters to avoid unneccessary code repeating.
8. The printer user wonders if the CAD system is equally (or bad) at predicting the weight of all the di↵erent materials. Estimate a model with
material dependent CAD Weight coecients for the expectation part of the
model, and compare the prediction scores with those from task 7.
Hint: Find out what the interaction syntax A:B does in a model formula,
when A is a factor and B is a continuous variable.
9. Often, we want to assess predictions of z = 0 or 1 event indicator variables,
expressed as the probability pF = PF (z = 1) = PF (The event occurred).
The Brier score for such prediction can be written as the same as a
Squared Error score, since pF = EF (z):
SBrier(F, z)=(z pF )
2
Under the assumption that the predictive distributions are well approximated by Gaussian distributions, compute and plot the probabilities for
the event that ”more than 10% extra weight is needed compared with
CAD Weight” for the models from tasks 3, 5, and 8 as a function of
CAD Weight. Compute and compare the Brier scores for the test data
for the events.
10. Simulate N observations y from a Cauchy distribution (see rcauchy and
related functions) with location=2 and scale=5, for N = 5, 10, 20, 40,
etc. Estimate the model parameters using numerical maximum likelihood
estimation, and compute the average Brier scores for event indicators z =
I(y 0) based on prediction probabilities from the estimated models,
and compare with the average Brier scores based on prediction from the
true model. Do the parameter estimates and score di↵erences stabilise?
Should we expect a similar comparison for Squared Error (with respect
to mu=location) or Dawid-Sebastiani (with respect to mu=location and
sigma=scale) scores to stabilise? Why/why not?
