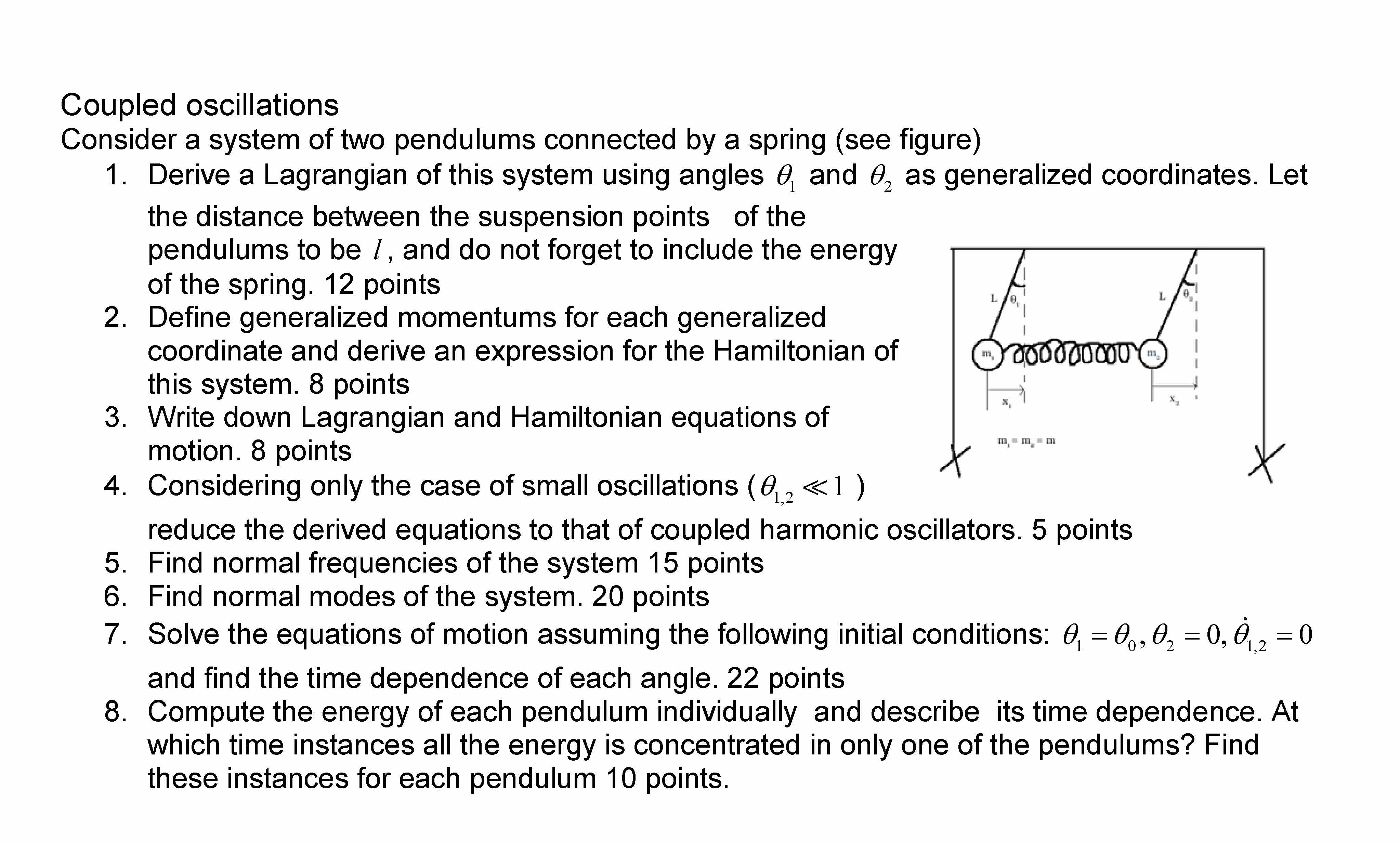

Coupled oscillations Consider a system of two pendulums connected by a spring (see figure) 1. Derive a Lagrangian of this system using angles θ1 and θ2 as generalized coordinates. Let the distance between the suspension points of the pendulums to be l , and do not forget to include the energy of the spring. 12 points 2. Define generalized momentums for each generalized coordinate and derive an expression for the Hamiltonian of this system. 8 points 3. Write down Lagrangian and Hamiltonian equations of motion. 8 points 4. Considering only the case of small oscillations ( 1,2 θ 1 ) reduce the derived equations to that of coupled harmonic oscillators. 5 points 5. Find normal frequencies of the system 15 points 6. Find normal modes of the system. 20 points 7. Solve the equations of motion assuming the following initial conditions: 1 0 2 1,2 θ θθ θ = = = , 0, 0  and find the time dependence of each angle. 22 points 8. Compute the energy of each pendulum individually and describe its time dependence. At which time instances all the energy is concentrated in only one of the pendulums? Find these instances for each pendulum 10 points.

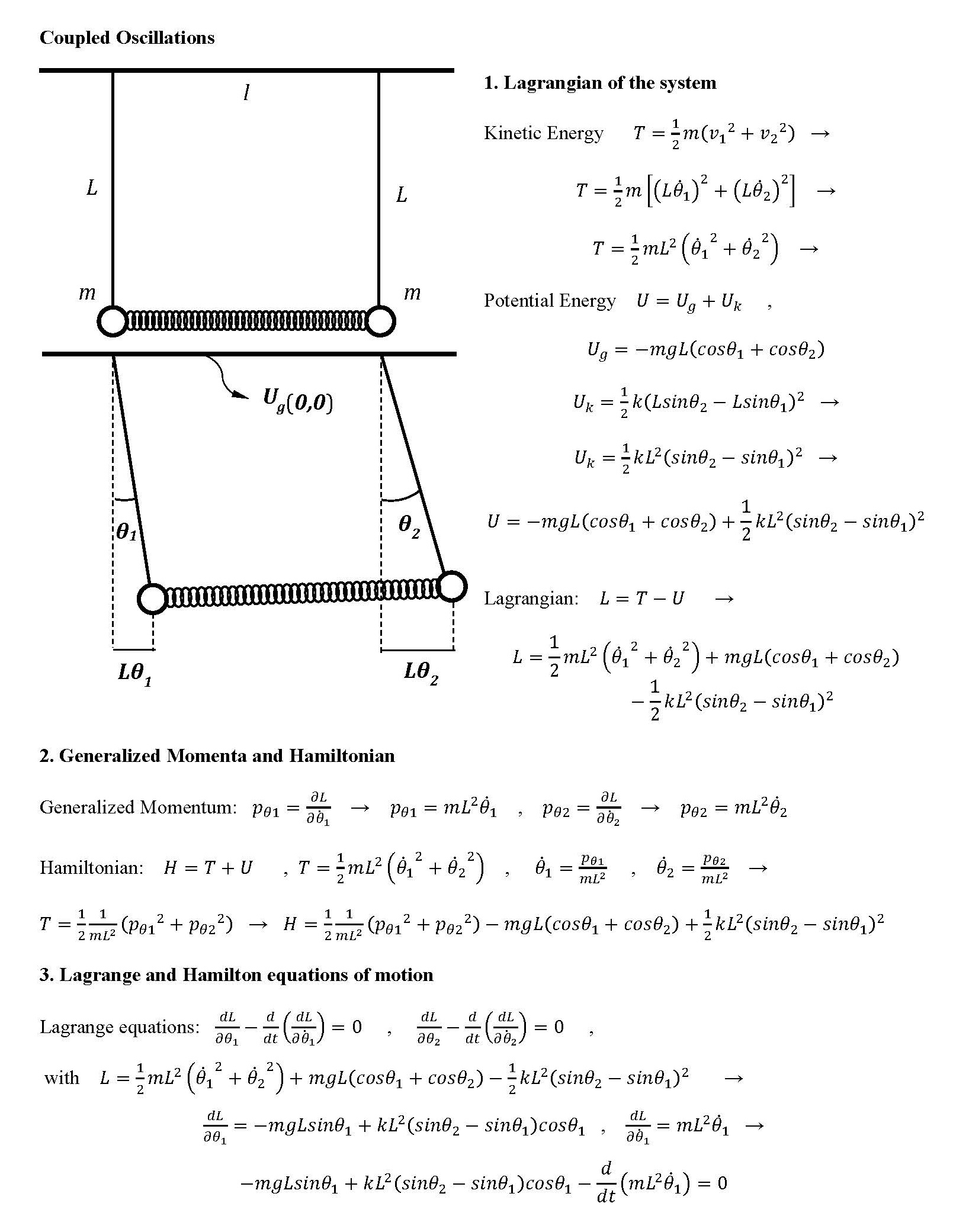

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.

    $15.00
    for this solution

    or FREE if you
    register a new account!

    PayPal, G Pay, ApplePay, Amazon Pay, and all major credit cards accepted.
