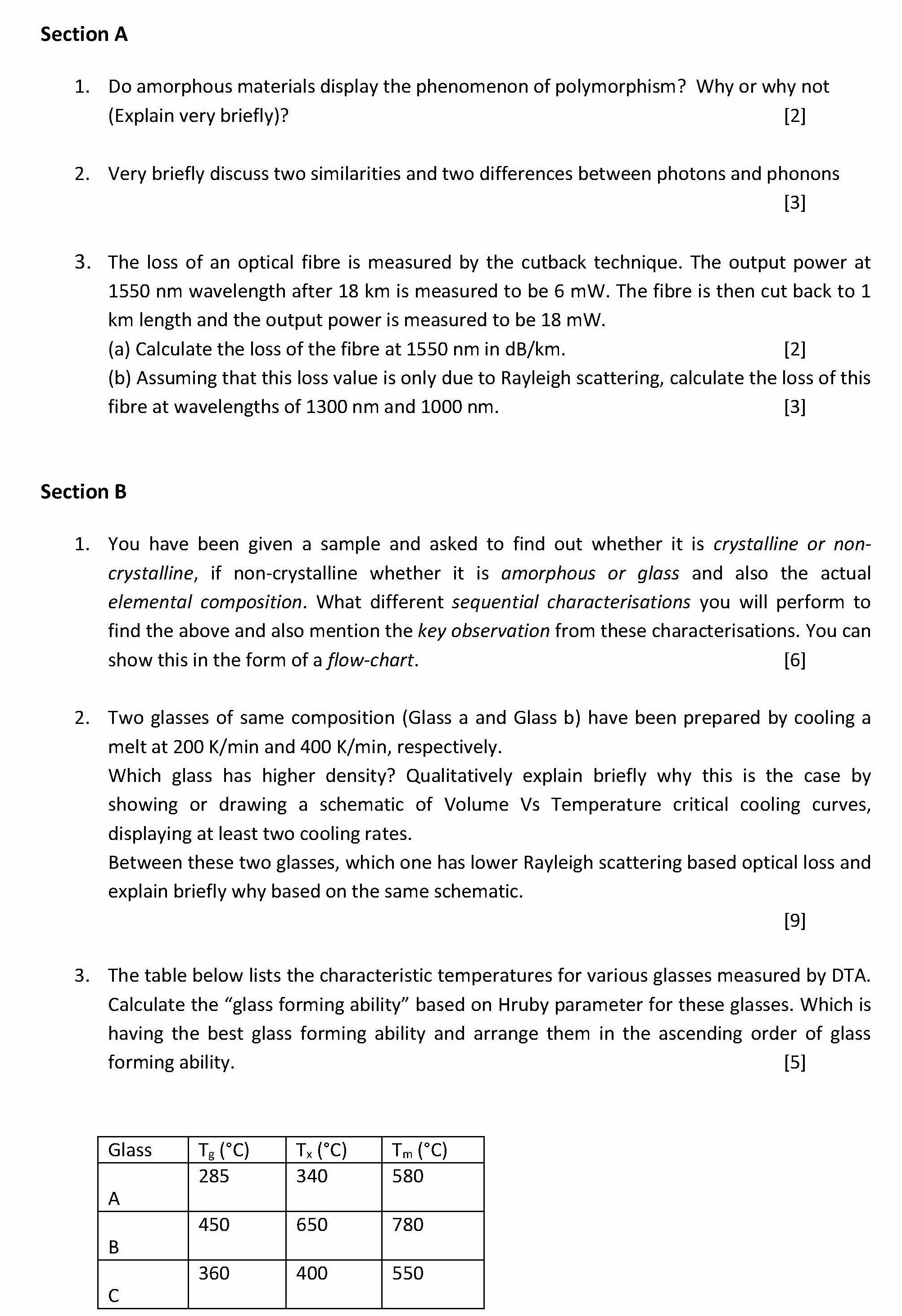

Section A 1. Do amorphous materials display the phenomenon of polymorphism? Why or why not (Explain very briefly)? [2] 2. Very briefly discuss two similarities and two differences between photons and phonons [3] 3. The loss of an optical fibre is measured by the cutback technique. The output power at 1550 nm wavelength after 18 km is measured to be 6 m W. The fibre is then cut back to 1 km length and the output power is measured to be 18 mW. (a) Calculate the loss of the fibre at 1550 nm in dB/km. [2] (b) Assuming that this loss value is only due to Rayleigh scattering, calculate the loss of this fibre at wavelengths of 1300 nm and 1000 nm. [3] Section B 1. You have been given a sample and asked to find out whether it is crystalline or non- crystalline, if non-crystalline whether it is amorphous or glass and also the actual elemental composition. What different sequential choracterisations you will perform to find the above and also mention the key observation from these characterisations. You can show this in the form of a flow-chort. [6] 2. Two glasses of same composition (Glass a and Glass b) have been prepared by cooling a melt at 200 K/min and 400K/min, respectively. Which glass has higher density? Qualitatively explain briefly why this is the case by showing or drawing a schematic of Volume Vs Temperature critical cooling curves, displaying at least two cooling rates. Between these two glasses, which one has lower Rayleigh scattering based optical loss and explain briefly why based on the same schematic. [9] 3. The table below lists the characteristic temperatures for various glasses measured by DTA. Calculate the "glass forming ability" based on Hruby parameter for these glasses. Which is having the best glass forming ability and arrange them in the ascending order of glass forming ability. [5] Glass Tg T2 (°C) T= (°C) 285 340 580 A 450 650 780 B 360 400 550 C

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

Polymorphism relates to different forms in which a solid can exist, usually with some crystal structure, with possible admixture of some amorphous fraction.
Since polymorphism is about different crystal structures, it cannot exist in amorphous materials.
We note however that there is an analogous polyamorphysm for amorphous materials which relates to different amorphous states of the same material. There are examples of polymers, liquids, and glasses...
