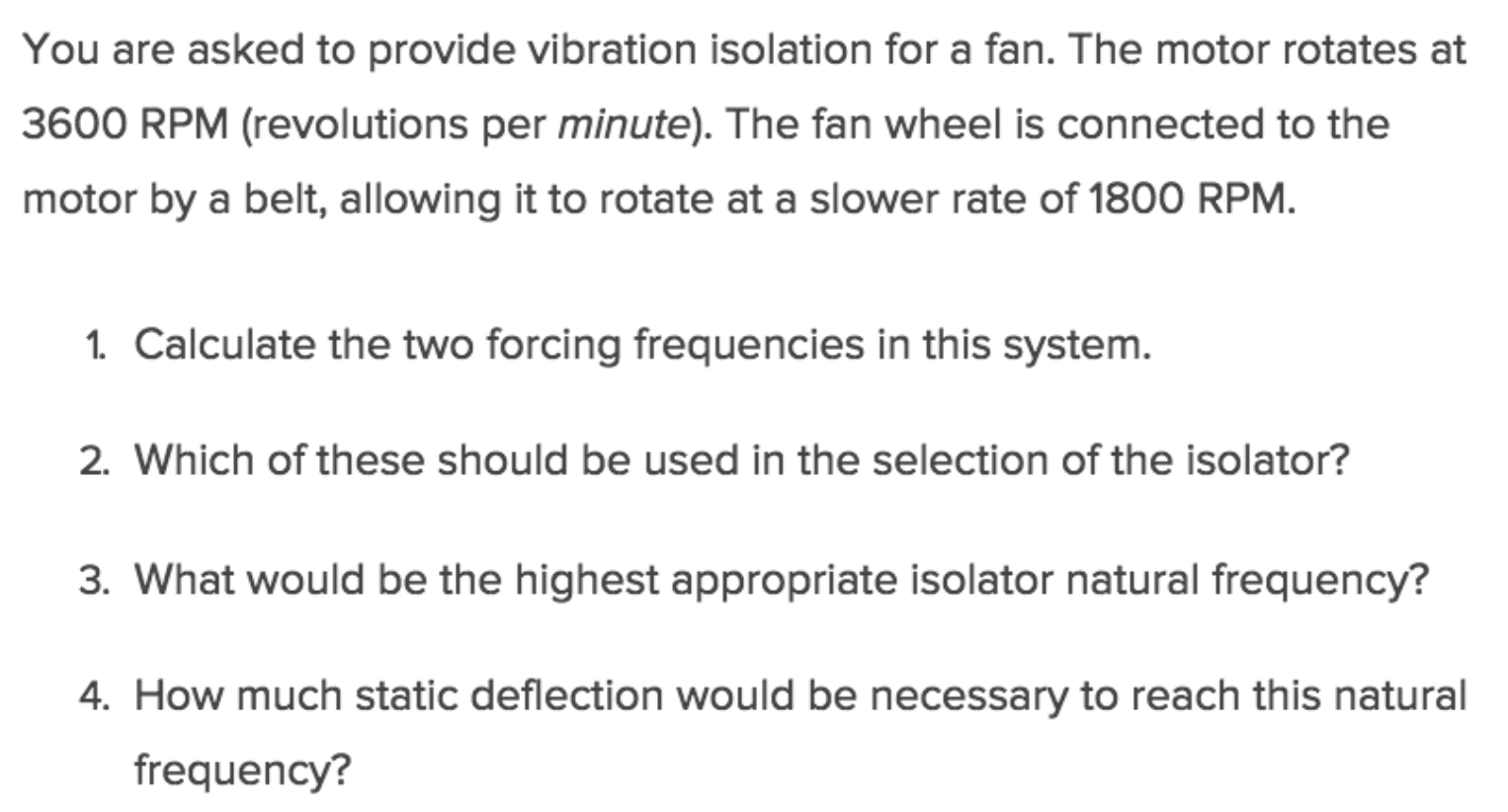

You are asked to provide vibration isolation for a fan. The motor rotates at 3600 RPM (revolutions per minute). The fan wheel is connected to the motor by a belt, allowing it to rotate at a slower rate of 1800 RPM. 1. Calculate the two forcing frequencies in this system. 2. Which of these should be used in the selection of the isolator? 3. What would be the highest appropriate isolator natural frequency? 4. How much static deflection would be necessary to reach this natural frequency?

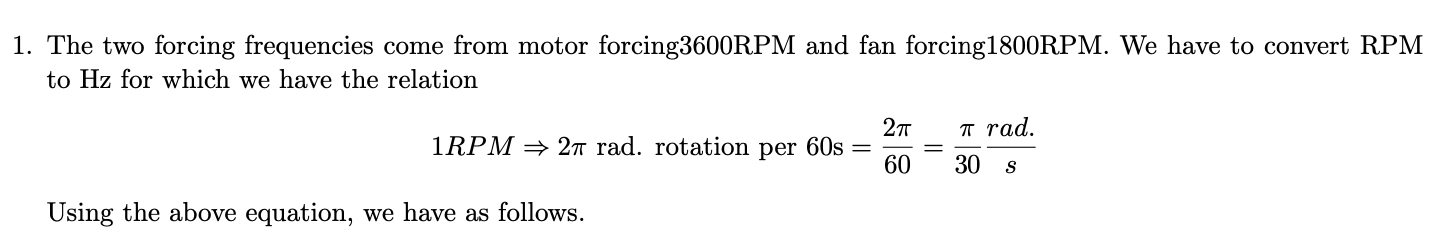

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.jpg.

    $25.00
    for this solution

    PayPal, G Pay, ApplePay, Amazon Pay, and all major credit cards accepted.
