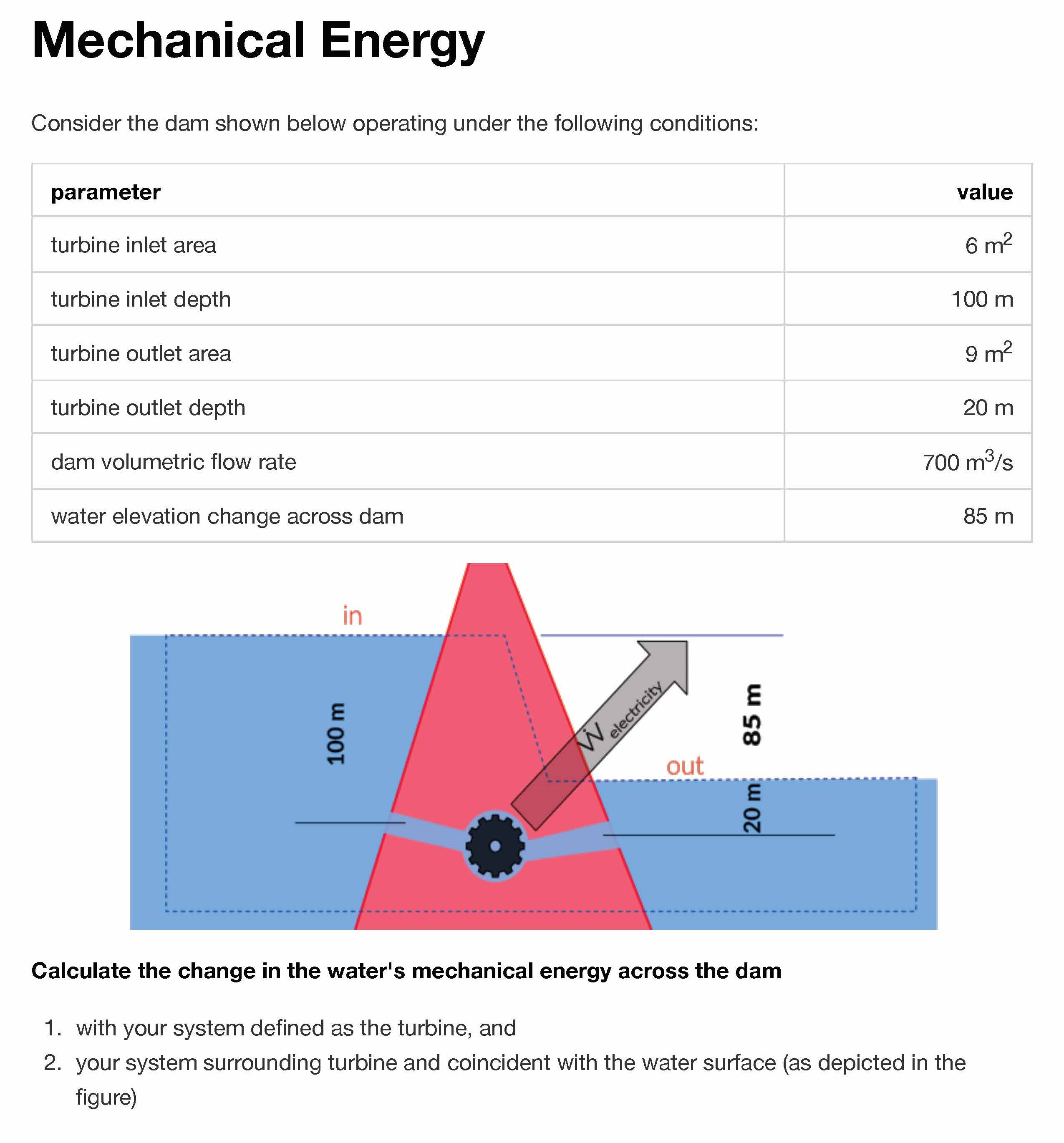

Mechanical Energy Consider the dam shown below operating under the following conditions: parameter value turbine inlet area 6 m2 turbine inlet depth 100 m turbine outlet area 9 m2 turbine outlet depth 20 m dam volumetric flow rate 700 m3/s water elevation change across dam 85 m Calculate the change in the water's mechanical energy across the dam 1. with your system defined as the turbine, and 2. your system surrounding turbine and coincident with the water surface (as depicted in the figure)

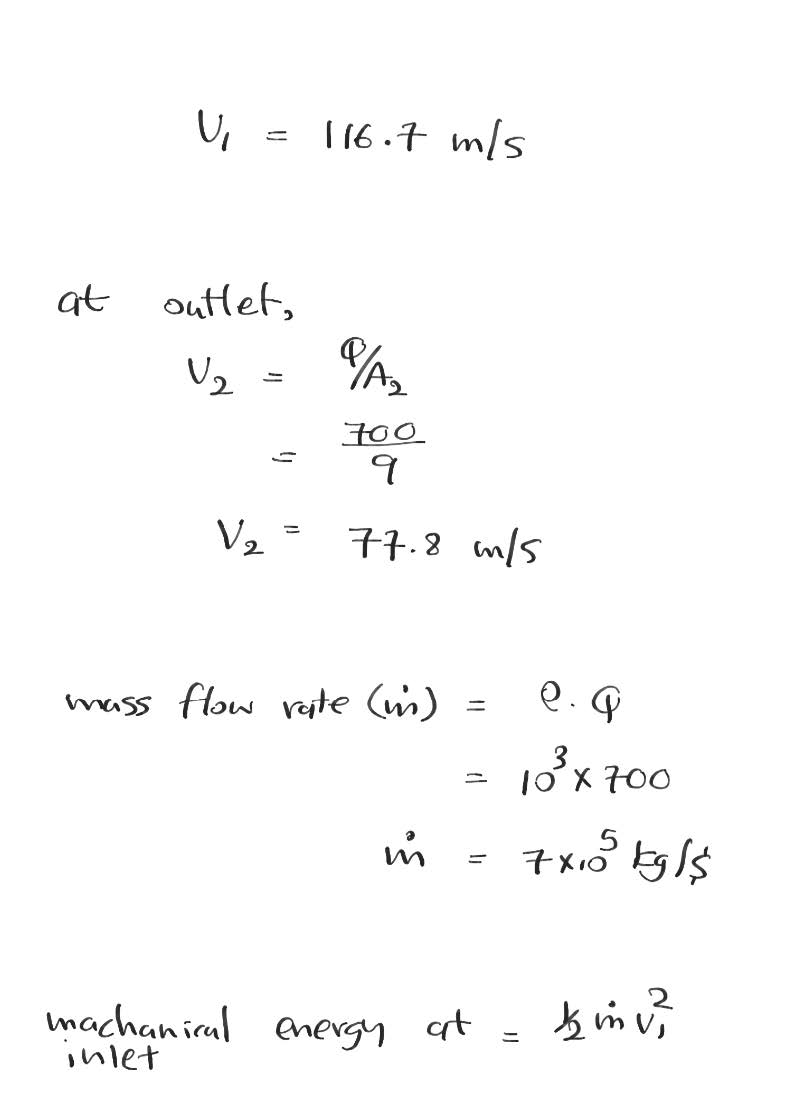

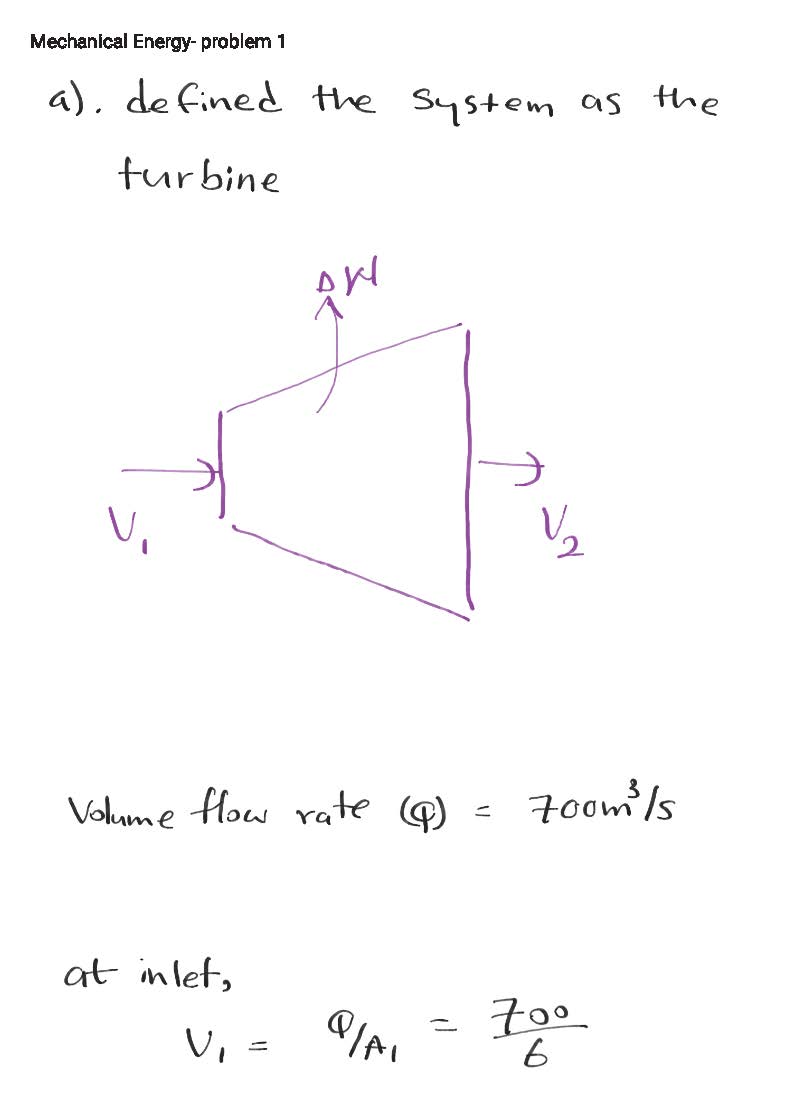

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.
