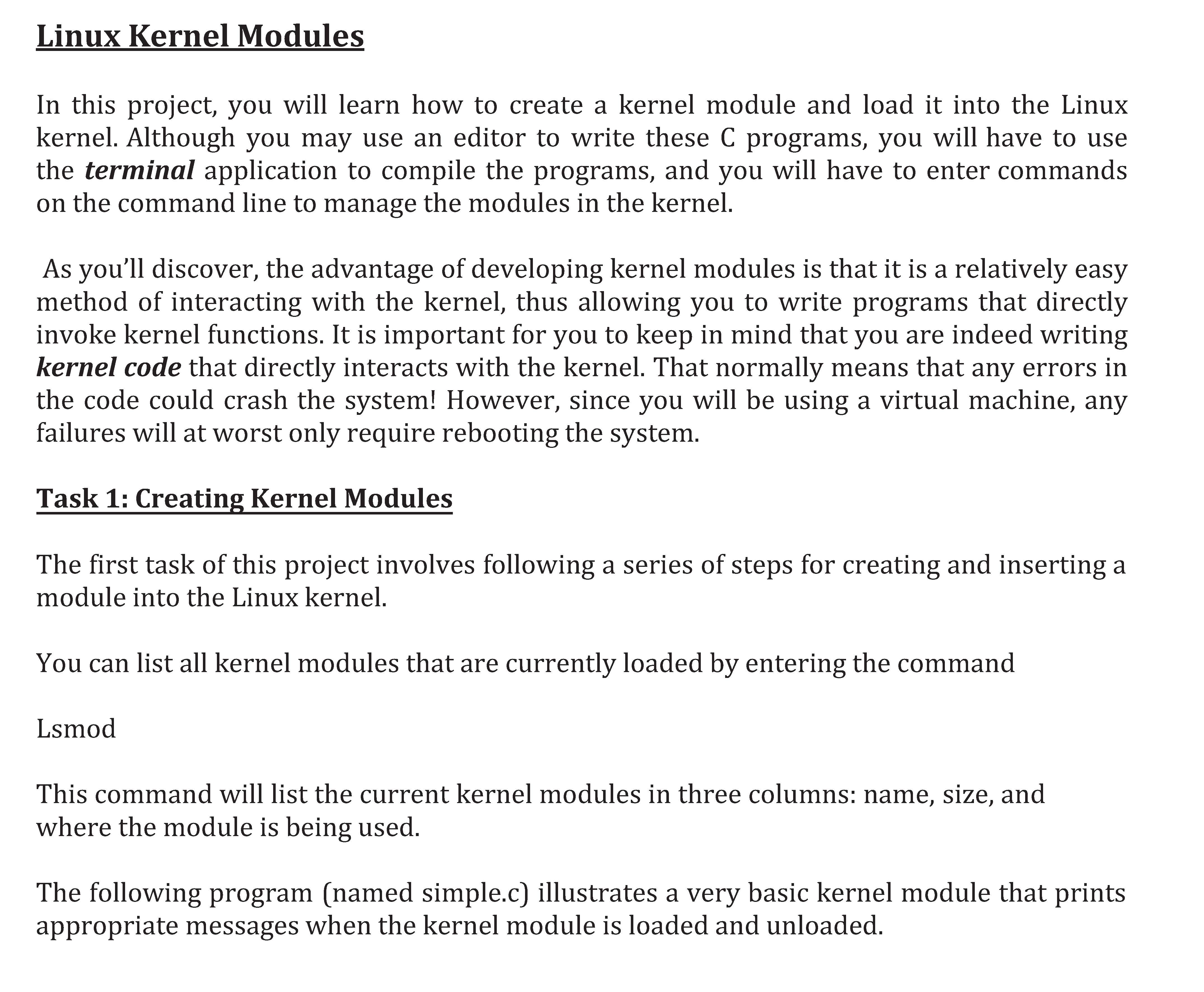

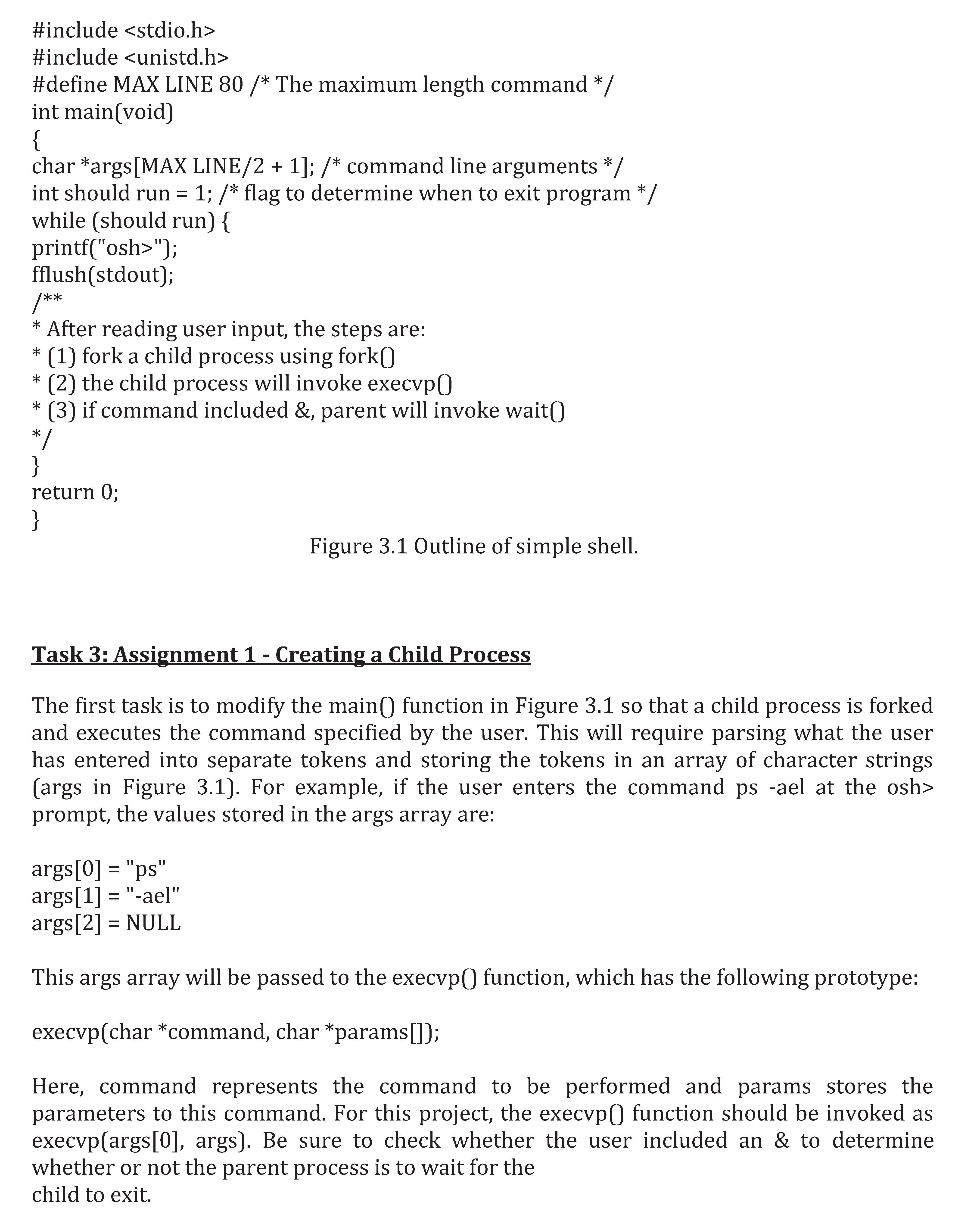

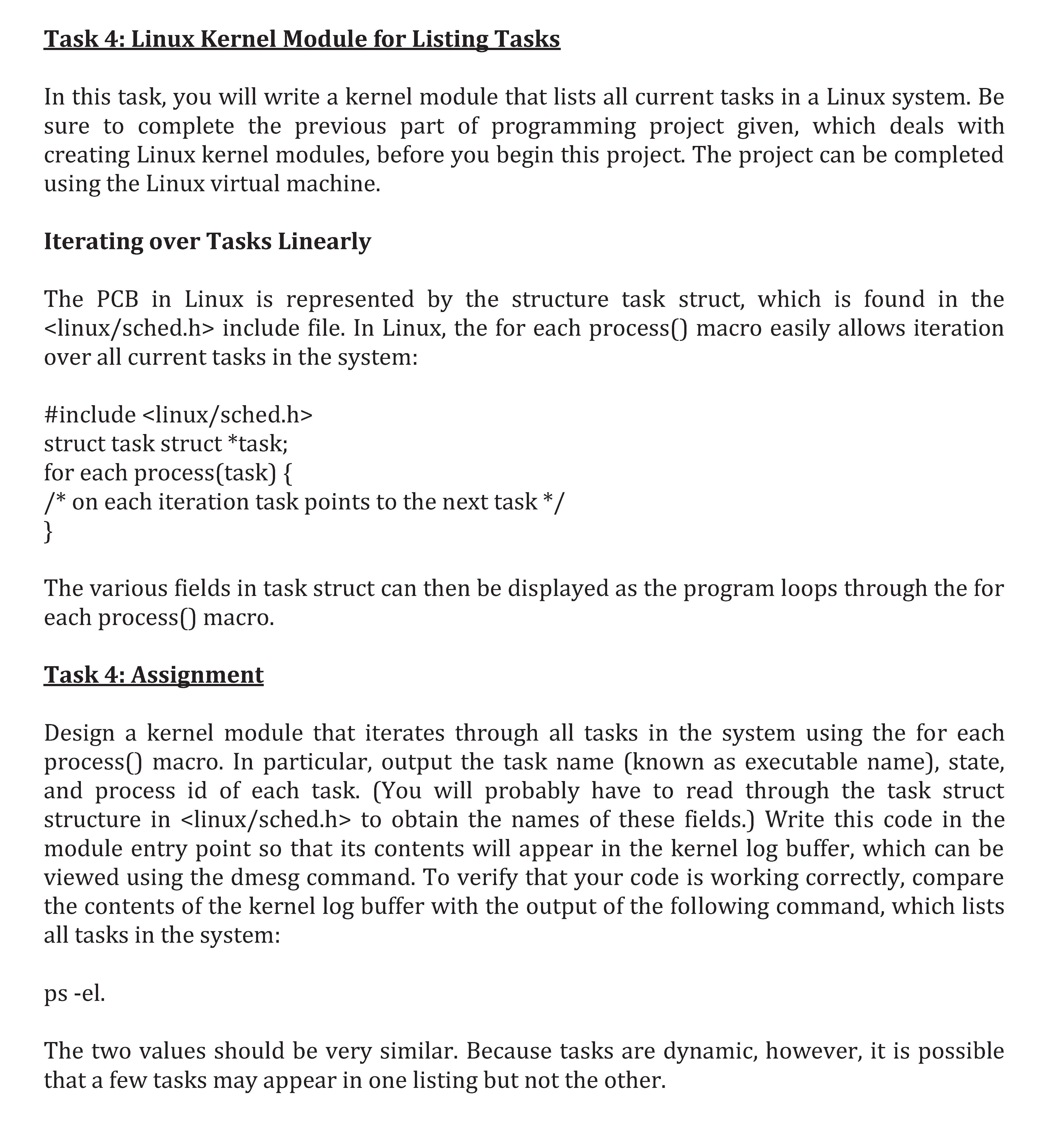

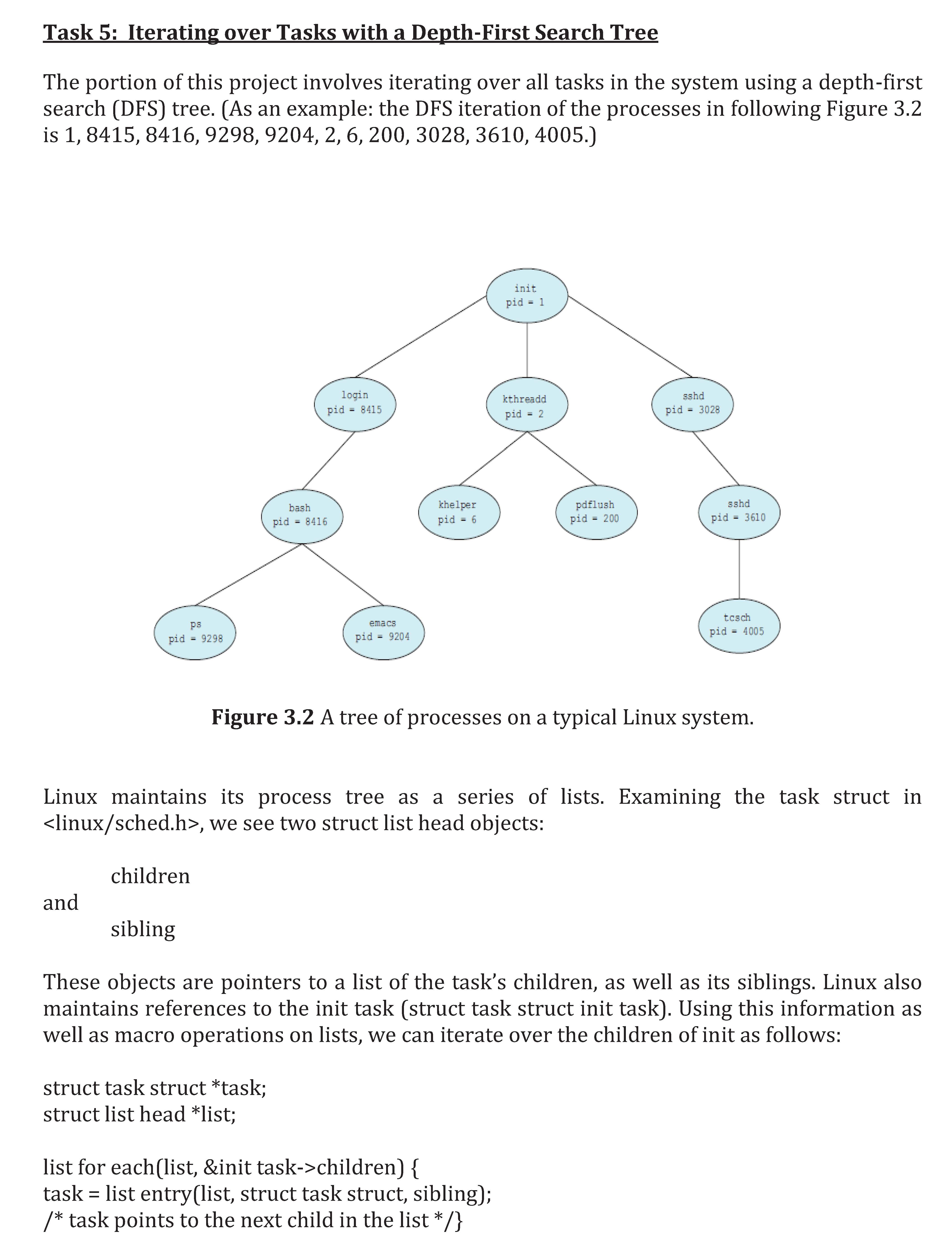

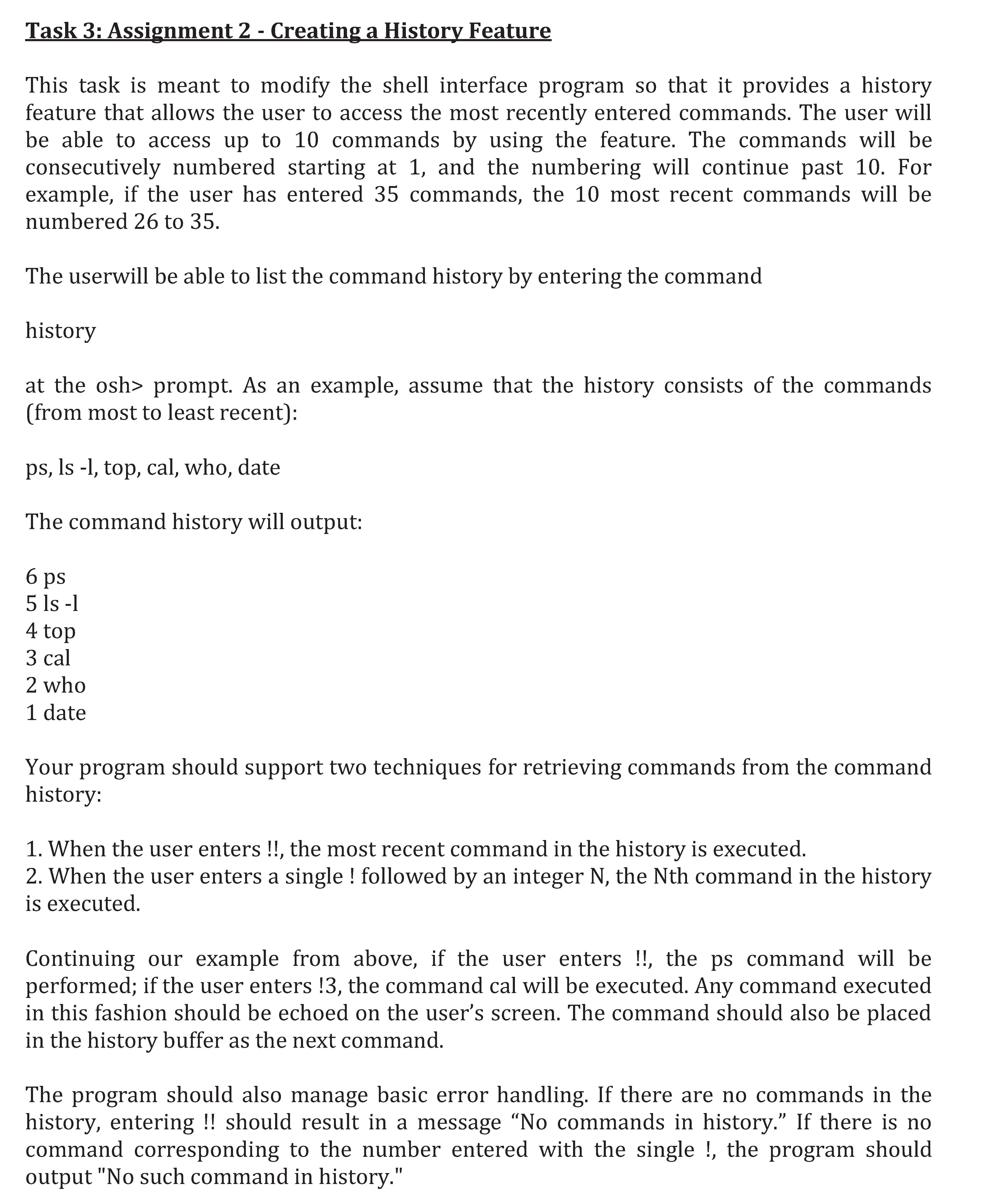

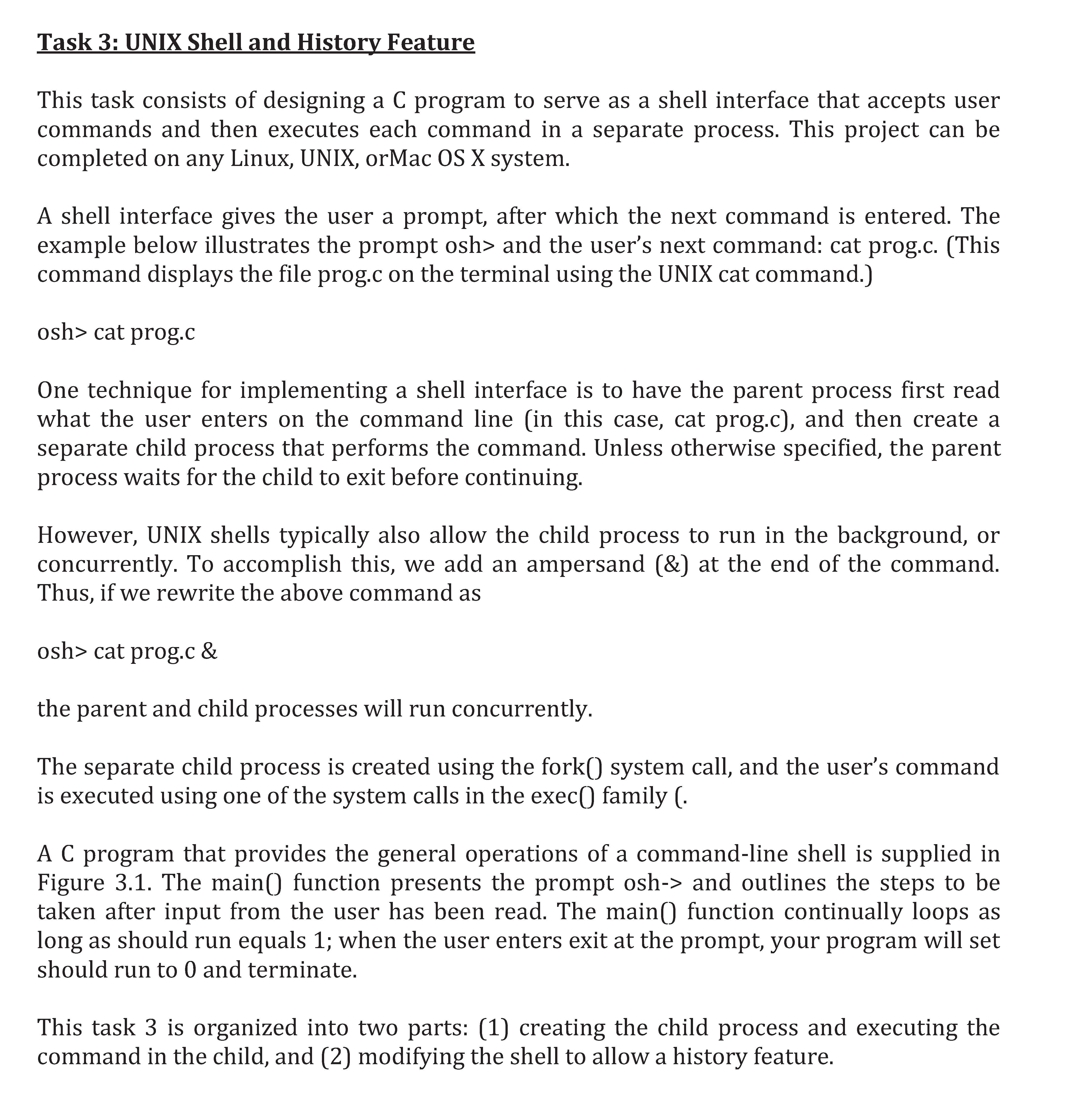

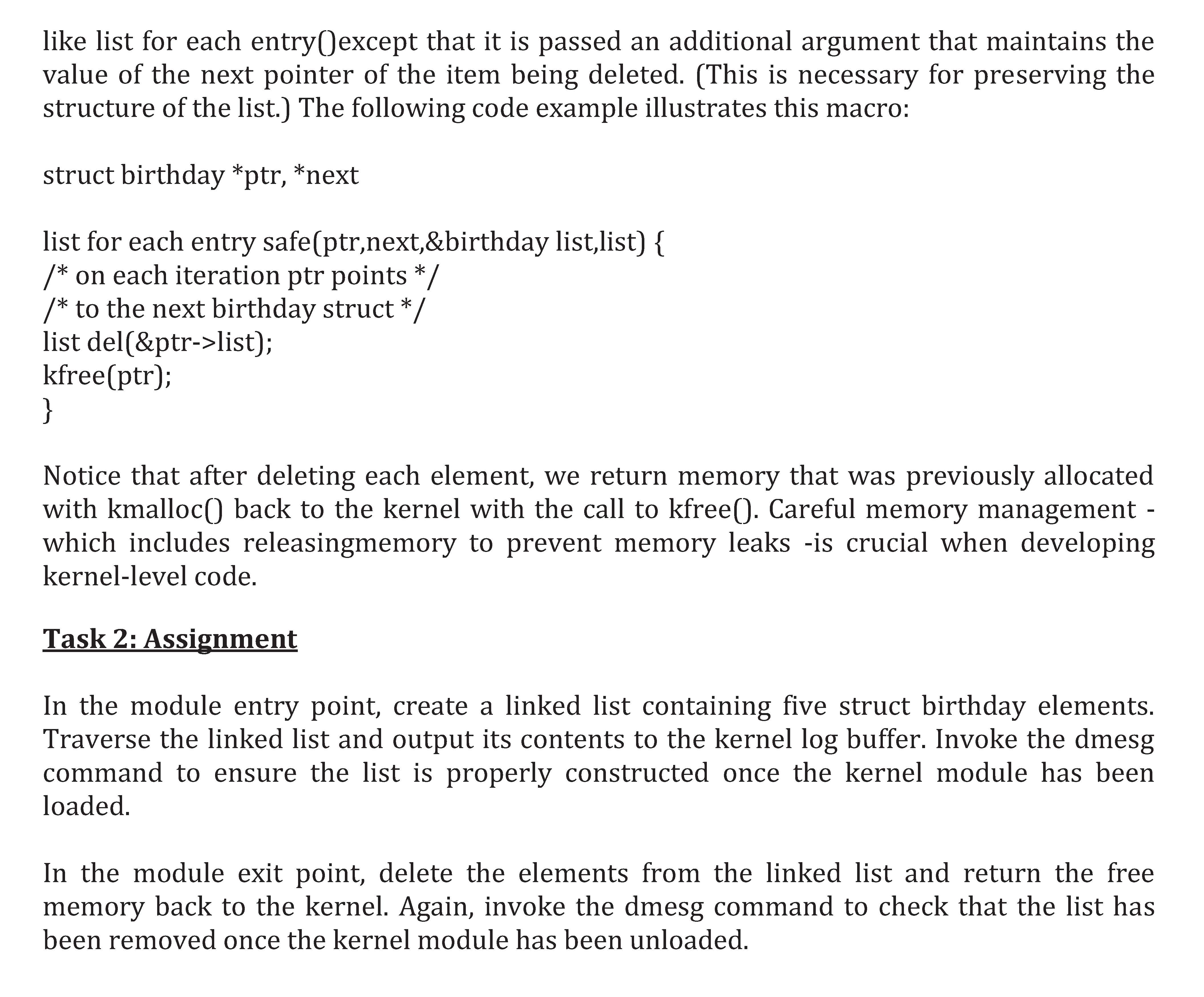

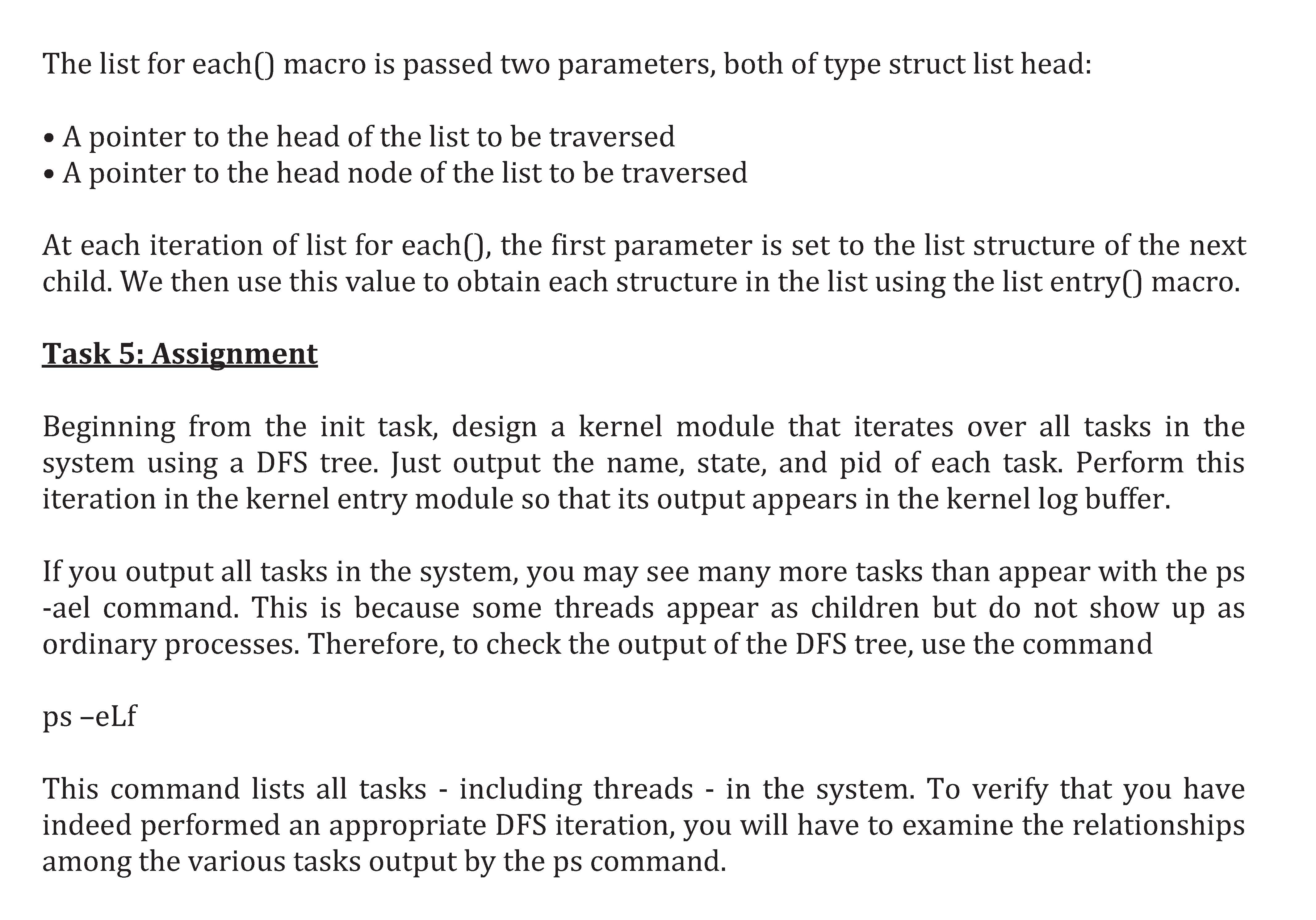

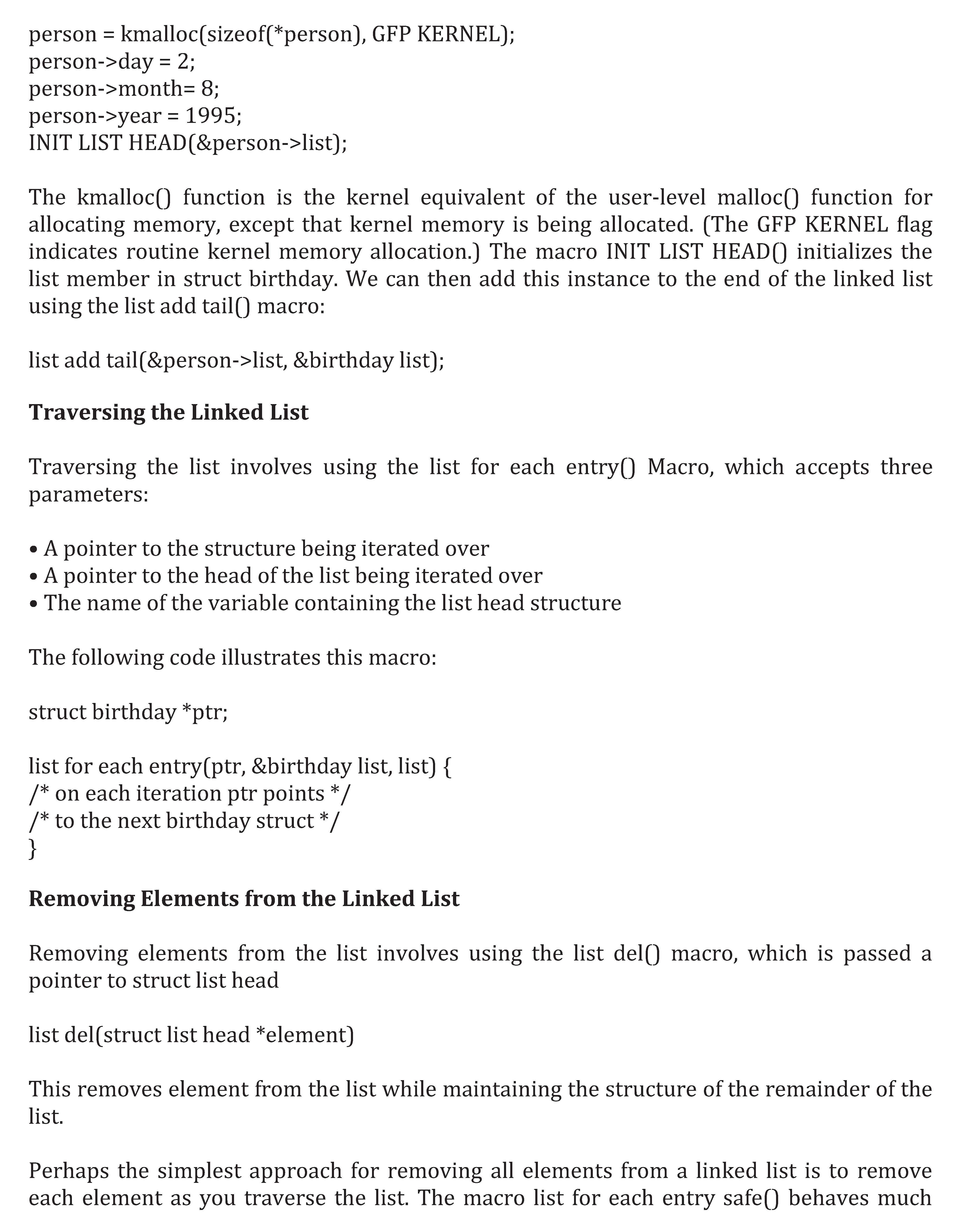

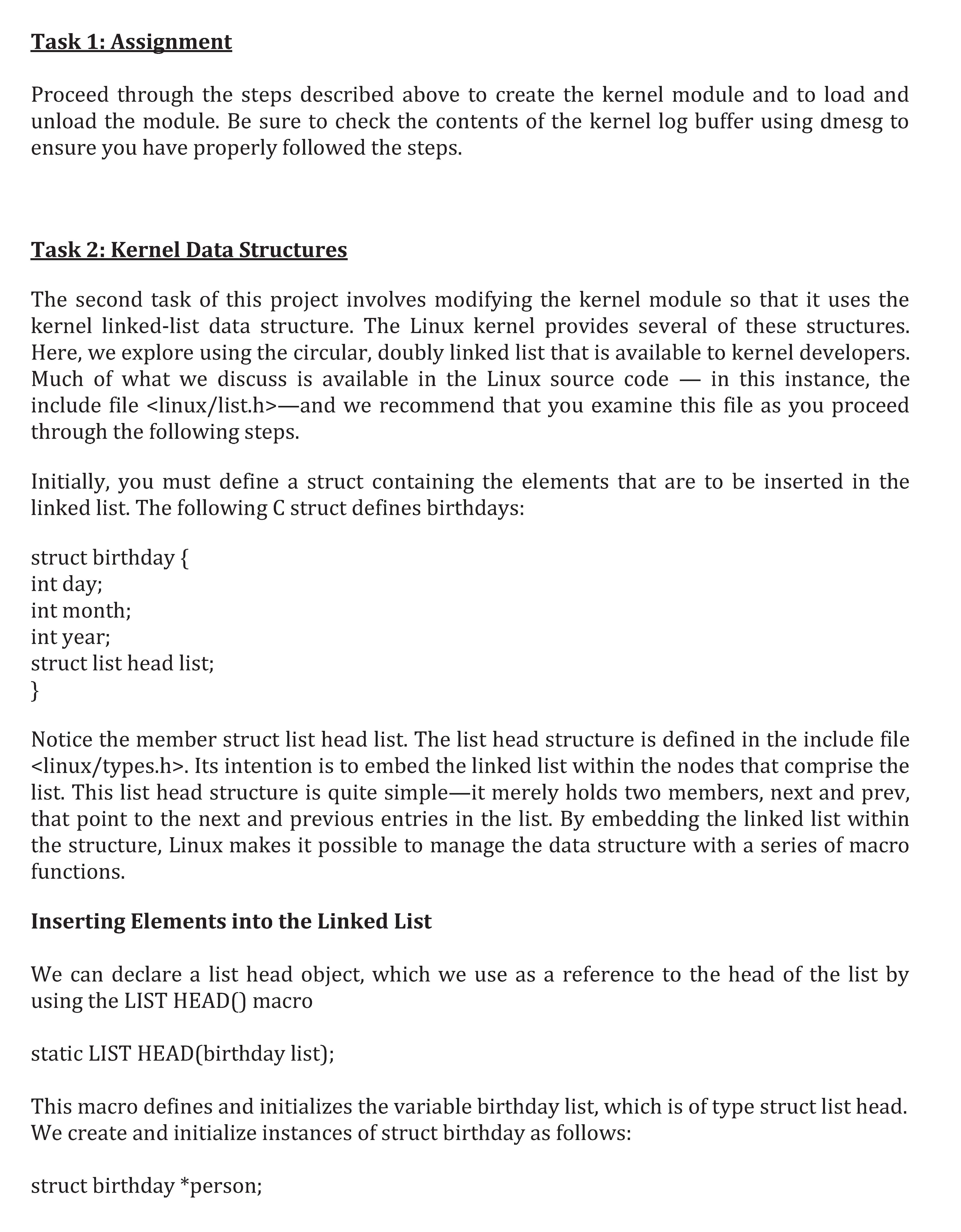

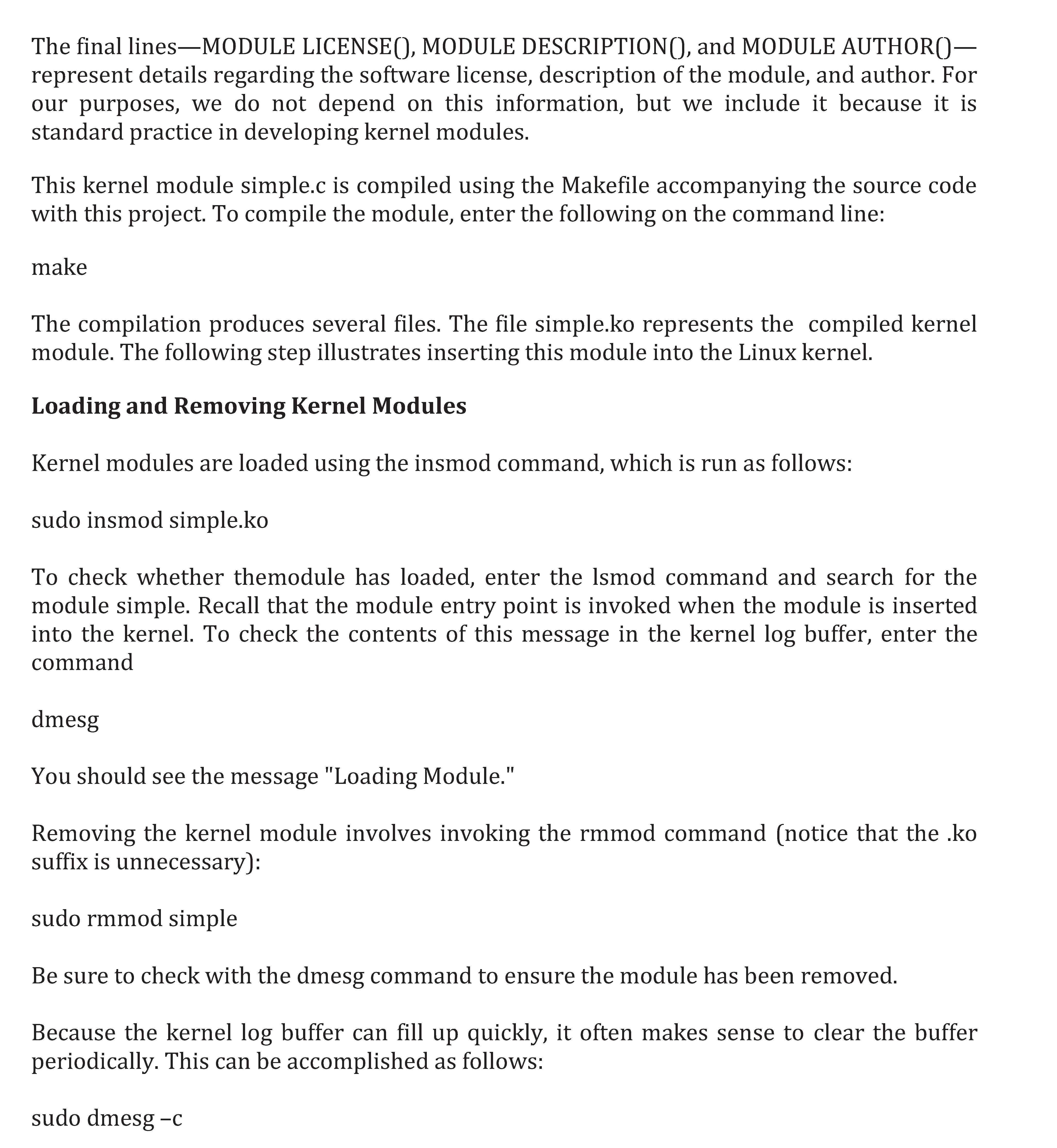

Linux Kernel Modules In this project, you will learn how to create a kernel module and load it into the Linux kernel. Although you may use an editor to write these C programs, you will have to use the terminal application to compile the programs, and you will have to enter commands on the command line to manage the modules in the kernel. As you’ll discover, the advantage of developing kernel modules is that it is a relatively easy method of interacting with the kernel, thus allowing you to write programs that directly invoke kernel functions. It is important for you to keep in mind that you are indeed writing kernel code that directly interacts with the kernel. That normally means that any errors in the code could crash the system! However, since you will be using a virtual machine, any failures will at worst only require rebooting the system. Task 1: Creating Kernel Modules The first task of this project involves following a series of steps for creating and inserting a module into the Linux kernel. You can list all kernel modules that are currently loaded by entering the command Lsmod This command will list the current kernel modules in three columns: name, size, and where the module is being used. The following program (named simple.c) illustrates a very basic kernel module that prints appropriate messages when the kernel module is loaded and unloaded. 2 #include <linux/init.h> #include <linux/kernel.h> #include <linux/module.h> /* This function is called when the module is loaded. */ int simple init(void) { printk(KERN INFO "Loading Module\n"); return 0; } /* This function is called when the module is removed. */ void simple exit(void) { printk(KERN INFO "Removing Module\n"); } /* Macros for registering module entry and exit points. */ module init(simple init); module exit(simple exit); MODULE LICENSE("GPL"); MODULE DESCRIPTION("Simple Module"); MODULE AUTHOR("SGG"); The function simple init() is the module entry point, which represents the function that is invoked when the module is loaded into the kernel. Similarly, the simple exit() function is the module exit point—the function that is called when the module is removed from the kernel. The module entry point function must return an integer value, with 0 representing success and any other value representing failure. The module exit point function returns void. Neither the module entry point nor the module exit point is passed any parameters. The two following macros are used for registering the module entry and exit points with the kernel: module init() module exit() Notice how both the module entry and exit point functions make calls to the printk() function. printk() is the kernel equivalent of printf(), yet its output is sent to a kernel log buffer whose contents can be read by the dmesg command. One difference between printf() and printk() is that printk() allows us to specify a priority flag whose values are given in the <linux/printk.h> include file. In this instance, the priority is KERN INFO, which is defined as an informational message. 3 The final lines—MODULE LICENSE(), MODULE DESCRIPTION(), and MODULE AUTHOR()— represent details regarding the software license, description of the module, and author. For our purposes, we do not depend on this information, but we include it because it is standard practice in developing kernel modules. This kernel module simple.c is compiled using the Makefile accompanying the source code with this project. To compile the module, enter the following on the command line: make The compilation produces several files. The file simple.ko represents the compiled kernel module. The following step illustrates inserting this module into the Linux kernel. Loading and Removing Kernel Modules Kernel modules are loaded using the insmod command, which is run as follows: sudo insmod simple.ko To check whether themodule has loaded, enter the lsmod command and search for the module simple. Recall that the module entry point is invoked when the module is inserted into the kernel. To check the contents of this message in the kernel log buffer, enter the command dmesg You should see the message "Loading Module." Removing the kernel module involves invoking the rmmod command (notice that the .ko suffix is unnecessary): sudo rmmod simple Be sure to check with the dmesg command to ensure the module has been removed. Because the kernel log buffer can fill up quickly, it often makes sense to clear the buffer periodically. This can be accomplished as follows: sudo dmesg –c 4 Task 1: Assignment Proceed through the steps described above to create the kernel module and to load and unload the module. Be sure to check the contents of the kernel log buffer using dmesg to ensure you have properly followed the steps. Task 2: Kernel Data Structures The second task of this project involves modifying the kernel module so that it uses the kernel linked-list data structure. The Linux kernel provides several of these structures. Here, we explore using the circular, doubly linked list that is available to kernel developers. Much of what we discuss is available in the Linux source code — in this instance, the include file <linux/list.h>—and we recommend that you examine this file as you proceed through the following steps. Initially, you must define a struct containing the elements that are to be inserted in the linked list. The following C struct defines birthdays: struct birthday { int day; int month; int year; struct list head list; } Notice the member struct list head list. The list head structure is defined in the include file <linux/types.h>. Its intention is to embed the linked list within the nodes that comprise the list. This list head structure is quite simple—it merely holds two members, next and prev, that point to the next and previous entries in the list. By embedding the linked list within the structure, Linux makes it possible to manage the data structure with a series of macro functions. Inserting Elements into the Linked List We can declare a list head object, which we use as a reference to the head of the list by using the LIST HEAD() macro static LIST HEAD(birthday list); This macro defines and initializes the variable birthday list, which is of type struct list head. We create and initialize instances of struct birthday as follows: struct birthday *person; 5 person = kmalloc(sizeof(*person), GFP KERNEL); person->day = 2; person->month= 8; person->year = 1995; INIT LIST HEAD(&person->list); The kmalloc() function is the kernel equivalent of the user-level malloc() function for allocating memory, except that kernel memory is being allocated. (The GFP KERNEL flag indicates routine kernel memory allocation.) The macro INIT LIST HEAD() initializes the list member in struct birthday. We can then add this instance to the end of the linked list using the list add tail() macro: list add tail(&person->list, &birthday list); Traversing the Linked List Traversing the list involves using the list for each entry() Macro, which accepts three parameters: • A pointer to the structure being iterated over • A pointer to the head of the list being iterated over • The name of the variable containing the list head structure The following code illustrates this macro: struct birthday *ptr; list for each entry(ptr, &birthday list, list) { /* on each iteration ptr points */ /* to the next birthday struct */ } Removing Elements from the Linked List Removing elements from the list involves using the list del() macro, which is passed a pointer to struct list head list del(struct list head *element) This removes element from the list while maintaining the structure of the remainder of the list. Perhaps the simplest approach for removing all elements from a linked list is to remove each element as you traverse the list. The macro list for each entry safe() behaves much 6 like list for each entry()except that it is passed an additional argument that maintains the value of the next pointer of the item being deleted. (This is necessary for preserving the structure of the list.) The following code example illustrates this macro: struct birthday *ptr, *next list for each entry safe(ptr,next,&birthday list,list) { /* on each iteration ptr points */ /* to the next birthday struct */ list del(&ptr->list); kfree(ptr); } Notice that after deleting each element, we return memory that was previously allocated with kmalloc() back to the kernel with the call to kfree(). Careful memory management - which includes releasingmemory to prevent memory leaks -is crucial when developing kernel-level code. Task 2: Assignment In the module entry point, create a linked list containing five struct birthday elements. Traverse the linked list and output its contents to the kernel log buffer. Invoke the dmesg command to ensure the list is properly constructed once the kernel module has been loaded. In the module exit point, delete the elements from the linked list and return the free memory back to the kernel. Again, invoke the dmesg command to check that the list has been removed once the kernel module has been unloaded. 7 Task 3: UNIX Shell and History Feature This task consists of designing a C program to serve as a shell interface that accepts user commands and then executes each command in a separate process. This project can be completed on any Linux, UNIX, orMac OS X system. A shell interface gives the user a prompt, after which the next command is entered. The example below illustrates the prompt osh> and the user’s next command: cat prog.c. (This command displays the file prog.c on the terminal using the UNIX cat command.) osh> cat prog.c One technique for implementing a shell interface is to have the parent process first read what the user enters on the command line (in this case, cat prog.c), and then create a separate child process that performs the command. Unless otherwise specified, the parent process waits for the child to exit before continuing. However, UNIX shells typically also allow the child process to run in the background, or concurrently. To accomplish this, we add an ampersand (&) at the end of the command. Thus, if we rewrite the above command as osh> cat prog.c & the parent and child processes will run concurrently. The separate child process is created using the fork() system call, and the user’s command is executed using one of the system calls in the exec() family (. A C program that provides the general operations of a command-line shell is supplied in Figure 3.1. The main() function presents the prompt osh-> and outlines the steps to be taken after input from the user has been read. The main() function continually loops as long as should run equals 1; when the user enters exit at the prompt, your program will set should run to 0 and terminate. This task 3 is organized into two parts: (1) creating the child process and executing the command in the child, and (2) modifying the shell to allow a history feature. 8 #include <stdio.h> #include <unistd.h> #define MAX LINE 80 /* The maximum length command */ int main(void) { char *args[MAX LINE/2 + 1]; /* command line arguments */ int should run = 1; /* flag to determine when to exit program */ while (should run) { printf("osh>"); fflush(stdout); /** * After reading user input, the steps are: * (1) fork a child process using fork() * (2) the child process will invoke execvp() * (3) if command included &, parent will invoke wait() */ } return 0; } Figure 3.1 Outline of simple shell. Task 3: Assignment 1 - Creating a Child Process The first task is to modify the main() function in Figure 3.1 so that a child process is forked and executes the command specified by the user. This will require parsing what the user has entered into separate tokens and storing the tokens in an array of character strings (args in Figure 3.1). For example, if the user enters the command ps -ael at the osh> prompt, the values stored in the args array are: args[0] = "ps" args[1] = "-ael" args[2] = NULL This args array will be passed to the execvp() function, which has the following prototype: execvp(char *command, char *params[]); Here, command represents the command to be performed and params stores the parameters to this command. For this project, the execvp() function should be invoked as execvp(args[0], args). Be sure to check whether the user included an & to determine whether or not the parent process is to wait for the child to exit. 9 Task 3: Assignment 2 - Creating a History Feature This task is meant to modify the shell interface program so that it provides a history feature that allows the user to access the most recently entered commands. The user will be able to access up to 10 commands by using the feature. The commands will be consecutively numbered starting at 1, and the numbering will continue past 10. For example, if the user has entered 35 commands, the 10 most recent commands will be numbered 26 to 35. The userwill be able to list the command history by entering the command history at the osh> prompt. As an example, assume that the history consists of the commands (from most to least recent): ps, ls -l, top, cal, who, date The command history will output: 6 ps 5 ls -l 4 top 3 cal 2 who 1 date Your program should support two techniques for retrieving commands from the command history: 1. When the user enters !!, the most recent command in the history is executed. 2. When the user enters a single ! followed by an integer N, the Nth command in the history is executed. Continuing our example from above, if the user enters !!, the ps command will be performed; if the user enters !3, the command cal will be executed. Any command executed in this fashion should be echoed on the user’s screen. The command should also be placed in the history buffer as the next command. The program should also manage basic error handling. If there are no commands in the history, entering !! should result in a message “No commands in history.” If there is no command corresponding to the number entered with the single !, the program should output "No such command in history." 10 Task 4: Linux Kernel Module for Listing Tasks In this task, you will write a kernel module that lists all current tasks in a Linux system. Be sure to complete the previous part of programming project given, which deals with creating Linux kernel modules, before you begin this project. The project can be completed using the Linux virtual machine. Iterating over Tasks Linearly The PCB in Linux is represented by the structure task struct, which is found in the <linux/sched.h> include file. In Linux, the for each process() macro easily allows iteration over all current tasks in the system: #include <linux/sched.h> struct task struct *task; for each process(task) { /* on each iteration task points to the next task */ } The various fields in task struct can then be displayed as the program loops through the for each process() macro. Task 4: Assignment Design a kernel module that iterates through all tasks in the system using the for each process() macro. In particular, output the task name (known as executable name), state, and process id of each task. (You will probably have to read through the task struct structure in <linux/sched.h> to obtain the names of these fields.) Write this code in the module entry point so that its contents will appear in the kernel log buffer, which can be viewed using the dmesg command. To verify that your code is working correctly, compare the contents of the kernel log buffer with the output of the following command, which lists all tasks in the system: ps -el. The two values should be very similar. Because tasks are dynamic, however, it is possible that a few tasks may appear in one listing but not the other. 11 Task 5: Iterating over Tasks with a Depth-First Search Tree The portion of this project involves iterating over all tasks in the system using a depth-first search (DFS) tree. (As an example: the DFS iteration of the processes in following Figure 3.2 is 1, 8415, 8416, 9298, 9204, 2, 6, 200, 3028, 3610, 4005.) Figure 3.2 A tree of processes on a typical Linux system. Linux maintains its process tree as a series of lists. Examining the task struct in <linux/sched.h>, we see two struct list head objects: children and sibling These objects are pointers to a list of the task’s children, as well as its siblings. Linux also maintains references to the init task (struct task struct init task). Using this information as well as macro operations on lists, we can iterate over the children of init as follows: struct task struct *task; struct list head *list; list for each(list, &init task->children) { task = list entry(list, struct task struct, sibling); /* task points to the next child in the list */} 12 The list for each() macro is passed two parameters, both of type struct list head: • A pointer to the head of the list to be traversed • A pointer to the head node of the list to be traversed At each iteration of list for each(), the first parameter is set to the list structure of the next child. We then use this value to obtain each structure in the list using the list entry() macro. Task 5: Assignment Beginning from the init task, design a kernel module that iterates over all tasks in the system using a DFS tree. Just output the name, state, and pid of each task. Perform this iteration in the kernel entry module so that its output appears in the kernel log buffer. If you output all tasks in the system, you may see many more tasks than appear with the ps -ael command. This is because some threads appear as children but do not show up as ordinary processes. Therefore, to check the output of the DFS tree, use the command ps –eLf This command lists all tasks - including threads - in the system. To verify that you have indeed performed an appropriate DFS iteration, you will have to examine the relationships among the various tasks output by the ps command.

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

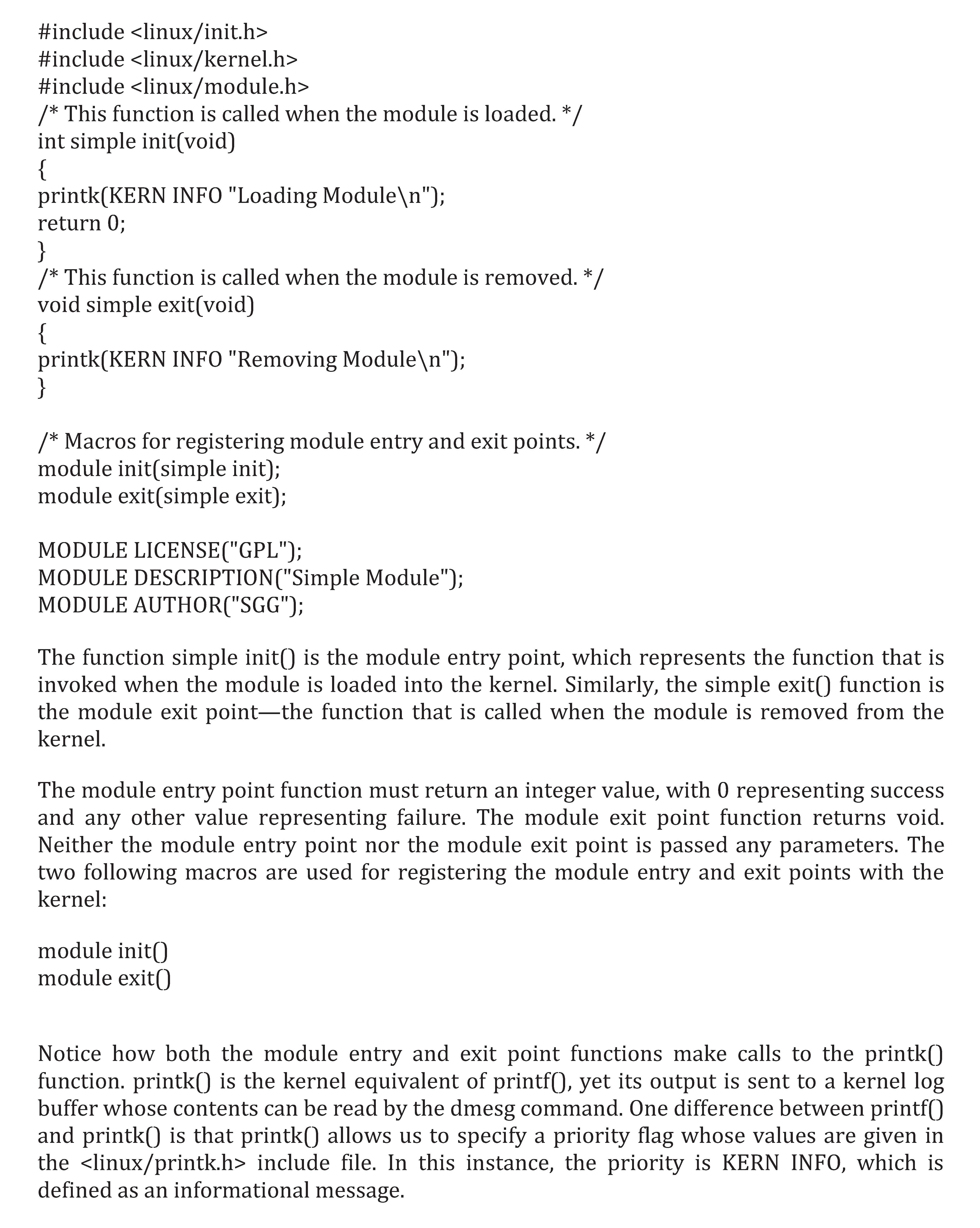

#include <linux/init.h>
#include <linux/kernel.h>
#include <linux/module.h>

/* This function is called when the module is loaded. */
int simple_init(void)
printk(KERN_INFO "Loading Module\n");
return 0;

/* This function is called when the module is removed. */
void simple_exit(void)
printk(KERN_INFO "Removing Module\n");

/* Macros for registering module entry and exit points. */
