QuestionQuestion

Transcribed TextTranscribed Text

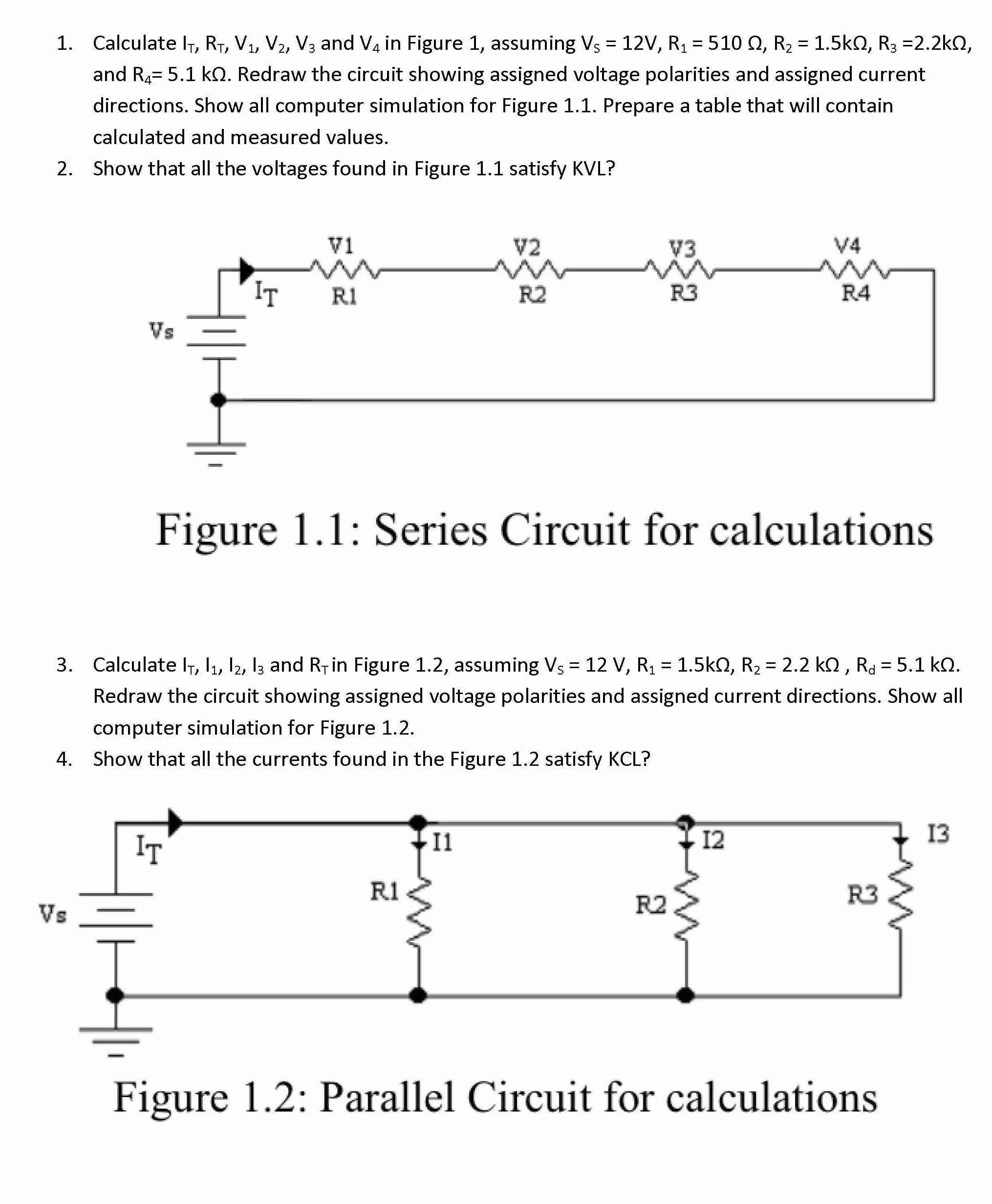

1. Calculate 1, RT, V1, V2, V2 and V. in Figure 1, assuming V3 = 12V, R1 = 5100, R2 = 1.5kQ, R2 =2.2k0, and R4= 5.1 kQ. Redraw the circuit showing assigned voltage polarities and assigned current directions. Show all computer simulation for Figure 1.1. Prepare a table that will contain calculated and measured values. 2. Show that all the voltages found in Figure 1.1 satisfy KVL? V1 V2 V3 V4 IT R1 R2 R3 R4 Vs Figure 1.1: Series Circuit for calculations 3. Calculate 1, l1, I2, la and RT in Figure 1.2, assuming V3 = 12 V, R1 = 1.5kQ, R2 = 2.2 k0, Rd = 5.1 ko. Redraw the circuit showing assigned voltage polarities and assigned current directions. Show all computer simulation for Figure 1.2. 4. Show that all the currents found in the Figure 1.2 satisfy KCL? IT Il I2 13 R1 R2 R3 Vs - Figure 1.2: Parallel Circuit for calculations

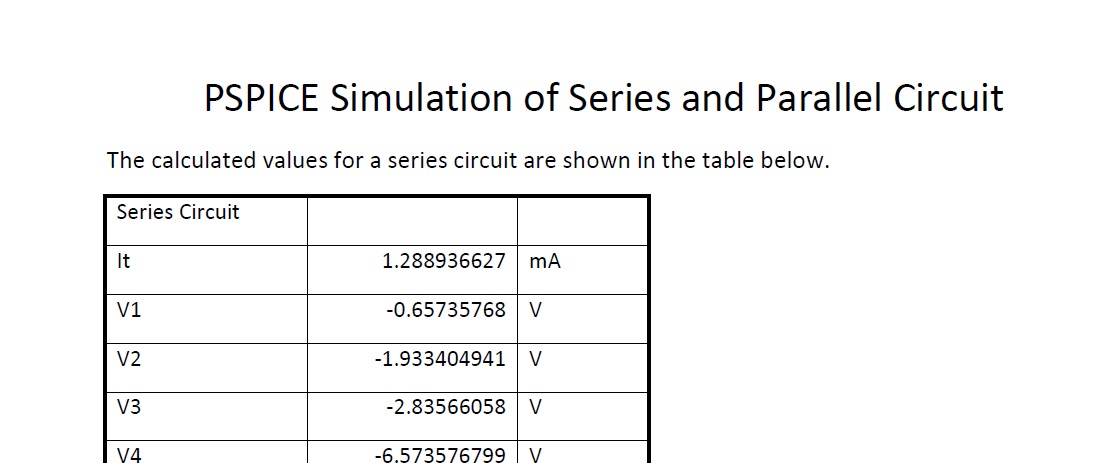

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

Circuit Calculation
    $18.00 for this solution
