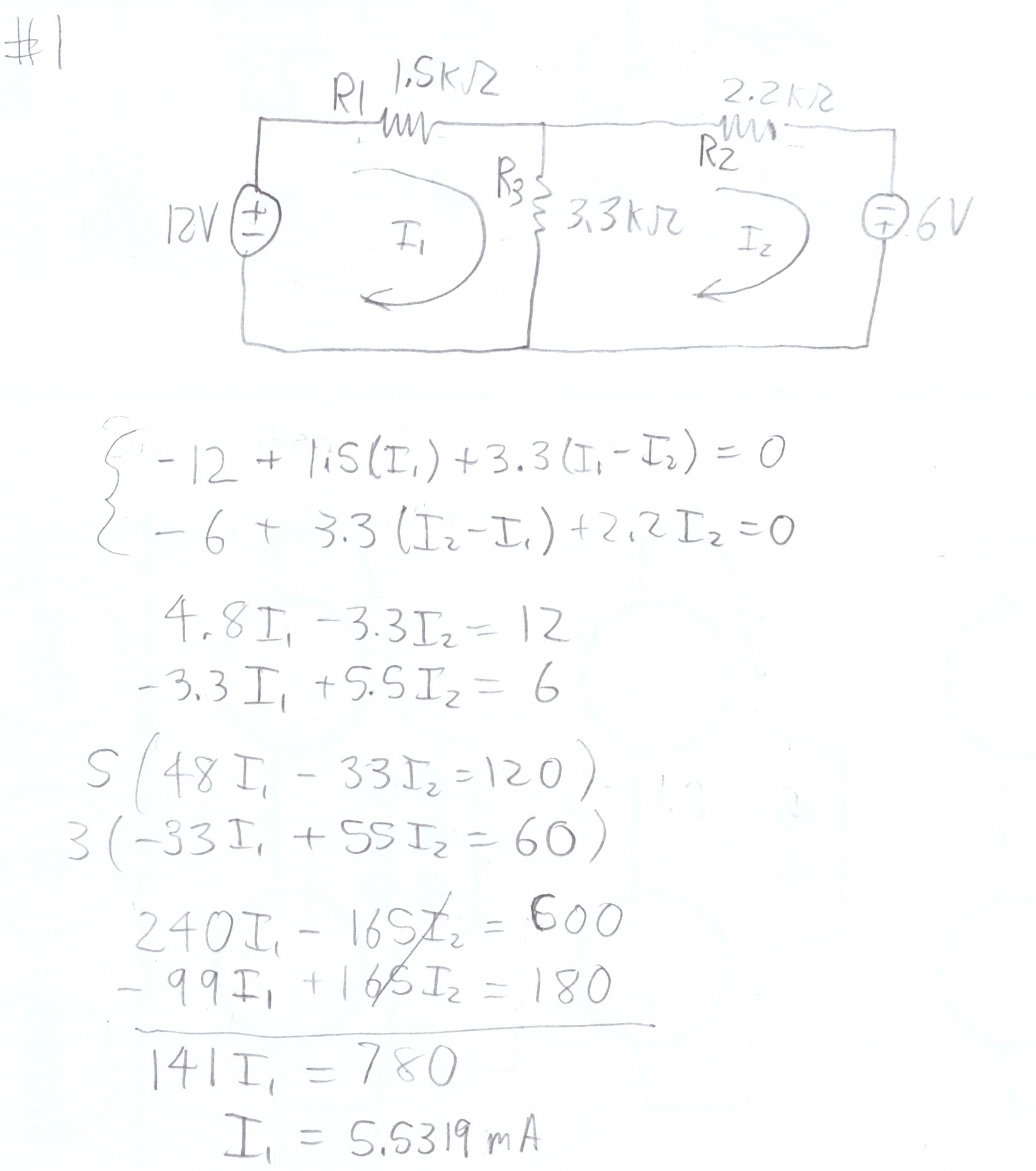

1. Calculate the value of each voltage and current of Figure 3.1 with VS1= 12 V, VS2= 6 V, R1= 1.5 kΩ, R2=2.2kΩ, R3= 3.3 kΩ. Use the nodal voltage method and the mesh current method to prove your results. Show all computer simulation.

2. Using Thevenin equivalent of the circuit to the left of RL in Figure 3.2, calculate RTH, VTH and IL, with VS= 15 V, R1= 2.2 kΩ R2= 10 kΩ, R3= 5.6 kΩ, R4= 4.7 kΩ R5= 3.9 kΩ , and RL= 1.5 kΩ. Show all computer simulation.

3. Using Norton's equivalent of the circuit of Figure 3.3, calculate RN, IN, and IL, with VS1= 12 V, VS2 = 10 V, R1= 2.2 kΩ R2= 3.3 kΩ, R3= 4.7 kΩ R4 = 6.8 kΩ R5= 10 kΩ and RL= 15 kΩ. Show all computer simulation

4. In the circuit of Figure 3.4, find the response of IR1 IR2, IR3, 1R4, VR1, VR2, VR3 and VR4 using superposition; with VS1= 15 V, VS2= 10 V, R1= 1 kΩ R2= 2.2 kΩ, R3= 1 kΩ R4= 3.3 kΩ. Show all computer simulation.

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

Circuit Analysis
