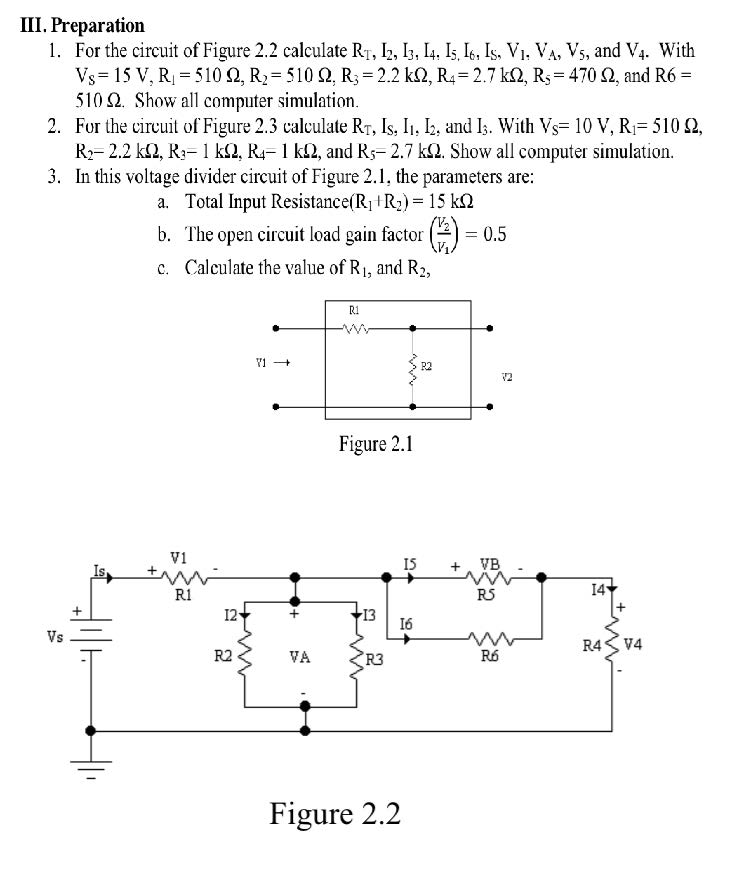

III. Preparation 1. For the circuit of Figure 2.2 calculate RT, I2, I3, I4, Is, I6, Is, V1, Vs. Vs, and V4. With Vs = 15 V, R1 = 510 9 2, R2 = 510 Q2, R3 = 2.2 kQ, R4 = 2.7 Rs = 470 02, and R6 = 510 Q. Show all computer simulation. 2. For the circuit of Figure 2.3 calculate RT, Is, I1, I2, and l3. With Vs= 10 V, R1=5100, R2- 2.2 kD2, R3- 1 k$2, R4= 1 k12, and R5=2 2.7 kf2. Show all computer simulation. 3. In this voltage divider circuit of Figure 2.1, the parameters are: a. Total Input Resistance(Ri+R2) = 15 k12 b. The open circuit load gain factor (3) = 0.5 c. Calculate the value of R1, and R2, R1 V1 R2 V2 Figure 2.1 V1 Is + I5 + VB R1 R5 14 + I2 + + I3 I6 Vs R4 V4 R2 VA R3 R6 - - Figure 2.2
