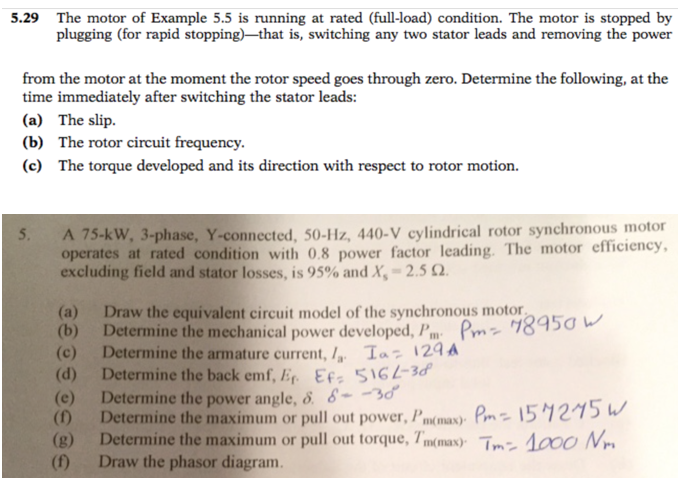

5.29 The motor of Example 5.5 is running at rated (full-load) condition. The motor is stopped by plugging (for rapid stopping)-that is, switching any two stator leads and removing the power from the motor at the moment the rotor speed goes through zero. Determine the following, at the time immediately after switching the stator leads: (a) The slip. (b) The rotor circuit frequency. (c) The torque developed and its direction with respect to rotor motion. 5. A 75-kW, 3-phase, Y-connected, 50-Hz, 440-V cylindrical rotor synchronous motor operates at rated condition with 0.8 power factor leading. The motor efficiency, excluding field and stator losses, is 95% and Xs = 2.5.2. (a) Draw the equivalent circuit model of the synchronous motor. (b) Determine the mechanical power developed, Pm- Pm= 78950 (c) Determine the armature current, la Ia = 129A (d) Determine the back emf, Er. Ef= 516L-38 (e) Determine the power angle, S. 8- -30 (f) Determine the maximum or pull out power, P, m(max) Pm= 1572751 W (g) Determine the maximum or pull out torque, Tm(max) Tm= 1000 Nm (f) Draw the phasor diagram.

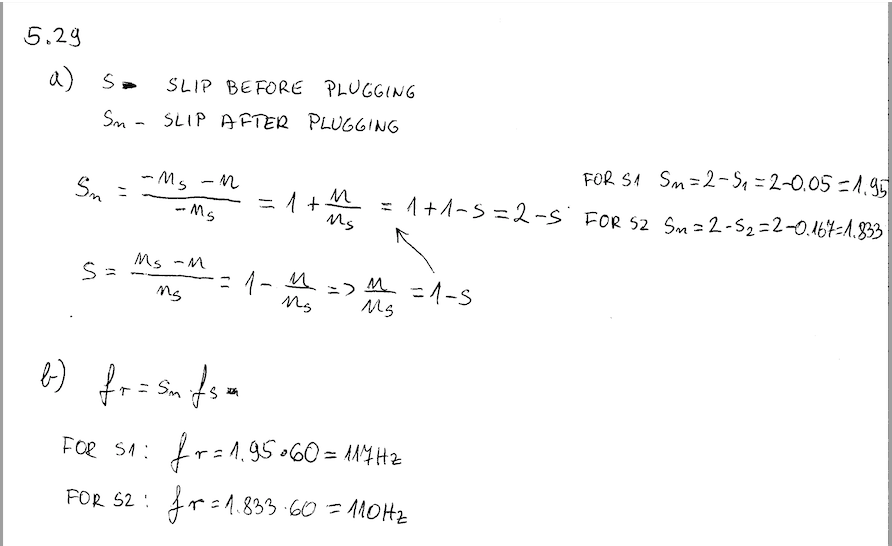

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.
