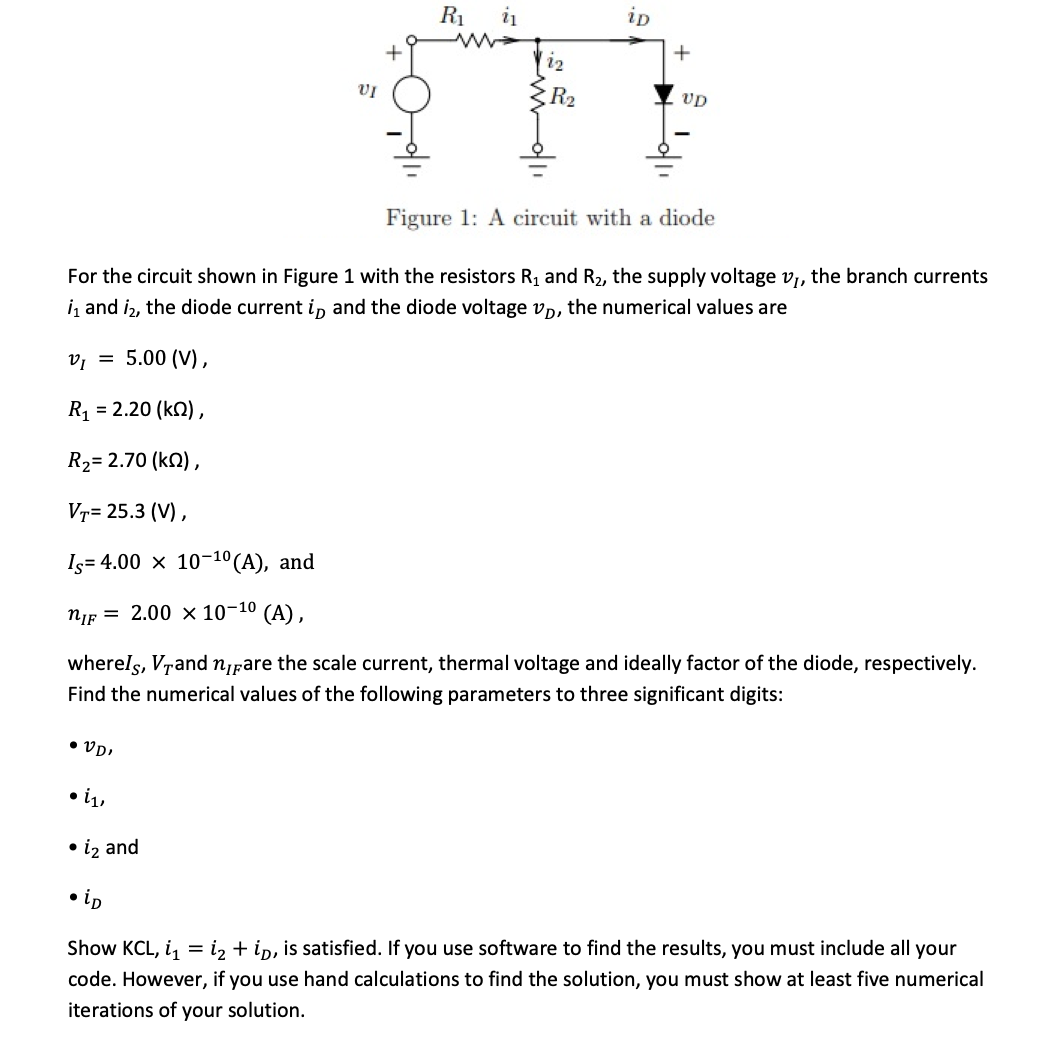

R1 is iD WA + 12 + 215 R2 on - - - Figure 1: A circuit with a diode For the circuit shown in Figure 1 with the resistors R1 and R2, the supply voltage V,, the branch currents i1 and iz the diode current iD and the diode voltage Vp. the numerical values are V, - 5.00 (V). R1 2.20 (ko), R2 2.70 (ko), Vr=25.3 (V), =4.00 x 10-1Ā°(A), and - 2.00 x 10-10 (A), wherels, Vrand ngrare the scale current, thermal voltage and ideally factor of the diode, respectively. Find the numerical values of the following parameters to three significant digits: Vp, 11, i2 and Ip Show KCL, 4 - i2 + 10. is satisfied. If you use software to find the results, you must include all your code. However, if you use hand calculations to find the solution, you must show at least five numerical iterations of your solution.

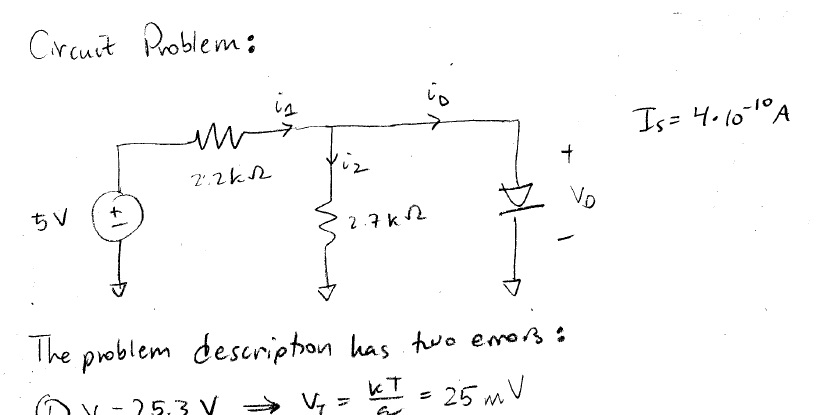

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

Diode Circuit Analysis
