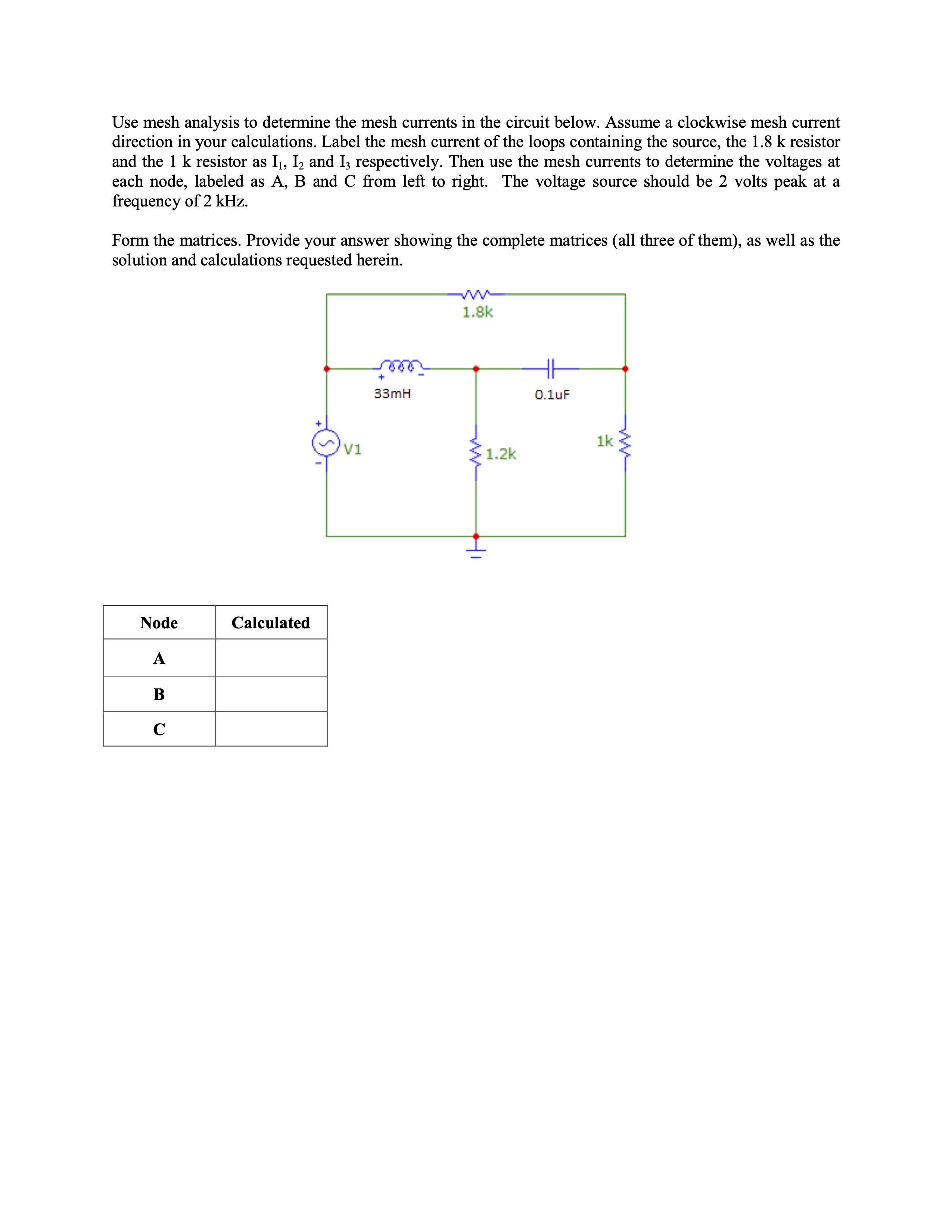

Use mesh analysis to determine the mesh currents in the circuit below. Assume a clockwise mesh current direction in your calculations. Label the mesh current of the loops containing the source, the 1.8 k resistor and the 1 k resistor as I1, I2 and I3 respectively. Then use the mesh currents to determine the voltages at each node, labeled as A, B and C from left to right. The voltage source should be 2 volts peak at a frequency of 2 kHz. Form the matrices. Provide your answer showing the complete matrices (all three of them), as well as the solution and calculations requested herein. Node Calculated A B C

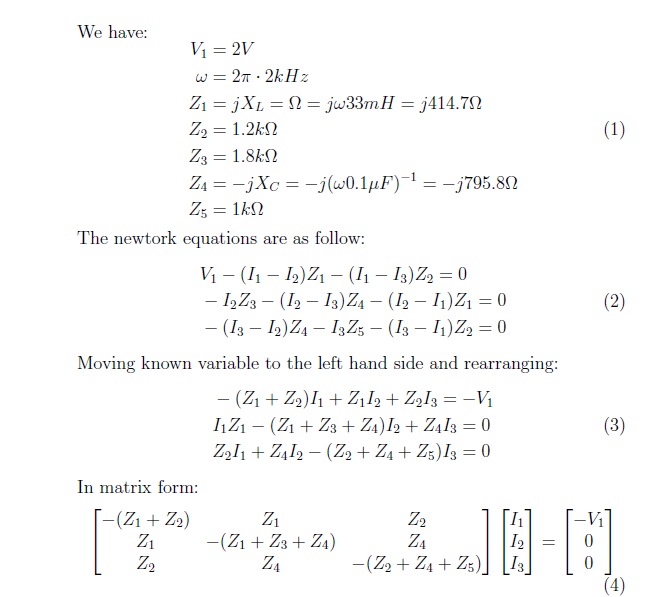

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.
