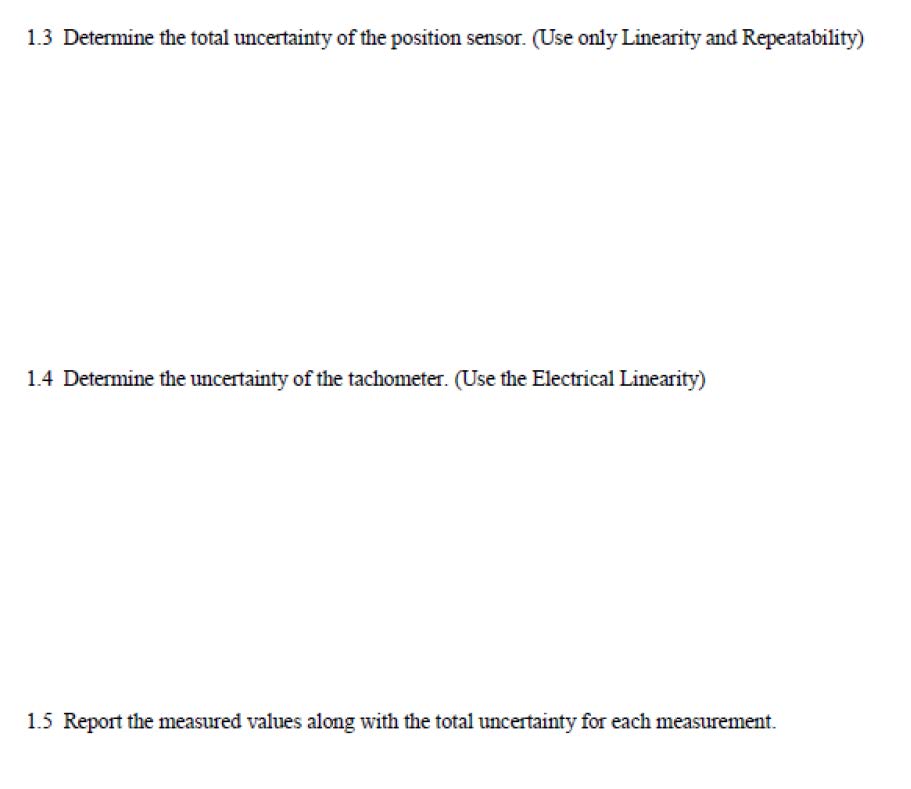

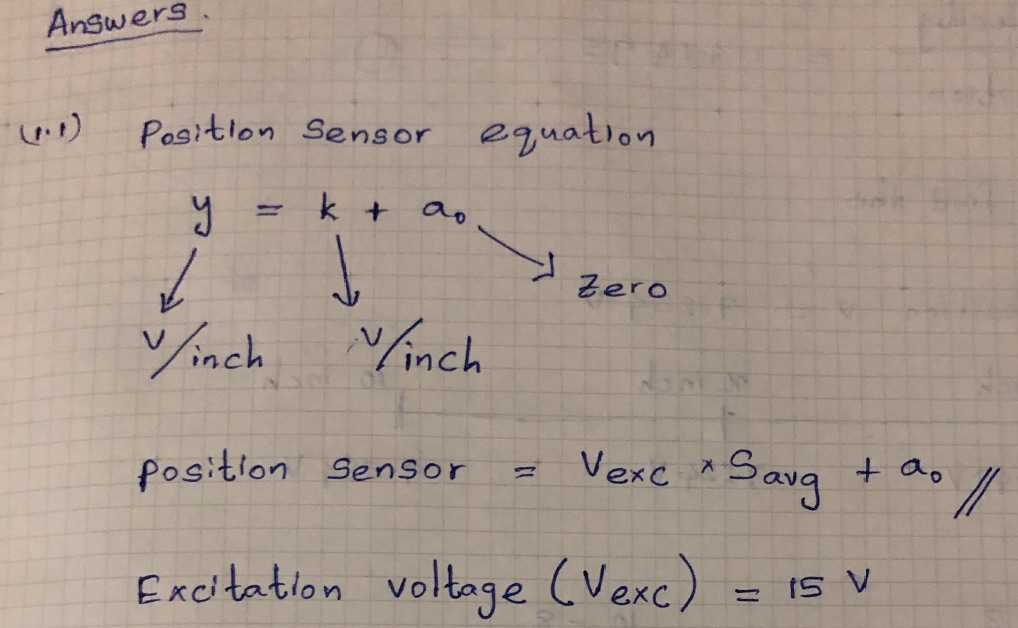

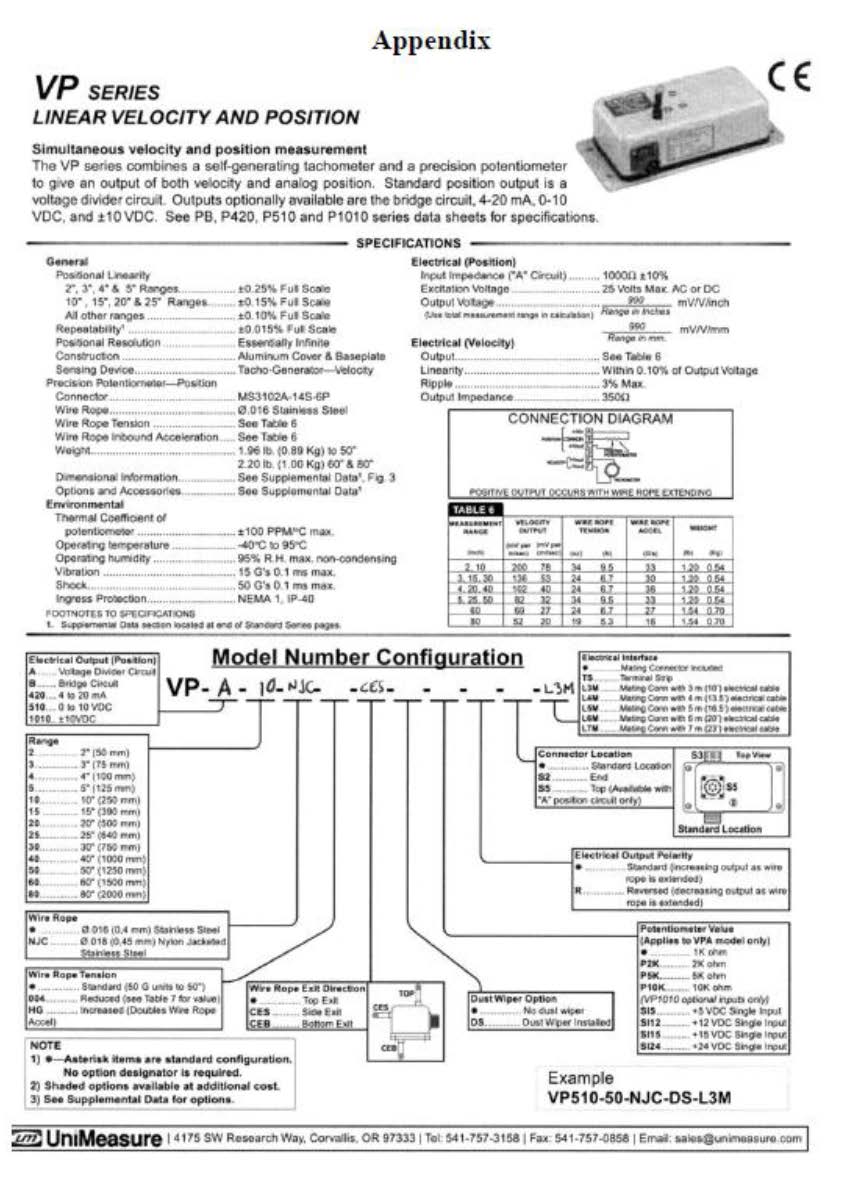

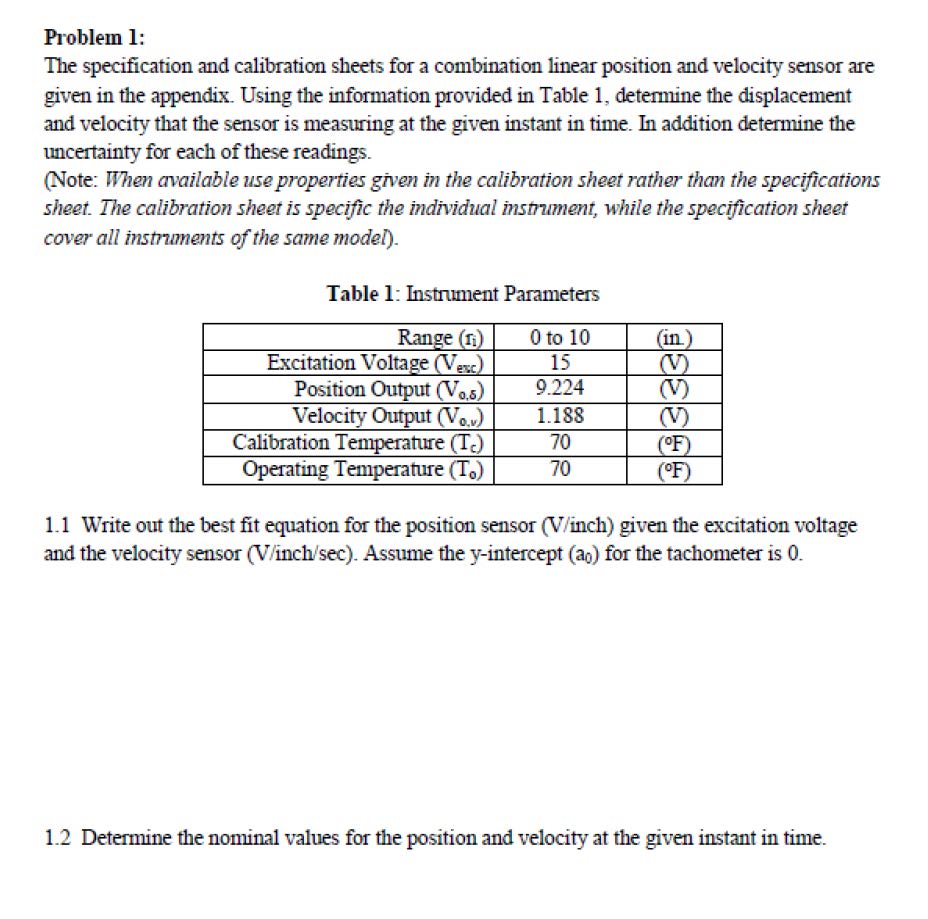

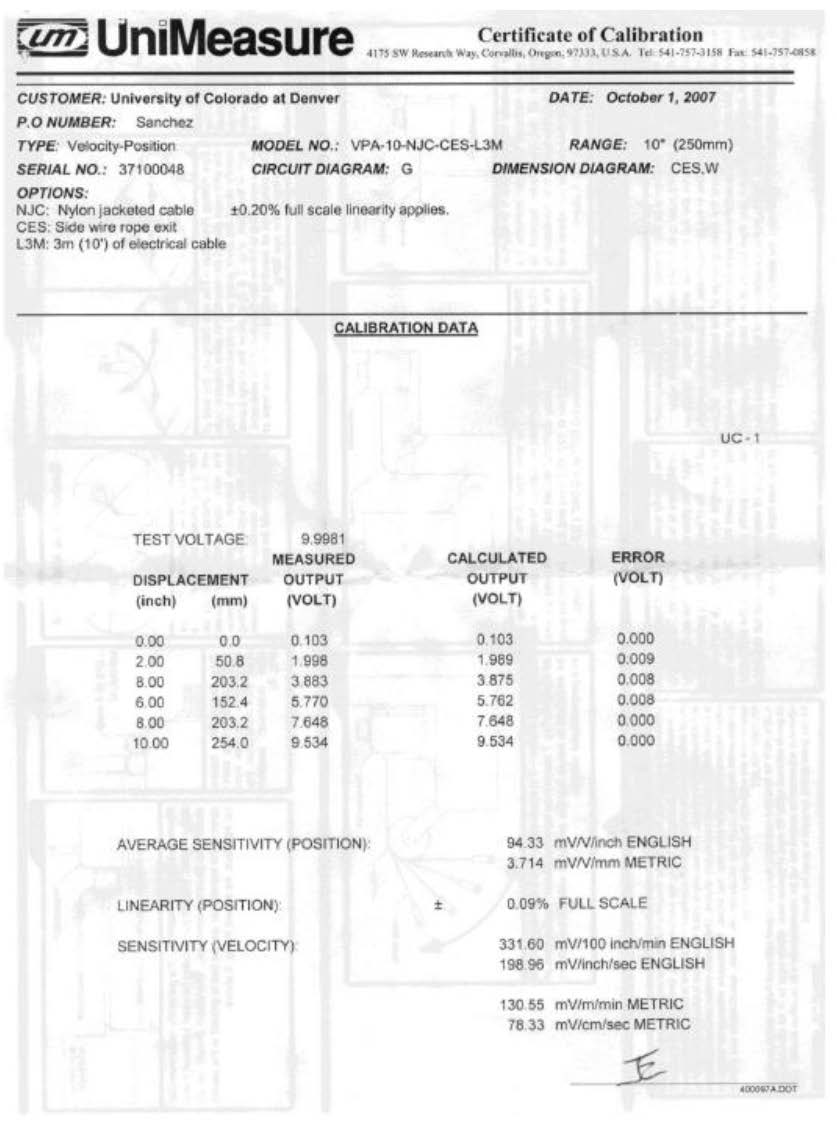

Problem 1: The specification and calibration sheets for a combination linear position and velocity sensor are given in the appendix. Using the information provided in Table 1, determine the displacement and velocity that the sensor is measuring at the given instant in time. In addition determine the uncertainty for each of these readings. (Note: When available use properties given in the calibration sheet rather than the specifications sheet. The calibration sheet is specific the individual instrument, while the specification sheet cover all instruments of the same model). Table 1: Instrument Parameters Range (ni) 0 to 10 (in.) Excitation Voltage (Verc) 15 (v) Position Output (Voss 9.224 (V) Velocity Output (Vo.v) 1.188 (V) Calibration Temperature (Ic) 70 (°F) Operating Temperature (To) 70 (°F) 1.1 Write out the best fit equation for the position sensor (V/inch) given the excitation voltage and the velocity sensor (V/inch/sec). Assume the y-intercept (ao) for the tachometer is 0. 1.2 Determine the nominal values for the position and velocity at the given instant in time. 1.3 Determine the total uncertainty of the position sensor. (Use only Linearity and Repeatability) 1.4 Determine the uncertainty of the tachometer. (Use the Electrical Linearity) 1.5 Report the measured values along with the total uncertainty for each measurement. Appendix VP CE SERIES LINEAR VELOCITY AND POSITION Simultaneous velocity and position measurement The VP series combines a self-generating tachometer and a precision potentiometer to give an output of both velocity and analog position. Standard position output is a voltage divider circuit. Outputs optionally available are the bridge circuit, 4-20 mA. 0-10 VDC. and 10VDC See PB, P420, P510 and P1010 series data sheets for specifications. SPECIFICATIONS General Electrical (Position) Positional Linearity Input impedance ("A" Circuit) 10000 *10% 4°& 5° Ranges. 10.25% Full Scale Excitation Voltage 25 Volts Max AC or DC 10", 15", 20" 25" Ranges $0.15% Full Scale Output Voltage 990 mV/V/inch All other ranges +0.10% Full Scale (Jus total range in Range - inches Repeatability $0.015% Full Scale 990 nV/Vimm Positional Resolution Essentially Infinite Electrical (Velocity) Range in mm. Construction Aluminum Cover & Basepiate Output. See Table 6 Sensing Device Tacho-Generator-Velocity Linearity Within 0.10% of Output Voltage Precision Potentiornetes-Position Ripple 3% Max Connector MS3102A-14S-6P Output Impedance 3500 Wire Rope 0.016 Stainiess Steel Wire Rope Tension See Table 6 CONNECTION DIAGRAM Wire Rope inbound Acceleration See Table 6 Weight 1.96 lb. 89 Kg) to 50° - 2.20 ib (1.00 Kg) 60° & 80° Dimensional information See Supplemental Data¹. Fig 3 R Options and Accessories See Supplemental Data' POBITIVE OUTPUT OCCURS WITH WIRE ROPE EXTENDINO Environmental TABLE e Thermal Coefficient of war BOPE was BOM potentiometer 100 PPMPC max. ADDEL - Operating temperature -40°C to 95C - - - - - - - - Operating humidity 95% R.H. max. non-condensing * Vibration 15 G's 0.1 ms max. 2.10 200 78 34 9.5 13 1.22.0.54 1,15.30 136 53 24 6,7 30 1.22.0.54 Shock 50 G's 0.1 ma max. 4.20.40 562 40 24 6.7 36 1.20.0.54 ingress Protection NEMA 1, IP-40 1.25.50 82 32 34 9.5 33 1.20.0.54 FOOTNOTES 10 SPECIFICATIONS 60 59 27 24 6.7 27 1. Supplemental Data section located at and of Standard Series pages to 52 20 19 5.3 15 1,54 070 Electrical Output (Position) Model Number Configuration Elactrical interfase A Voltage Divider Circuit . Mating included TS Tarminal Strip Bridge Circuit 420 to 20 mA VP- A - O-NJC CES. - - - L3M LSM Mating Carm with 3 - (10) slectrical cable LAM Maring Carn with - (13.5) electrical cable 510 lo LSM Mating Care with 5 - (16) cable 1010 10V00 LGM Mating Cann with - (201) electrical catie LTM Mating Comm with - an sabse Range 2 2° (50 mm) Connector Location View 3 y (75 mm) . Standard Location - 4 (100 mm) $2 End 5 5° (125 mm) ss Top (Available with (c)iss 10 10° (250 mm) " position circuit only) . 15 15* (190 mm) . 20 20° (500 nm) Standard Location 25 25° (640 mm) 30 30° (750 nm) 40 40° (1000 mm) Electrical Output Polarity 50 sor (1250 mm) . Standard (incresting output as wire 60 60 (1500 mm) rope is exiended) 80 80° (2000 mm) R Revensed (decreasing estout as wire rope is extended) Wire Rope . 3016 (0.4 mm) Stainless Steel Potentionster Value NJC 0 018 (0,45 mm) Nylon Jacksited (Applies to VPA model only) Stainless Steel . 1K ohen PIK 2x ohm Wire Rope Tension PSK. 5K ohm Standard (50 G unita to 50") Wire Rope ExR Direction . HOK 10K chm 004 Reduced (see Table 7 for value) TOP . Top Exit Dust Wiper Option (VP1010 optional inputi only) HG increased (Doubles Wire Rope ces Side Exit ces No dust wiper sis Single Input Accel) CEB Bottom Exit os Dust Wiper Installed SI12 VDC Single Input 5115 15VDC Single Input NOTE ces SI24 *24VDC Singla Input 1) -Asterisk itema are standard configuration No option designator is required. 2) Shaded options available at additional cost Example 3) See Supplemental Data for options VP510-50-NJC-DS-L3M un UniMeasure 14175 SW Research Way, Corvallis, OR 97333 I Tel 541-757-3158 Fax: 541-757-0858 I Email:salesgunimeasure.com um) UniMeasure Certificate of Calibration 4175 SW Research Way, Corvallis, Oregon, 9733,USA Tel 541-257-3158 Fax 541-757-4858 CUSTOMER: University of Colorado at Denver DATE: October 1, 2007 P.O NUMBER: Sanchez TYPE: Velocity-Position MODEL NO.: VPA-10-NJC-CES-L3M RANGE: 10* (250mm) SERIAL NO.: 37100048 CIRCUIT DIAGRAM: G DIMENSION DIAGRAM: CES,W OPTIONS: NJC: Nylon jacketed cable +0.20% full scale linearity applies. CES: Side wire rope exit L3M: 3m (10') of electrical cable CALIBRATION DATA UC- 1 TEST VOLTAGE 9.9981 MEASURED CALCULATED ERROR DISPLACEMENT OUTPUT OUTPUT (VOLT) (inch) (mm) (VOLT) (VOLT) 0.00 0.0 0.103 0.103 0.000 2.00 50.8 1.998 1.989 0.009 8.00 203.2 3.883 3.875 0.008 6.00 152.4 5.770 5.762 0.008 8.00 203.2 7.648 7.648 0.000 10.00 254.0 9.534 9.534 0.000 AVERAGE SENSITIVITY (POSITION): 94.33 mV/Vinch ENGLISH 3.714 mV/V/mm METRIC LINEARITY (POSITION): + 0.09% FULL SCALE SENSITIVITY (VELOCITY): 331.60 mV/100 inch/min ENGLISH 198.96 mV/inch/sec ENGLISH 130.55 mV/m/min METRIC 78.33 mV/cm/sec METRIC E
