QuestionQuestion

Transcribed TextTranscribed Text

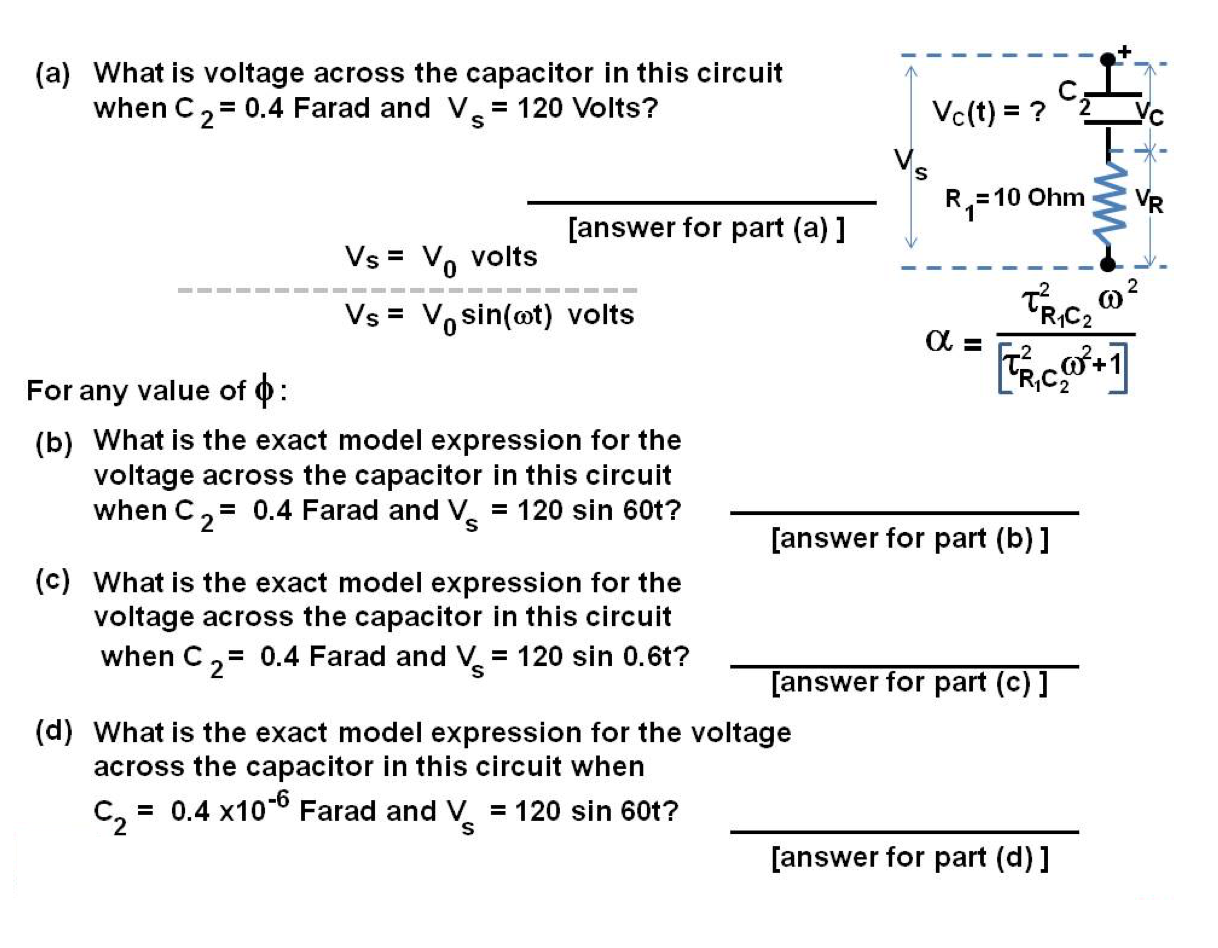

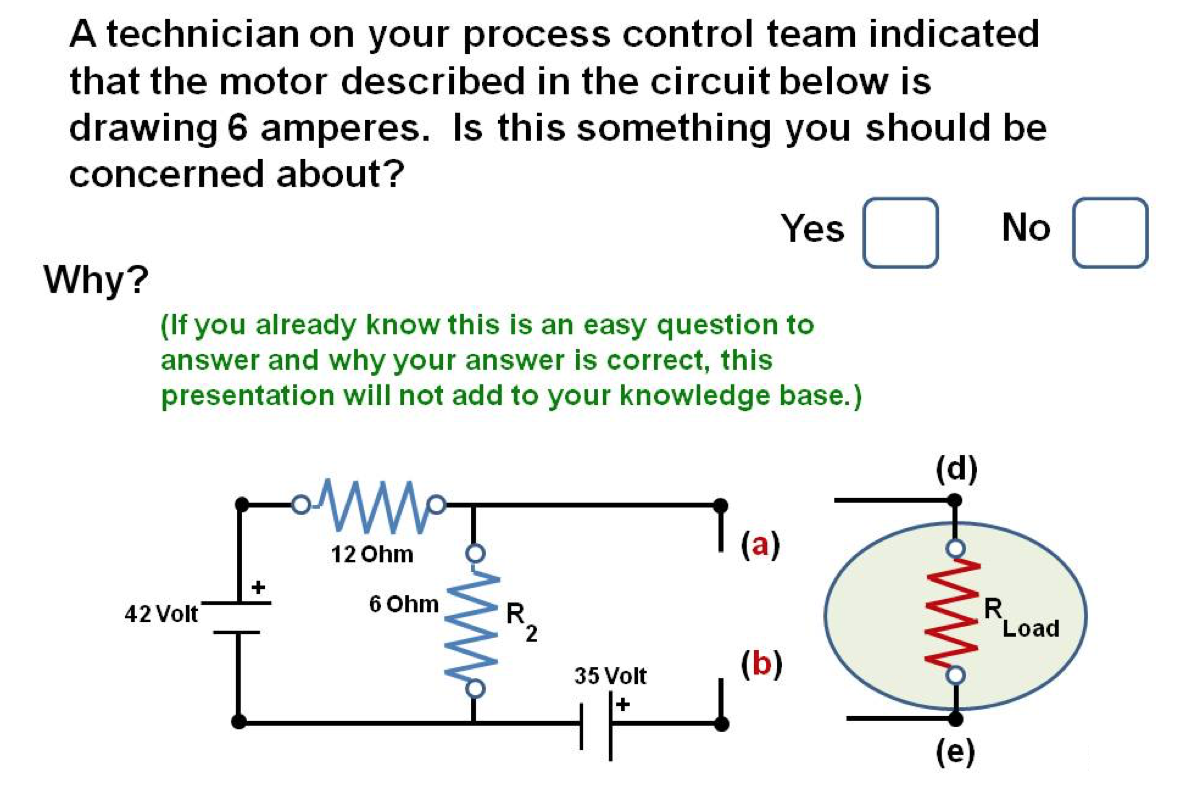

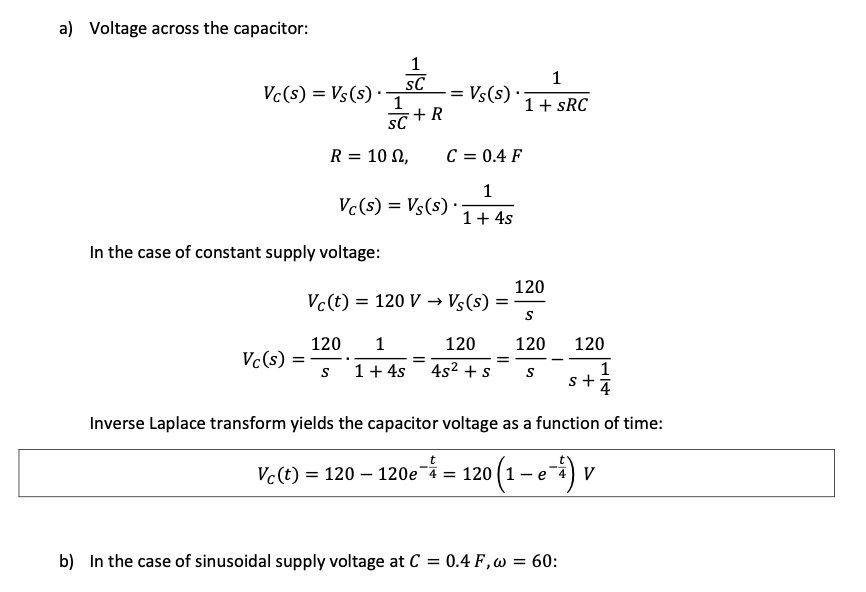

+ (a) What is voltage across the capacitor in this circuit when C2=0.4 Farad and Vs = 120 Volts? Vc(t) = ? C 2 Yc - Vs R1 = 10 Ohm VR [answer for part (a) ] Vs = Vo volts 2 w Vs = Vosin(wt) volts R1C2 a 2 1 For any value of 0 : (b) What is the exact model expression for the voltage across the capacitor in this circuit when C2 = 0.4 Farad and Vs = 120 sin 60t? [answer for part (b) ] (c) What is the exact model expression for the voltage across the capacitor in this circuit when C 2 = 0.4 Farad and Vs = 120 sin 0.6t? [answer for part (c) ] (d) What is the exact model expression for the voltage across the capacitor in this circuit when C2 = 0.4 x10-6 Farad and V S 120 sin 60t? = [answer for part (d) ] A technician on your process control team indicated that the motor described in the circuit below is drawing 6 amperes. Is this something you should be concerned about? Yes No Why? (If you already know this is an easy question to answer and why your answer is correct, this presentation will not add to your knowledge base.) (d) 12 Ohm (a) + 42 Volt 6 Ohm R R 2 Load 35 Volt (b) + (e)
