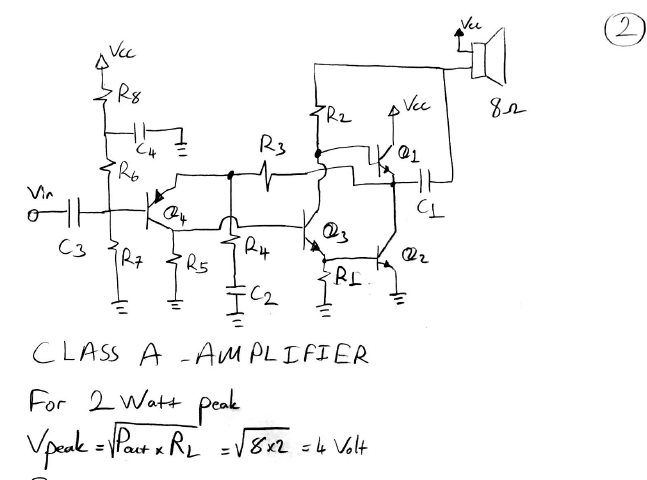

Your EV runs on two special 12-Volt batteries made from batteries licensed from Unobtainium Inc. Your EV has a concert audio microphone. The Thevenin Equivalent of the microphone is represented by a 50m Vop voltage source with a 50 Ω series resistance. Your need to design an amplifier to drive one of the 8 Ω speakers in your EV. Design a linear amplifier for your EV that delivers a peak power of 2 Watts into the speaker.

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.
