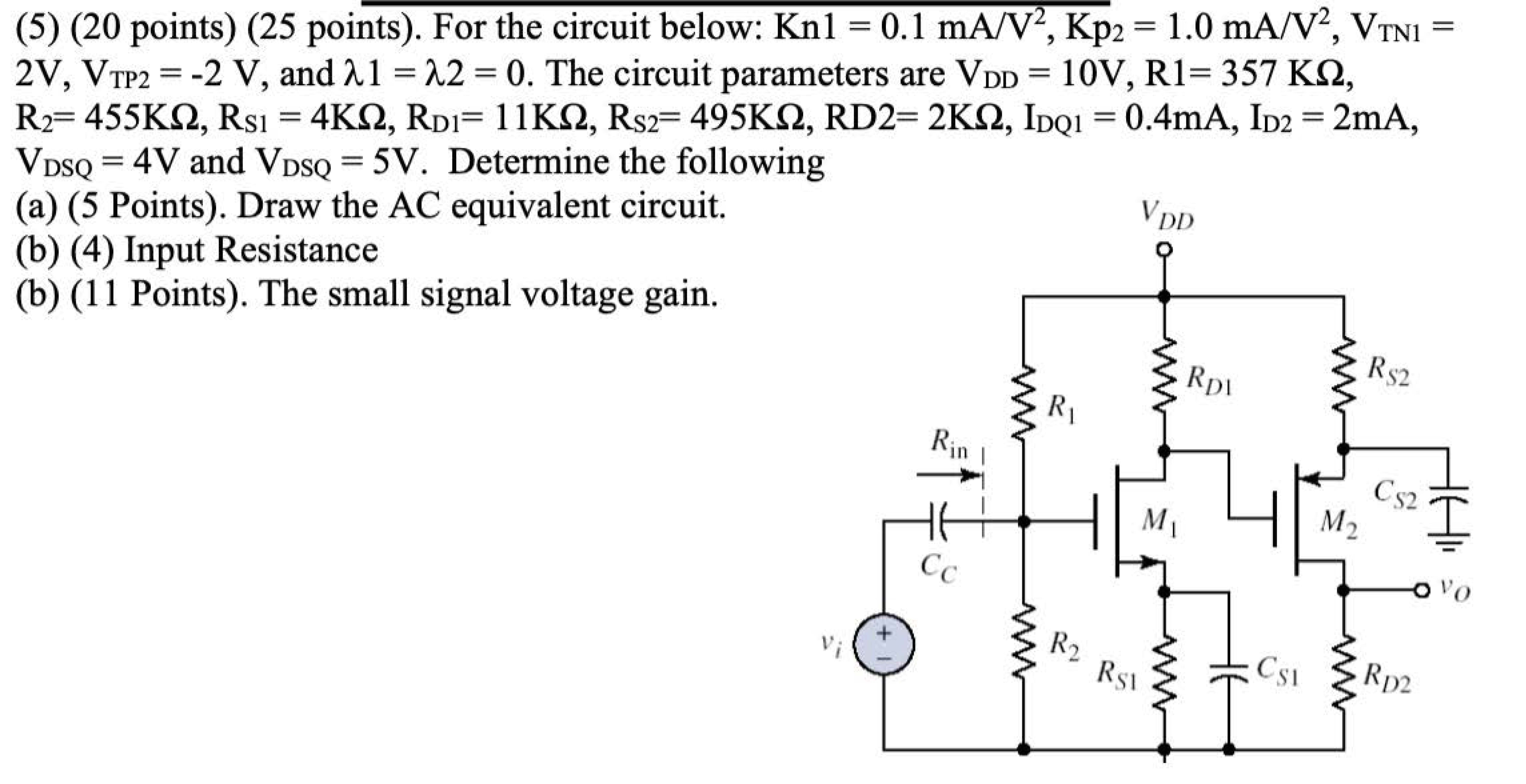

(5) (20 points) (25 points). For the circuit below: Knl = 0.1 mA/V², Kp2 = 1.0 mA/V², VTN1 = 2V, VTP2 = - 2 V, and 21 = 22 = 0. The circuit parameters are VpD = 10V, R1= 357 KQ, R2 = 455K0, Rs1 = 4K0, Rd1= 11K0, Rs2= 495K02, RD2=2KN, IDQ1 = 0.4mA, ID2 = 2mA, Vpsq = 4V and Vpsq = 5V. Determine the following (a) (5 Points). Draw the AC equivalent circuit. VpD (b) (4) Input Resistance O (b) (11 Points). The small signal voltage gain. RDI R52 R1 R in CS2 M1 M2 I Cc Vo vi + - R2 Rs1 Cs1 RD2 6. (20 points) For the circuit below. ß = 75, VEB(on) = 0.7 V, Kp= 2mA/V², VA= 00, VTP = 4 V, 2=0. (a) (6 points) Draw the AC equivalent circuit. (b) (14 points) Determine the voltage gain of the p-type BJT. (c) (Optional 10 points) Determine the voltage gain of the circuit. o 15 V 120 kf2 18 kS2 C2 5.1 KS2 I k$2 C, C1 01 Uo + M, 2 "s I KS2 - 36 k12 - - -

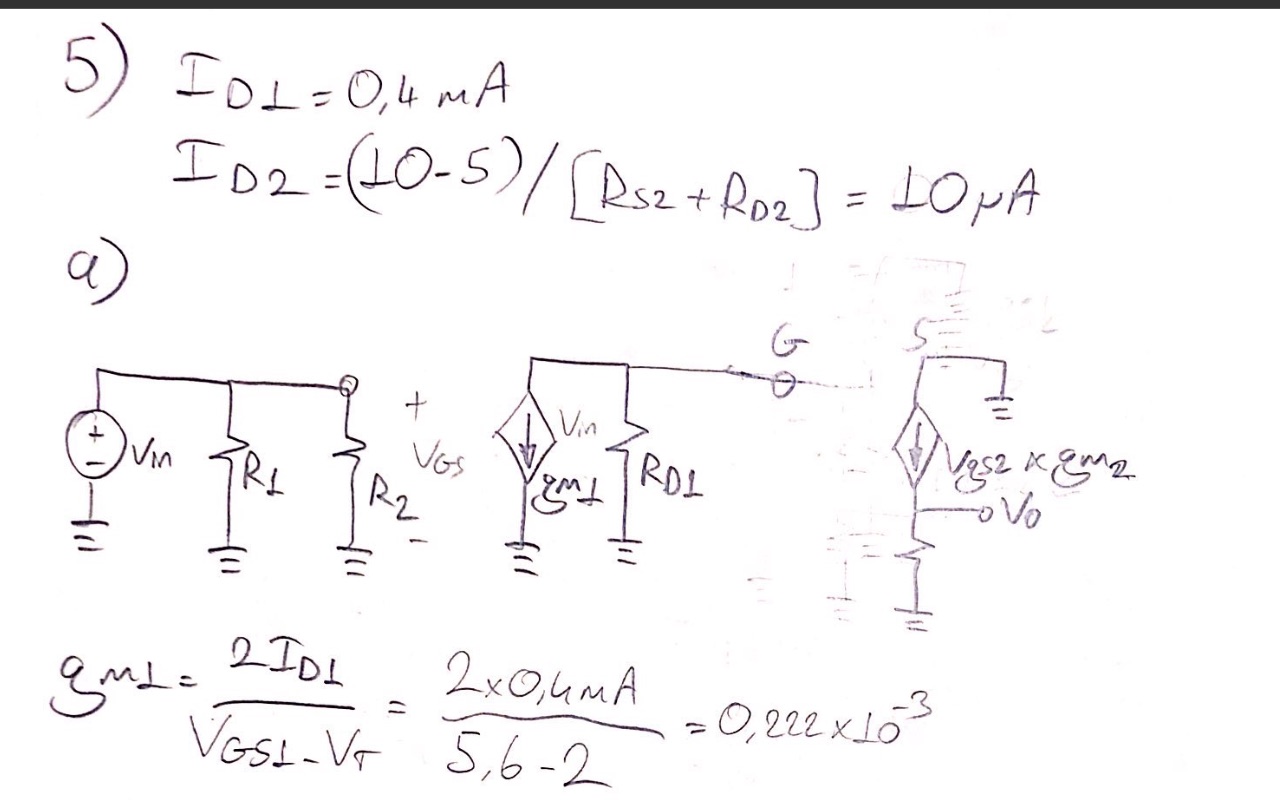

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.

    $75.00
    for this solution

    PayPal, G Pay, ApplePay, Amazon Pay, and all major credit cards accepted.
