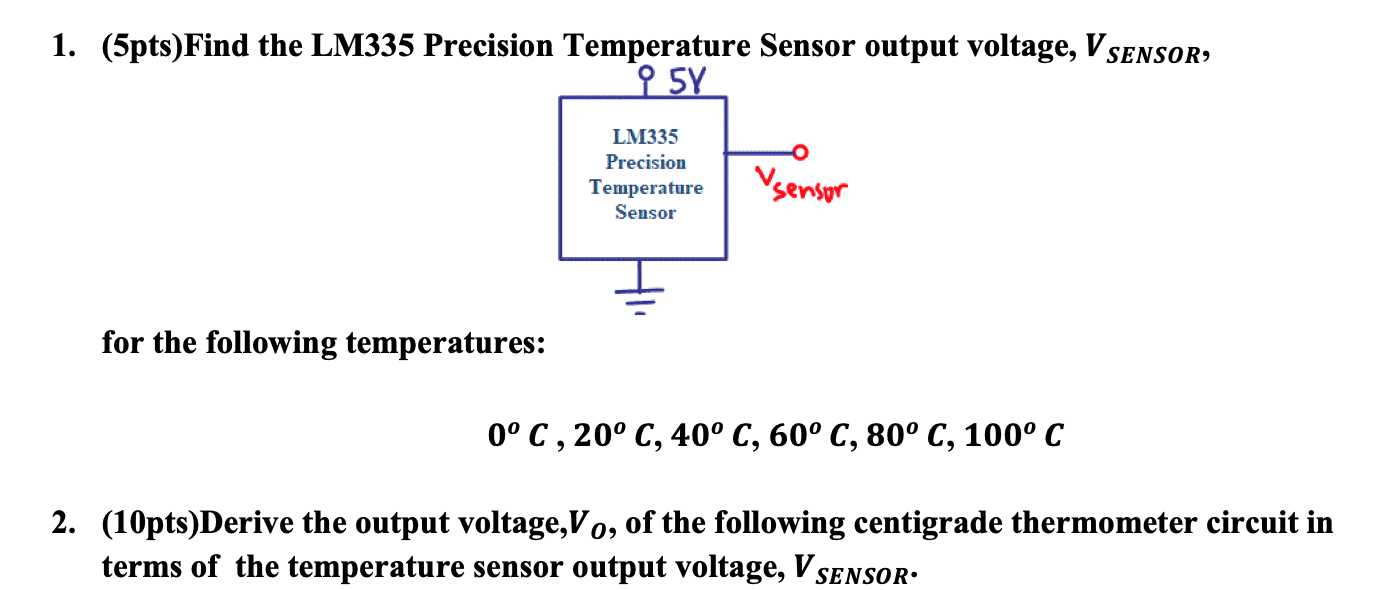

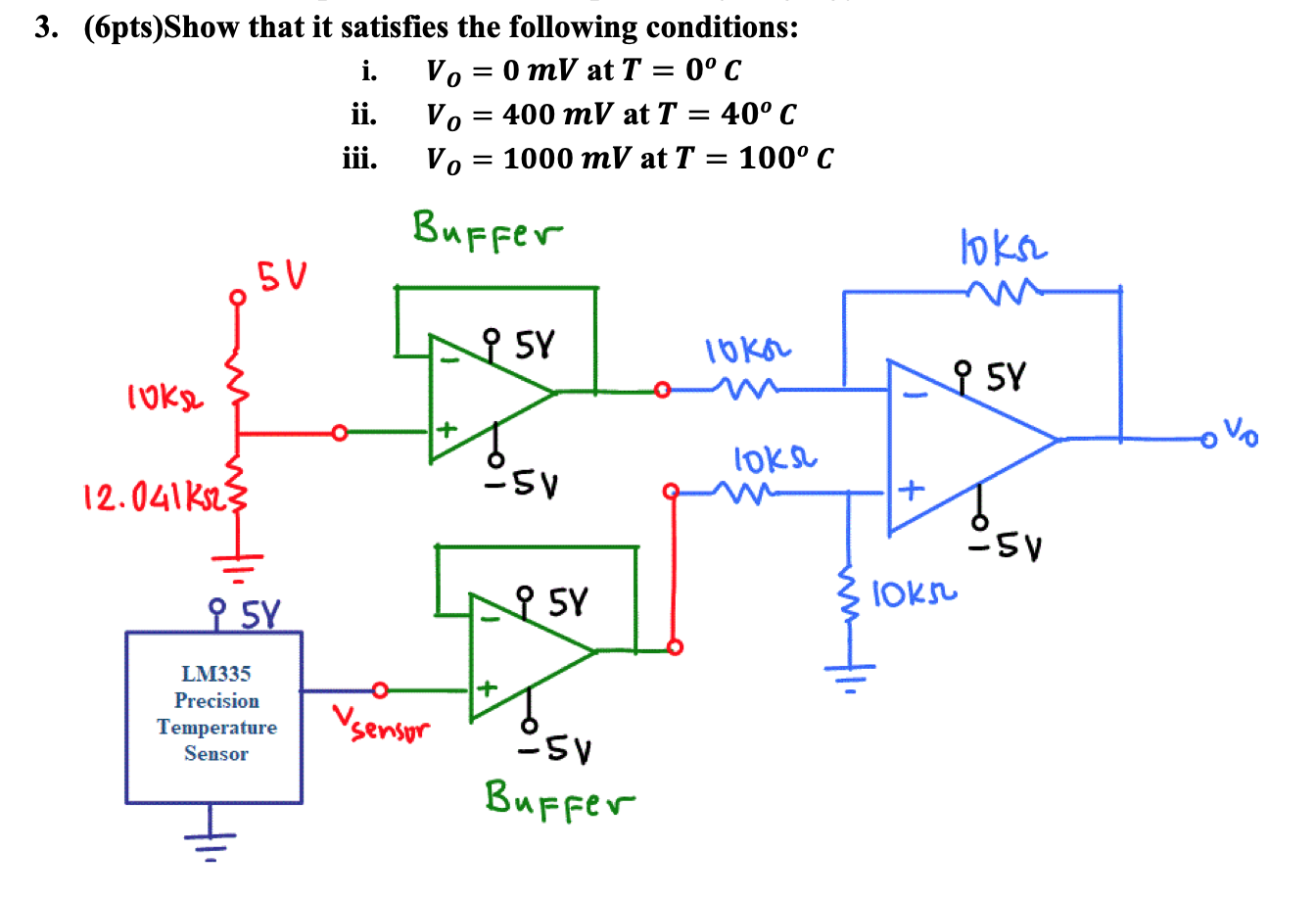

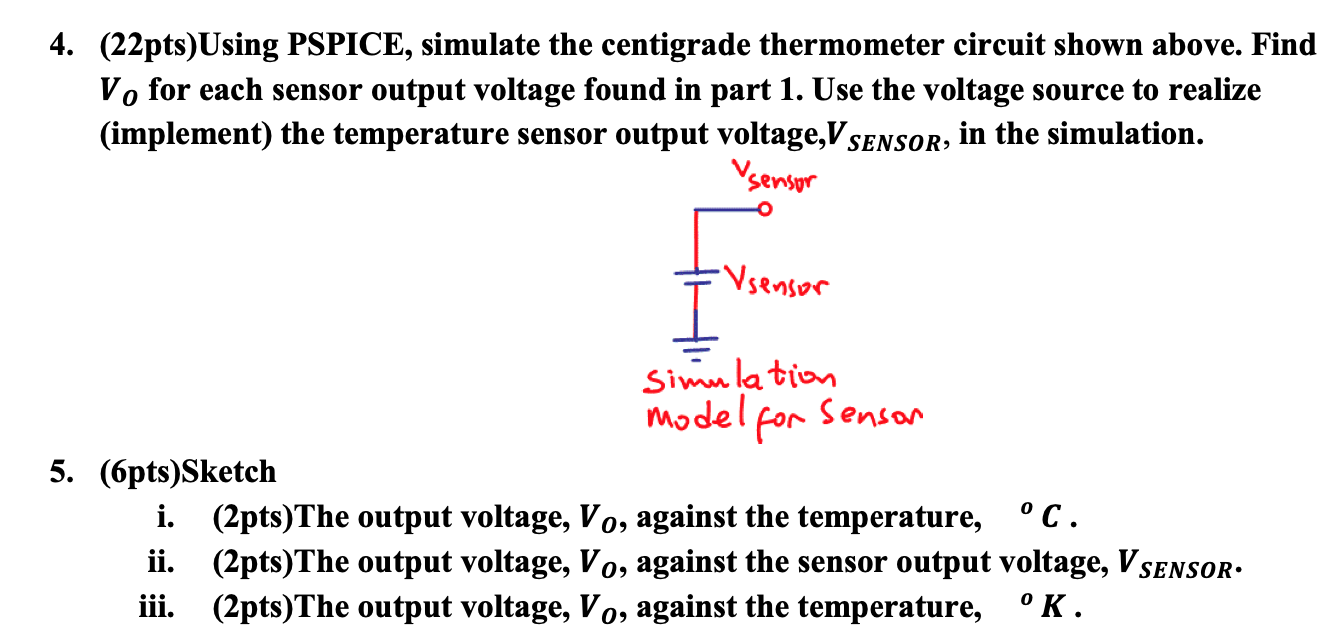

1. (5pts) Find the LM335 Precision Temperature Sensor output voltage, V SENSOR, 9 SY LM335 Precision o V Temperature sensor Sensor - - for the following temperatures: 0° C , 20° C, 40° C, 60° C, 80° C, 100° C 2. (10pts)Derive the output voltage,Vo, of the following centigrade thermometer circuit in terms of the temperature sensor output voltage, V SENSOR. 3. (6pts)Show that it satisfies the following conditions: i. Vo = 0 mV at T = 0° C ii. Vo = 400 mV at T = 40°C iii. Vo = 1000 mV at T = 100° C Buffer 10KS 5V o 9 5Y - 10KOR 9 5Y 10KS - + V2 10KS 12.041ks 5V Q + 01 5V - - 04 SY 10kr i SY LM335 + = Precision Temperature Vsensor o Sensor -5V Buffer - - 4. (22pts) Using PSPICE, simulate the centigrade thermometer circuit shown above. Find Vo for each sensor output voltage found in part 1. Use the voltage source to realize (implement) the temperature sensor output voltage,V SENSOR, in the simulation. V, sensor Vsensor simulation model for Sensor 5. (6pts)Sketch i. (2pts)The output voltage, Vo, against the temperature, °C. ii. (2pts) The output voltage, Vo, against the sensor output voltage, VSENSOR iii. (2pts) The output voltage, Vo, against the temperature, °KK

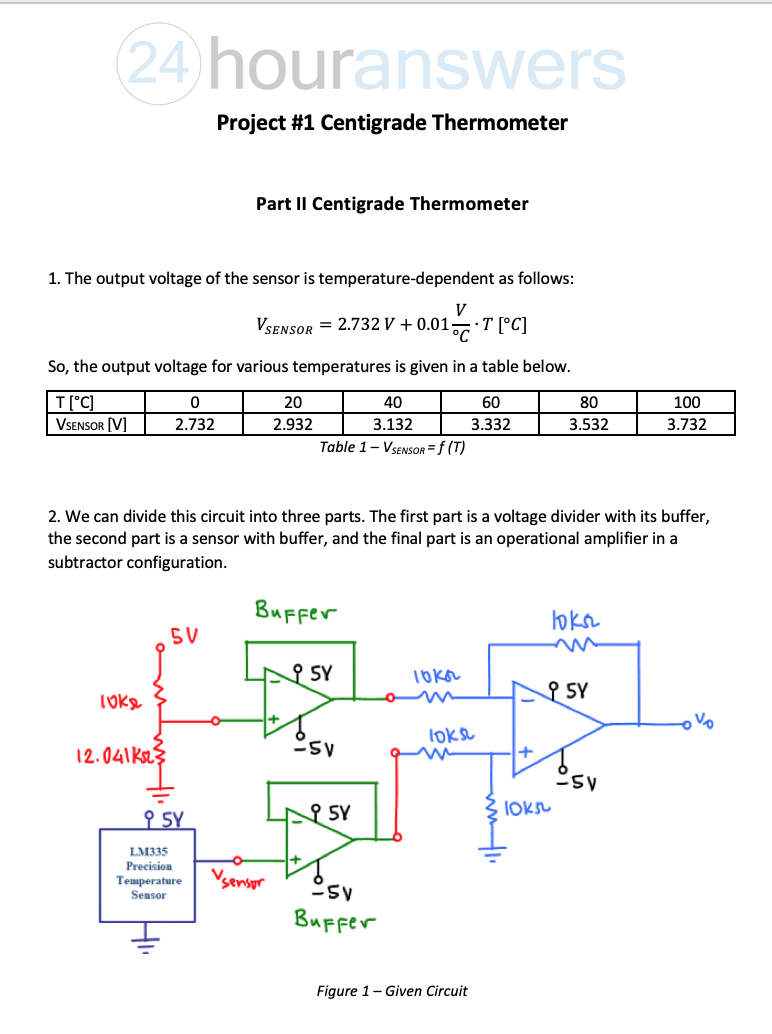

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.docx.

    $88.00
    for this solution

    or FREE if you
    register a new account!

    PayPal, G Pay, ApplePay, Amazon Pay, and all major credit cards accepted.
