QuestionQuestion

Transcribed TextTranscribed Text

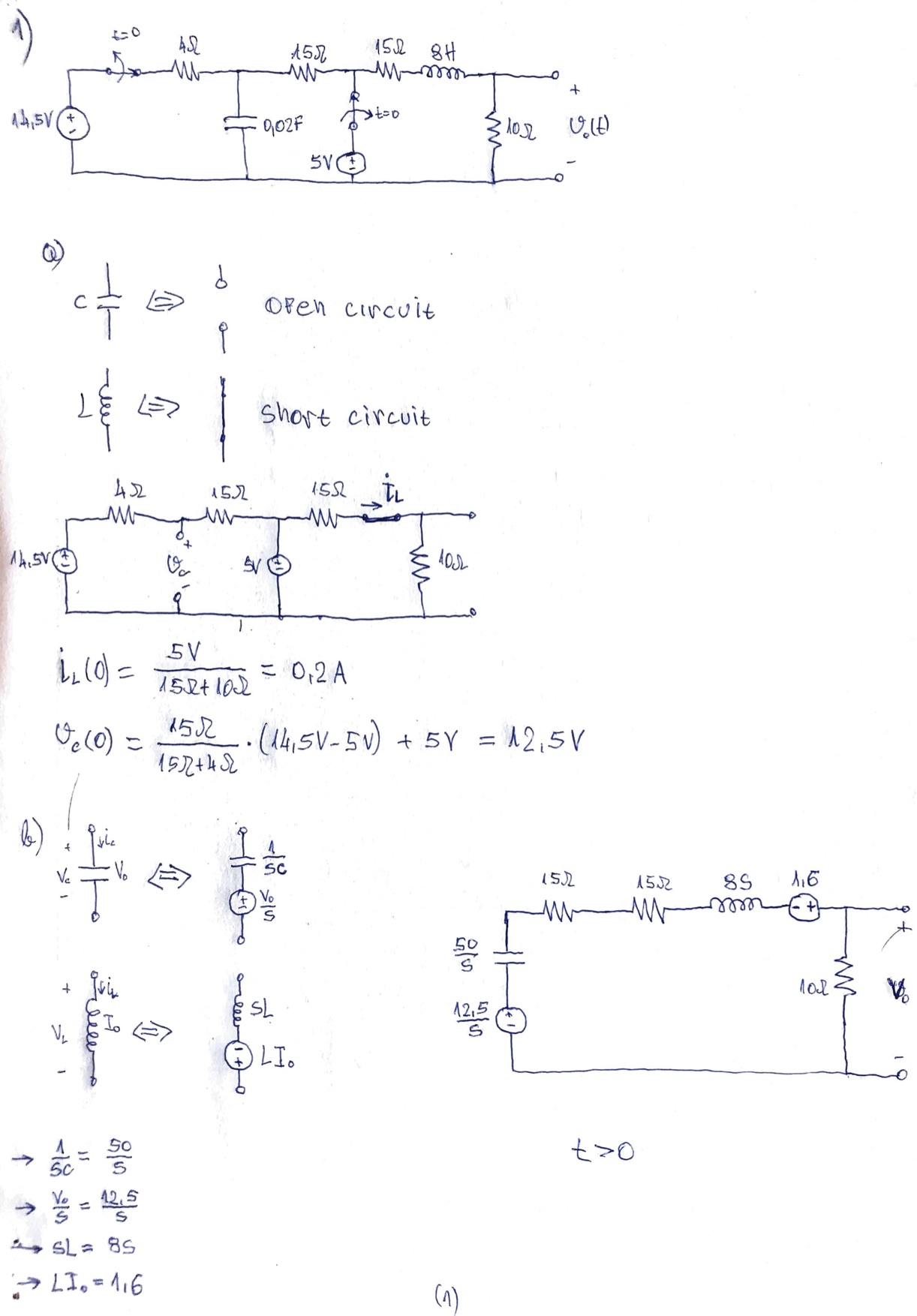

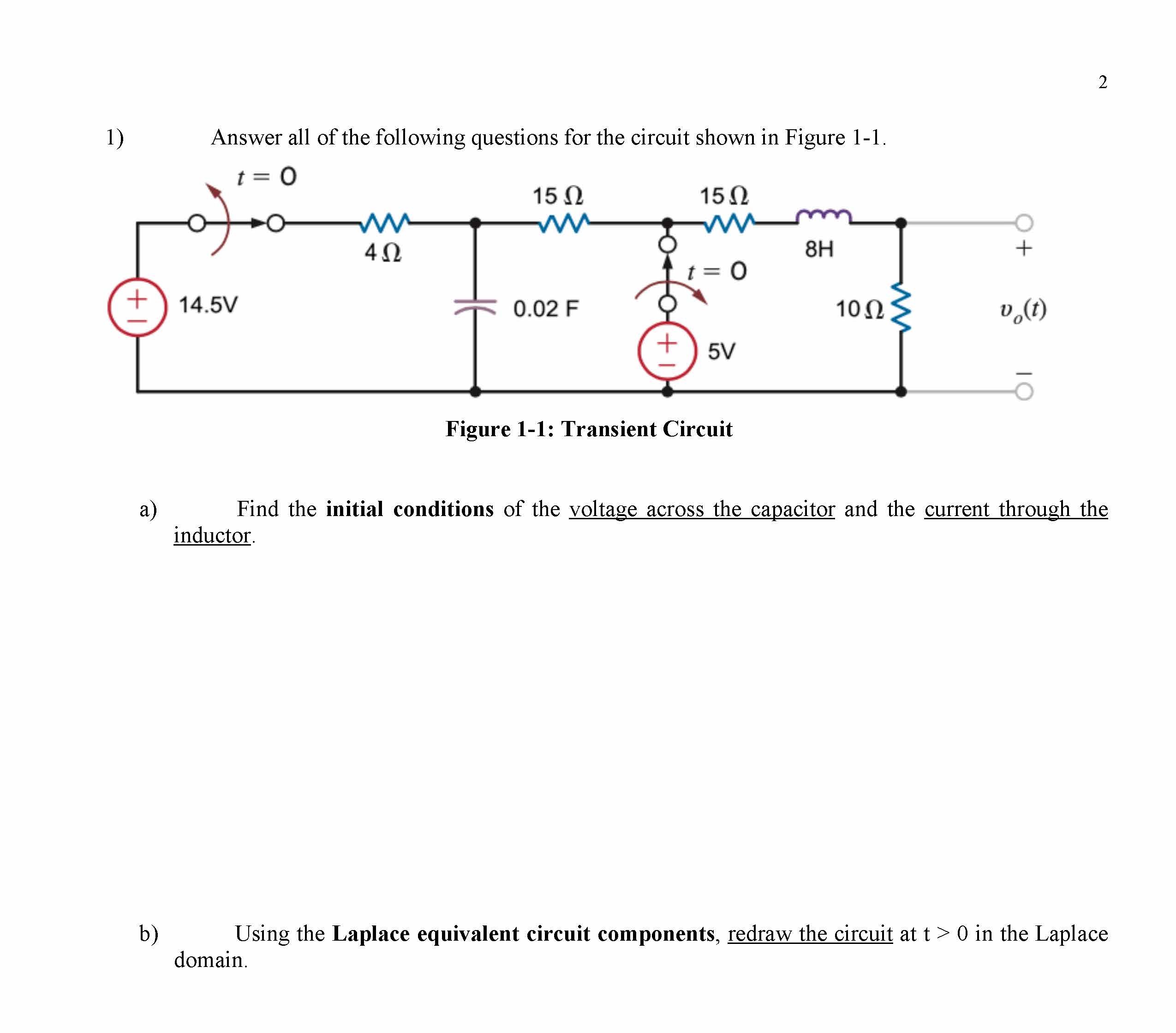

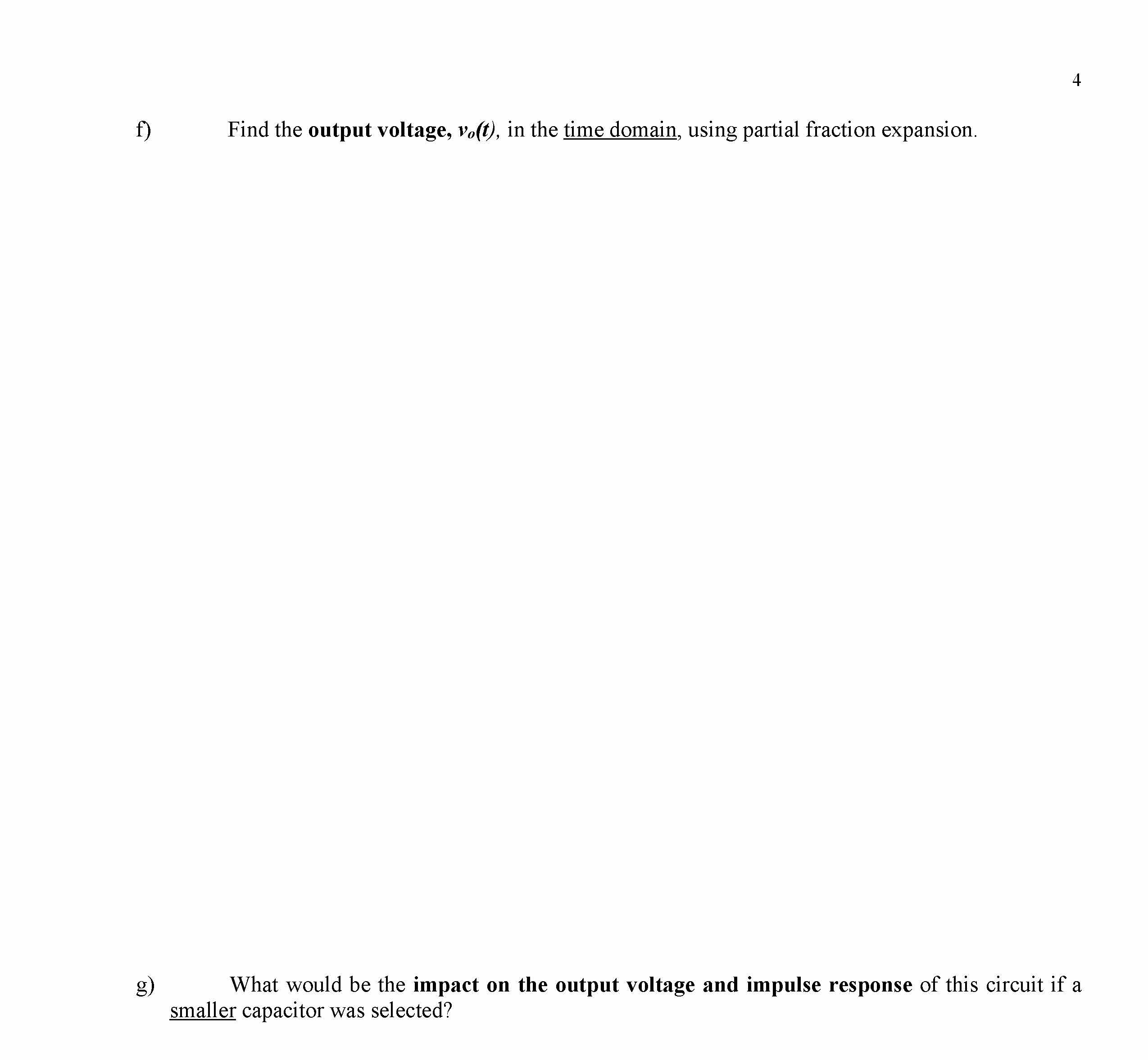

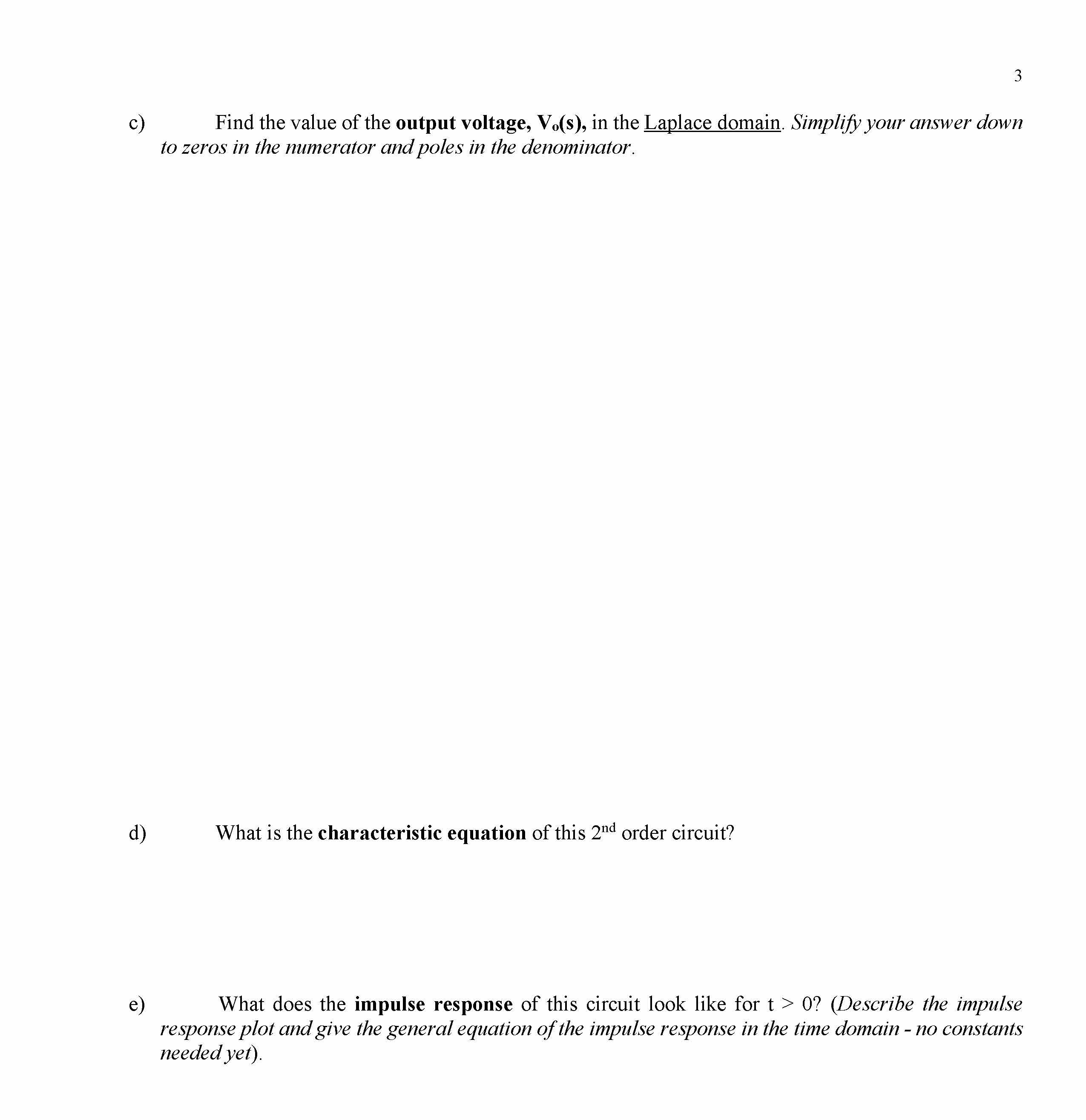

1) Answer allof the following questions for the circuit shown Figure 1-1 1=0 15.0 150 ww vw W 40 8H + 1=0 14.5V - 0.02 F 1001 v_(t) 5V Figure I-1: Transient Circuit a) Find the initial conditions of the voltage across the capacitor and the current through the inductor b) Using the Laplace equivalent circuit components, redraw the circuit att>Ointhe Laplace domain c) Find the value of the output veltage, Vo(s), in the Laplace domain. Simplify your answer down to zeros in the numerator and poles the denominator d) What the characteristic equation of this 2ndorder circuit? e) What does the impulse response of this circuit look like for > 0? (Describe the impulse response plot and give the general equation fthe impulse response the time domain no constants needed yet). f) Find the output veltage, ve(t). using partial fraction expansion g) What would be the impact on the output voltage and impulse response of this circuit if a smaller capacitor was selected?
